Oil cooler failure

OIL COOLER FAILURE

Model

Range Rover B.M.W Diesel Derivatives

Affected vehicles

upto 360751

Date

1997-03-28

Reference

28/03/97

Bulletin text

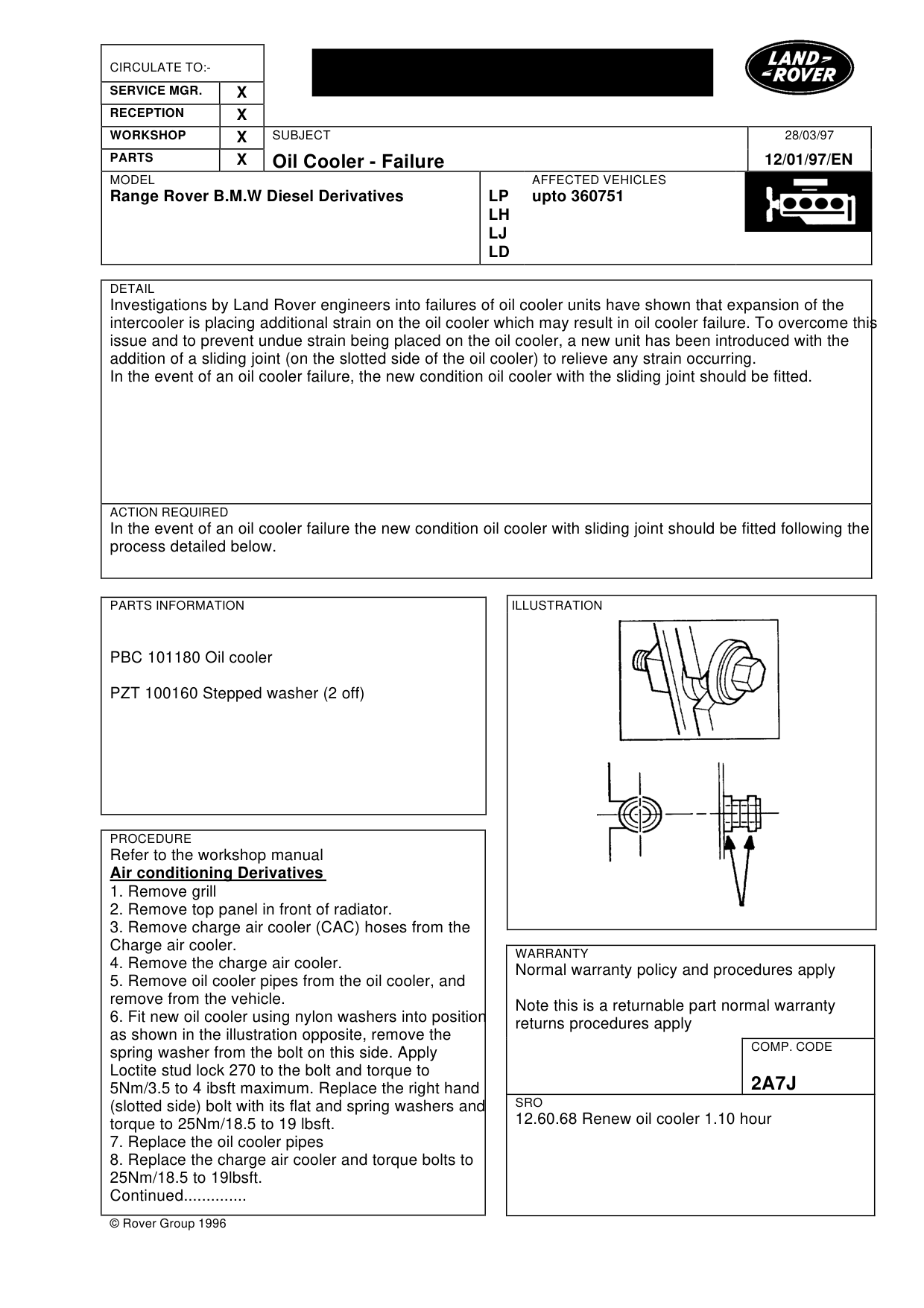

Oil Cooler - Failure

MODEL

Range Rover B.M.W Diesel Derivatives

DETAIL

Investigations by Land Rover engineers into failures of oil cooler units have shown that expansion of the intercooler is placing additional strain on the oil cooler which may result in oil cooler failure. To overcome this issue and to prevent undue strain being placed on the oil cooler, a new unit has been introduced with the addition of a sliding joint (on the slotted side of the oil cooler) to relieve any strain occurring. In the event of an oil cooler failure, the new condition oil cooler with the sliding joint should be fitted.

ACTION REQUIRED

In the event of an oil cooler failure the new condition oil cooler with sliding joint should be fitted following the process detailed below.

PARTS INFORMATION

PBC 101180 Oil cooler

PZT 100160 Stepped washer (2 off)

PROCEDURE

Refer to the workshop manual Air conditioning Derivatives 1. Remove grill 2. Remove top panel in front of radiator. 3. Remove charge air cooler (CAC) hoses from the Charge air cooler. 4. Remove the charge air cooler. 5. Remove oil cooler pipes from the oil cooler, and remove from the vehicle. 6. Fit new oil cooler using nylon washers into position as shown in the illustration opposite, remove the spring washer from the bolt on this side. Apply Loctite stud lock 270 to the bolt and torque to 5Nm/3.5 to 4 ibsft maximum. Replace the right hand (slotted side) bolt with its flat and spring washers and torque to 25Nm/18.5 to 19 lbsft. 7. Replace the oil cooler pipes 8. Replace the charge air cooler and torque bolts to 25Nm/18.5 to 19lbsft. Continued..............

© Rover Group 1996

28/03/97

12/01/97/EN

AFFECTED VEHICLES

LP upto 360751 LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

Note this is a returnable part normal warranty returns procedures apply

COMP. CODE

2A7J

SRO

12.60.68 Renew oil cooler 1.10 hour

Oil Cooler - Failure

MODEL

Range Rover B.M.W Diesel Derivatives

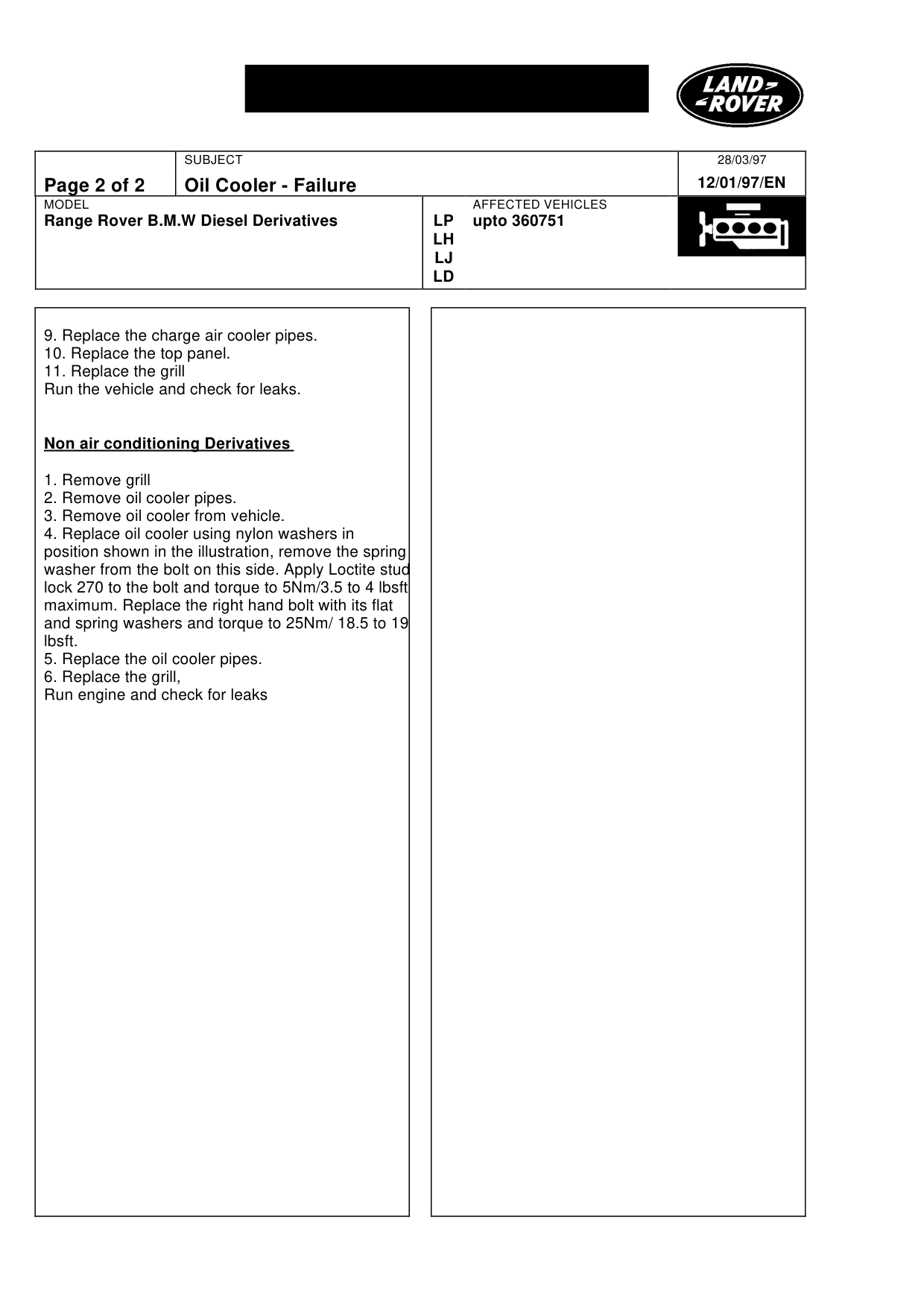

9. Replace the charge air cooler pipes. 10. Replace the top panel. 11. Replace the grill Run the vehicle and check for leaks.

Non air conditioning Derivatives

1. Remove grill 2. Remove oil cooler pipes. 3. Remove oil cooler from vehicle. 4. Replace oil cooler using nylon washers in position shown in the illustration, remove the spring washer from the bolt on this side. Apply Loctite stud lock 270 to the bolt and torque to 5Nm/3.5 to 4 lbsft maximum. Replace the right hand bolt with its flat and spring washers and torque to 25Nm/ 18.5 to 19 lbsft. 5. Replace the oil cooler pipes. 6. Replace the grill, Run engine and check for leaks

28/03/97 12/01/97/EN

AFFECTED VEHICLES

LP upto 360751 LH LJ LD
