After service information card

AFTER SERVICE INFORMATION CARD

Model

New Range Rover

Affected vehicles

All

Date

1996-03-27

Reference

27/03/96

Bulletin text

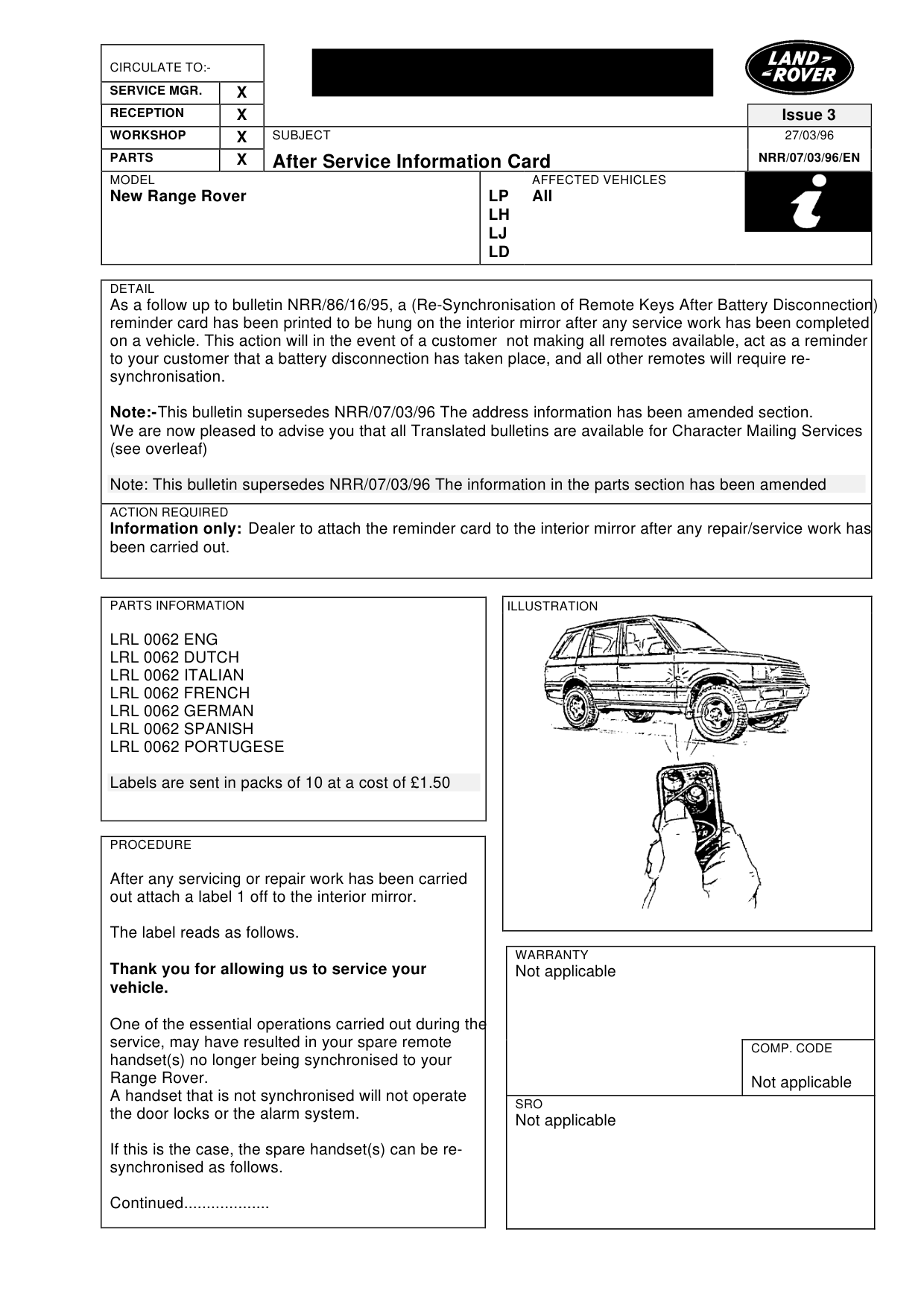

After Service Information Card

MODEL

New Range Rover

DETAIL

As a follow up to bulletin NRR/86/16/95, a (Re-Synchronisation of Remote Keys After Battery Disconnection) reminder card has been printed to be hung on the interior mirror after any service work has been completed on a vehicle. This action will in the event of a customer not making all remotes available, act as a reminder to your customer that a battery disconnection has taken place, and all other remotes will require resynchronisation.

Note:- This bulletin supersedes NRR/07/03/96 The address information has been amended section. We are now pleased to advise you that all Translated bulletins are available for Character Mailing Services (see overleaf)

Note: This bulletin supersedes NRR/07/03/96 The information in the parts section has been amended

ACTION REQUIRED

Information only: Dealer to attach the reminder card to the interior mirror after any repair/service work has been carried out.

PARTS INFORMATION

LRL 0062 ENG LRL 0062 DUTCH LRL 0062 ITALIAN LRL 0062 FRENCH LRL 0062 GERMAN LRL 0062 SPANISH LRL 0062 PORTUGESE

Labels are sent in packs of 10 at a cost of £1.50

PROCEDURE

After any servicing or repair work has been carried out attach a label 1 off to the interior mirror.

The label reads as follows.

Thank you for allowing us to service your vehicle.

One of the essential operations carried out during the service, may have resulted in your spare remote handset(s) no longer being synchronised to your Range Rover. A handset that is not synchronised will not operate the door locks or the alarm system.

If this is the case, the spare handset(s) can be resynchronised as follows.

Continued...................

Issue 3 27/03/96

NRR/07/03/96/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable

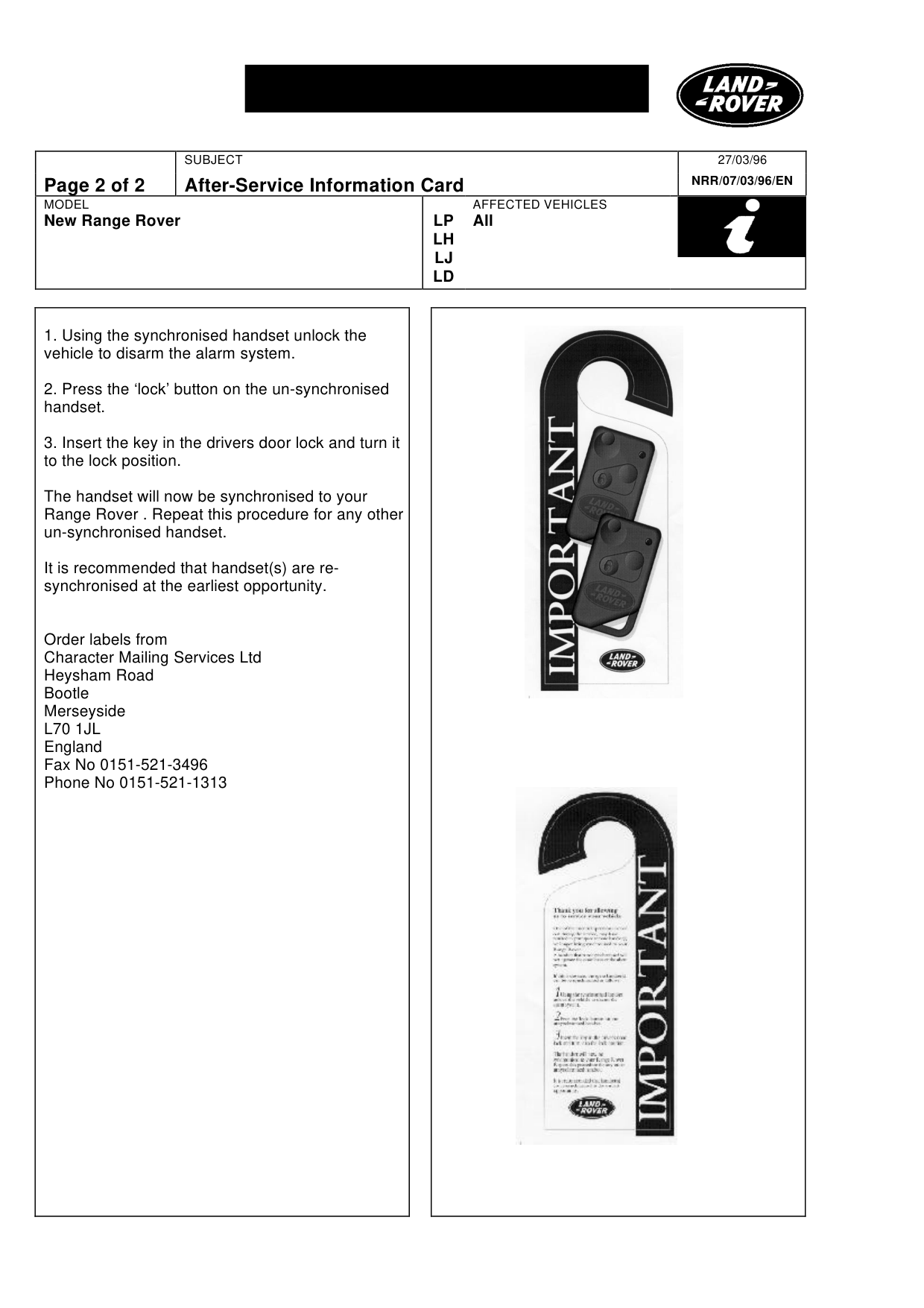

After-Service Information Card

MODEL

New Range Rover

1. Using the synchronised handset unlock the vehicle to disarm the alarm system.

2. Press the ‘lock’ button on the un-synchronised handset.

3. Insert the key in the drivers door lock and turn it to the lock position.

The handset will now be synchronised to your Range Rover . Repeat this procedure for any other un-synchronised handset.

It is recommended that handset(s) are resynchronised at the earliest opportunity.

Order labels from Character Mailing Services Ltd Heysham Road Bootle Merseyside L70 1JL England Fax No 0151-521-3496 Phone No 0151-521-1313

27/03/96 NRR/07/03/96/EN

AFFECTED VEHICLES

LP All LH LJ LD
