Vehicle configuration

VEHICLE CONFIGURATION

Model

New Range Rover Diesel Derivatives

Affected vehicles

316176 Onwards

Date

1996-10-02

Reference

02/10/96

Bulletin text

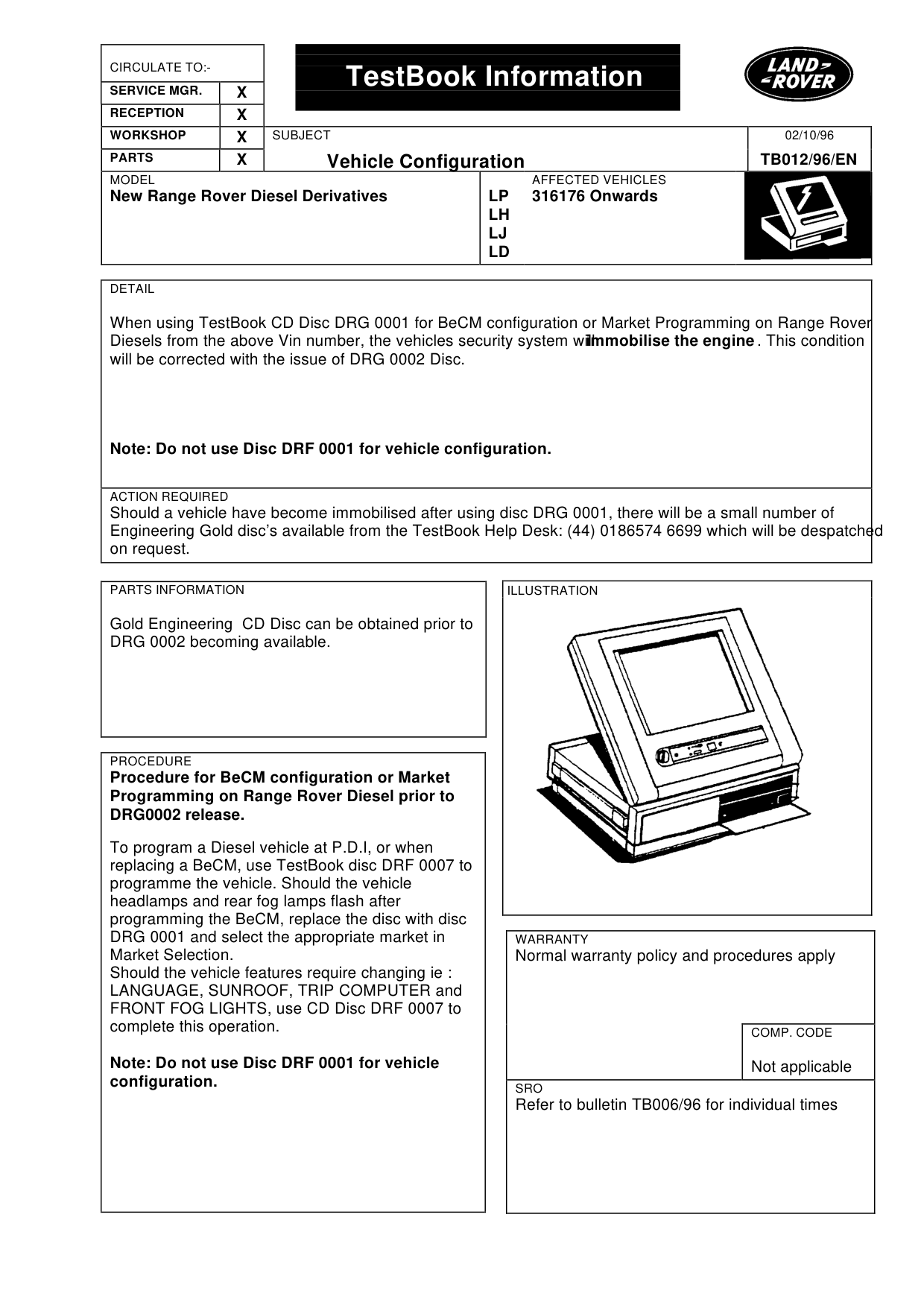

TestBook Information

Vehicle Configuration

MODEL

New Range Rover Diesel Derivatives

DETAIL

When using TestBook CD Disc DRG 0001 for BeCM configuration or Market Programming on Range Rover Diesels from the above Vin number, the vehicles security system will will be corrected with the issue of DRG 0002 Disc.

Note: Do not use Disc DRF 0001 for vehicle configuration.

ACTION REQUIRED

Should a vehicle have become immobilised after using disc DRG 0001, there will be a small number of Engineering Gold disc’s available from the TestBook Help Desk: (44) 0186574 6699 which will be despatched on request.

PARTS INFORMATION

Gold Engineering CD Disc can be obtained prior to DRG 0002 becoming available.

PROCEDURE

Procedure for BeCM configuration or Market Programming on Range Rover Diesel prior to DRG0002 release.

To program a Diesel vehicle at P.D.I, or when replacing a BeCM, use TestBook disc DRF 0007 to programme the vehicle. Should the vehicle headlamps and rear fog lamps flash after programming the BeCM, replace the disc with disc DRG 0001 and select the appropriate market in Market Selection. Should the vehicle features require changing ie : LANGUAGE, SUNROOF, TRIP COMPUTER and FRONT FOG LIGHTS, use CD Disc DRF 0007 to complete this operation.

Note: Do not use Disc DRF 0001 for vehicle configuration.

02/10/96

TB012/96/EN

AFFECTED VEHICLES

LP 316176 Onwards LH LJ LD

immobilise the engine . This condition

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

Not applicable

SRO

Refer to bulletin TB006/96 for individual times
