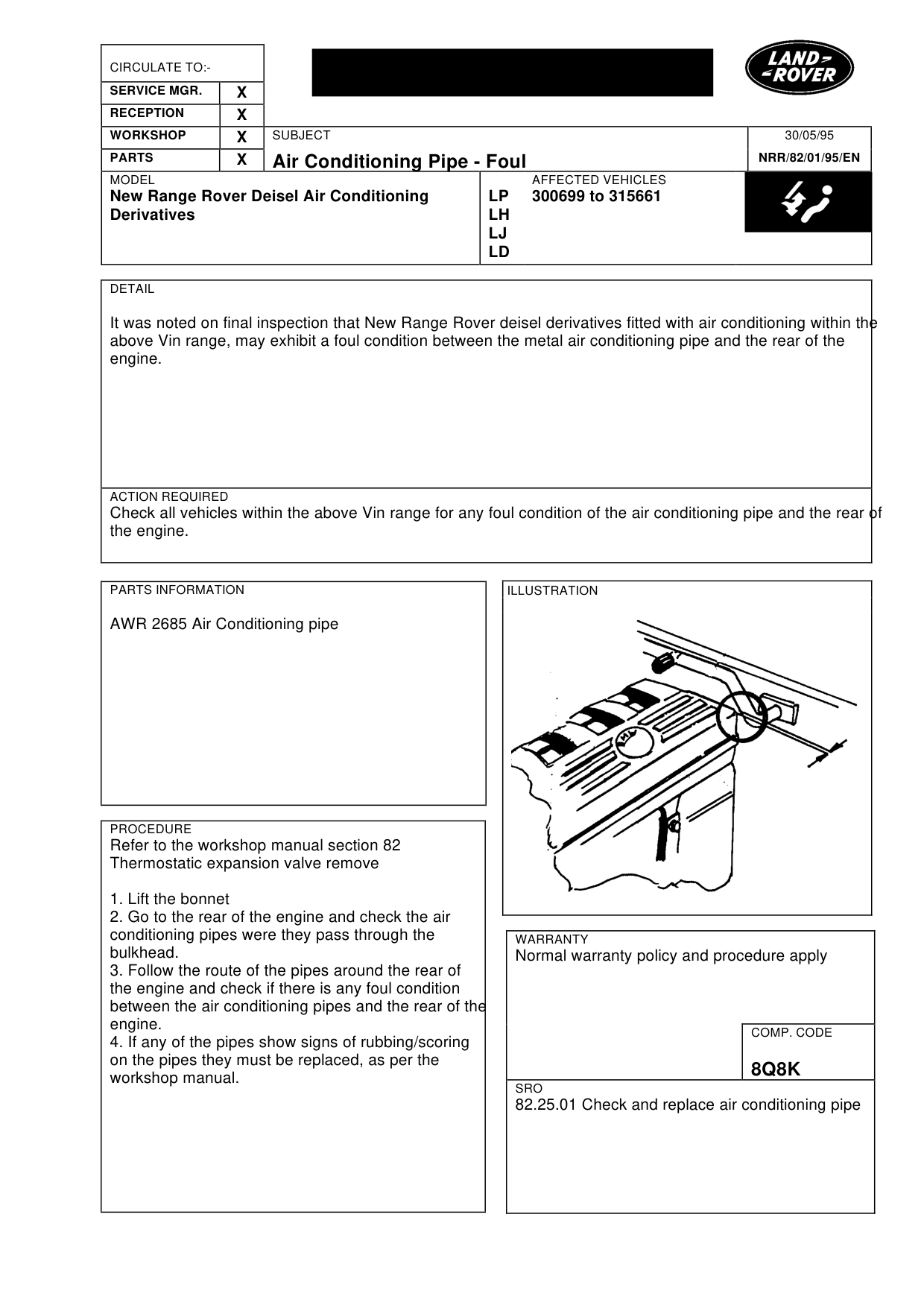

Air conditioning pipe - foul

AIR CONDITIONING PIPE - FOUL

Model

New Range Rover Deisel Air Conditioning Derivatives

Affected vehicles

300699 to 315661

Date

1995-05-30

Reference

30/05/95

Bulletin text

Air Conditioning Pipe - Foul

MODEL

New Range Rover Deisel Air Conditioning Derivatives

DETAIL

It was noted on final inspection that New Range Rover deisel derivatives fitted with air conditioning within the above Vin range, may exhibit a foul condition between the metal air conditioning pipe and the rear of the engine.

ACTION REQUIRED

Check all vehicles within the above Vin range for any foul condition of the air conditioning pipe and the rear of the engine.

PARTS INFORMATION

AWR 2685 Air Conditioning pipe

PROCEDURE

Refer to the workshop manual section 82 Thermostatic expansion valve remove

1. Lift the bonnet 2. Go to the rear of the engine and check the air conditioning pipes were they pass through the bulkhead. 3. Follow the route of the pipes around the rear of the engine and check if there is any foul condition between the air conditioning pipes and the rear of the engine. 4. If any of the pipes show signs of rubbing/scoring on the pipes they must be replaced, as per the workshop manual.

30/05/95

NRR/82/01/95/EN

AFFECTED VEHICLES

LP 300699 to 315661 LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

8Q8K

SRO

82.25.01 Check and replace air conditioning pipe
