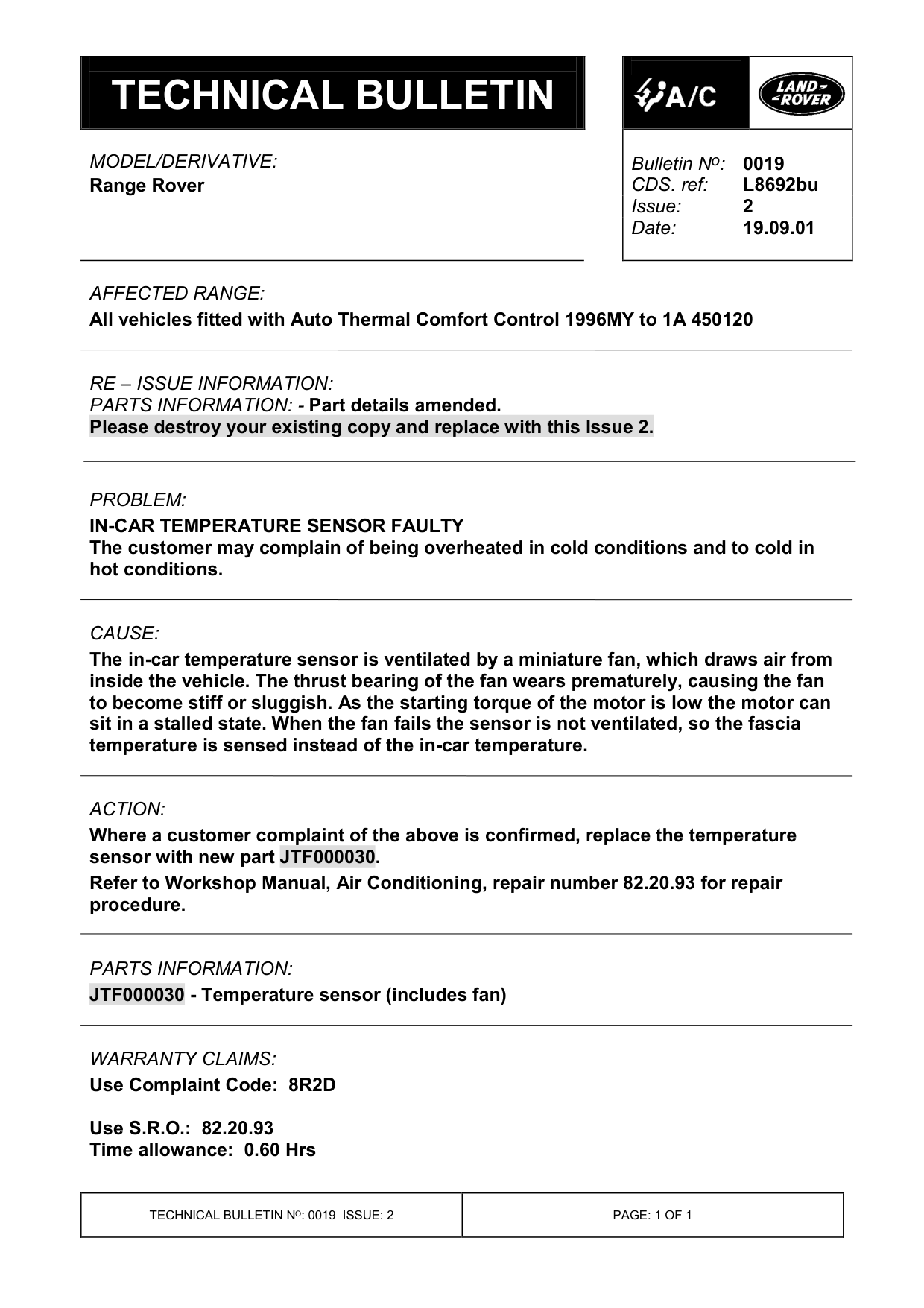

In-car temperature sensor faulty

IN-CAR TEMPERATURE SENSOR FAULTY

Model

Range Rover

Affected vehicles

All vehicles fitted with Auto Thermal Comfort Control 1996MY to 1A 450120 RE – ISSUE INFORMATION: PARTS INFORMATION: - Part details amended. Please destroy your existing copy and replace with this Issue 2.

Date

2001-09-19

Reference

Bulletin 0019, CDS ref L8692bu

Bulletin text

Range Rover

AFFECTED RANGE:

All vehicles fitted with Auto Thermal Comfort Control 1996MY to 1A 450120

RE - ISSUE INFORMATION: PARTS INFORMATION: - Part details amended. Please destroy your existing copy and replace with this Issue 2.

PROBLEM:

IN-CAR TEMPERATURE SENSOR FAULTY The customer may complain of being overheated in cold conditions and to cold in hot conditions.

CAUSE:

The in-car temperature sensor is ventilated by a miniature fan, which draws air from inside the vehicle. The thrust bearing of the fan wears prematurely, causing the fan to become stiff or sluggish. As the starting torque of the motor is low the motor can sit in a stalled state. When the fan fails the sensor is not ventilated, so the fascia temperature is sensed instead of the in-car temperature.

ACTION:

Where a customer complaint of the above is confirmed, replace the temperature sensor with new part JTF000030. Refer to Workshop Manual, Air Conditioning, repair number 82.20.93 for repair procedure.

PARTS INFORMATION:

JTF000030 - Temperature sensor (includes fan)

WARRANTY CLAIMS: Use Complaint Code: 8R2D

Use S.R.O.: 82.20.93 Time allowance: 0.60 Hrs

Bulletin N o : 0019
