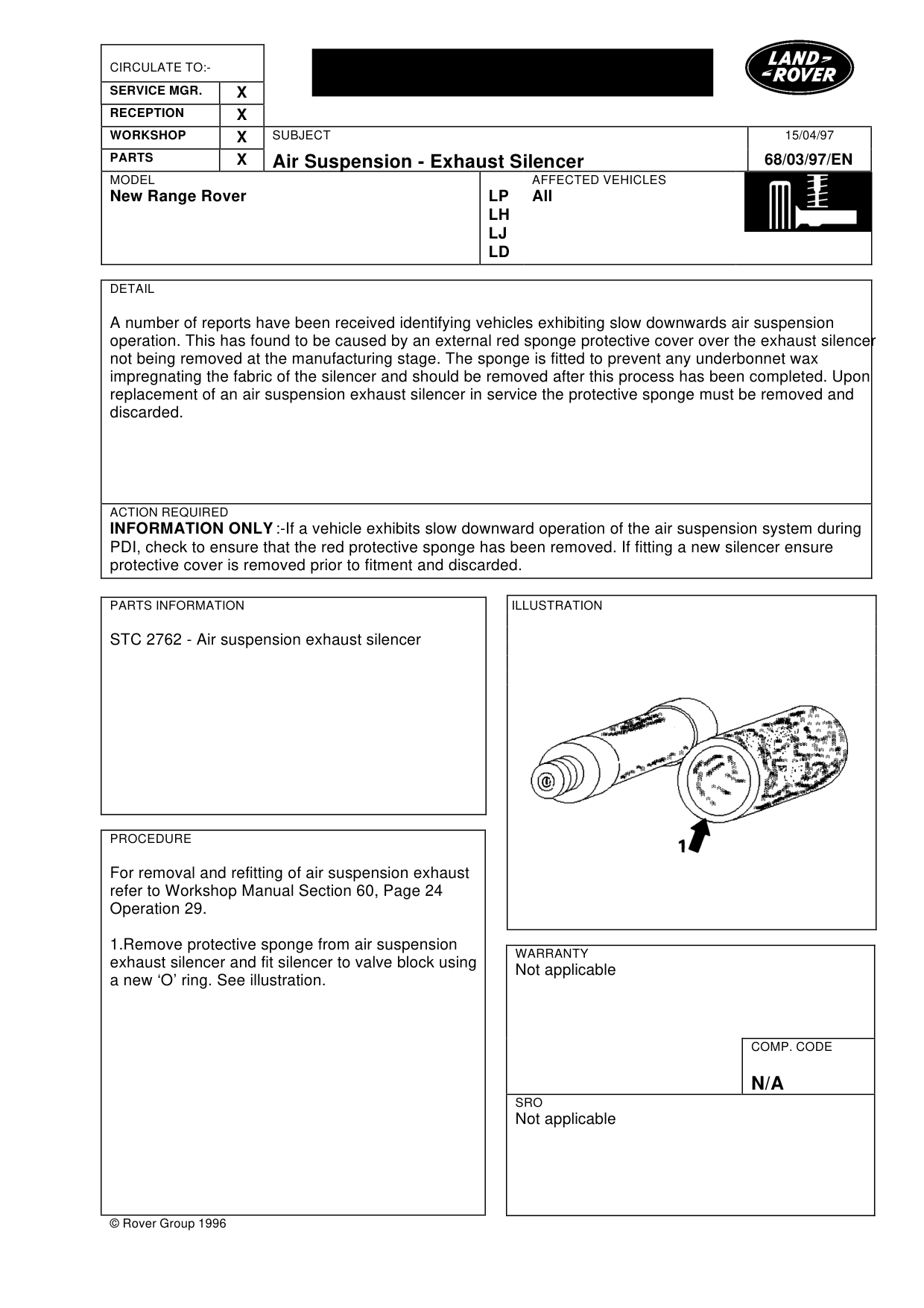

Air suspension exhaust silencer

AIR SUSPENSION EXHAUST SILENCER

Model

New Range Rover

Affected vehicles

All

Date

1997-04-15

Reference

15/04/97

Bulletin text

Air Suspension - Exhaust Silencer

MODEL

New Range Rover

DETAIL

A number of reports have been received identifying vehicles exhibiting slow downwards air suspension operation. This has found to be caused by an external red sponge protective cover over the exhaust silencer not being removed at the manufacturing stage. The sponge is fitted to prevent any underbonnet wax impregnating the fabric of the silencer and should be removed after this process has been completed. Upon replacement of an air suspension exhaust silencer in service the protective sponge must be removed and discarded.

ACTION REQUIRED

INFORMATION ONLY :-If a vehicle exhibits slow downward operation of the air suspension system during PDI, check to ensure that the red protective sponge has been removed. If fitting a new silencer ensure protective cover is removed prior to fitment and discarded.

PARTS INFORMATION

STC 2762 - Air suspension exhaust silencer

PROCEDURE

For removal and refitting of air suspension exhaust refer to Workshop Manual Section 60, Page 24 Operation 29.

1.Remove protective sponge from air suspension exhaust silencer and fit silencer to valve block using a new ‘O’ ring. See illustration.

© Rover Group 1996

15/04/97

68/03/97/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Not applicable

COMP. CODE

N/A

SRO

Not applicable
