Navigational system - inaccurate

NAVIGATIONAL SYSTEM - INACCURATE

Model

Range Rover P38

Reference

Service action 214

Bulletin text

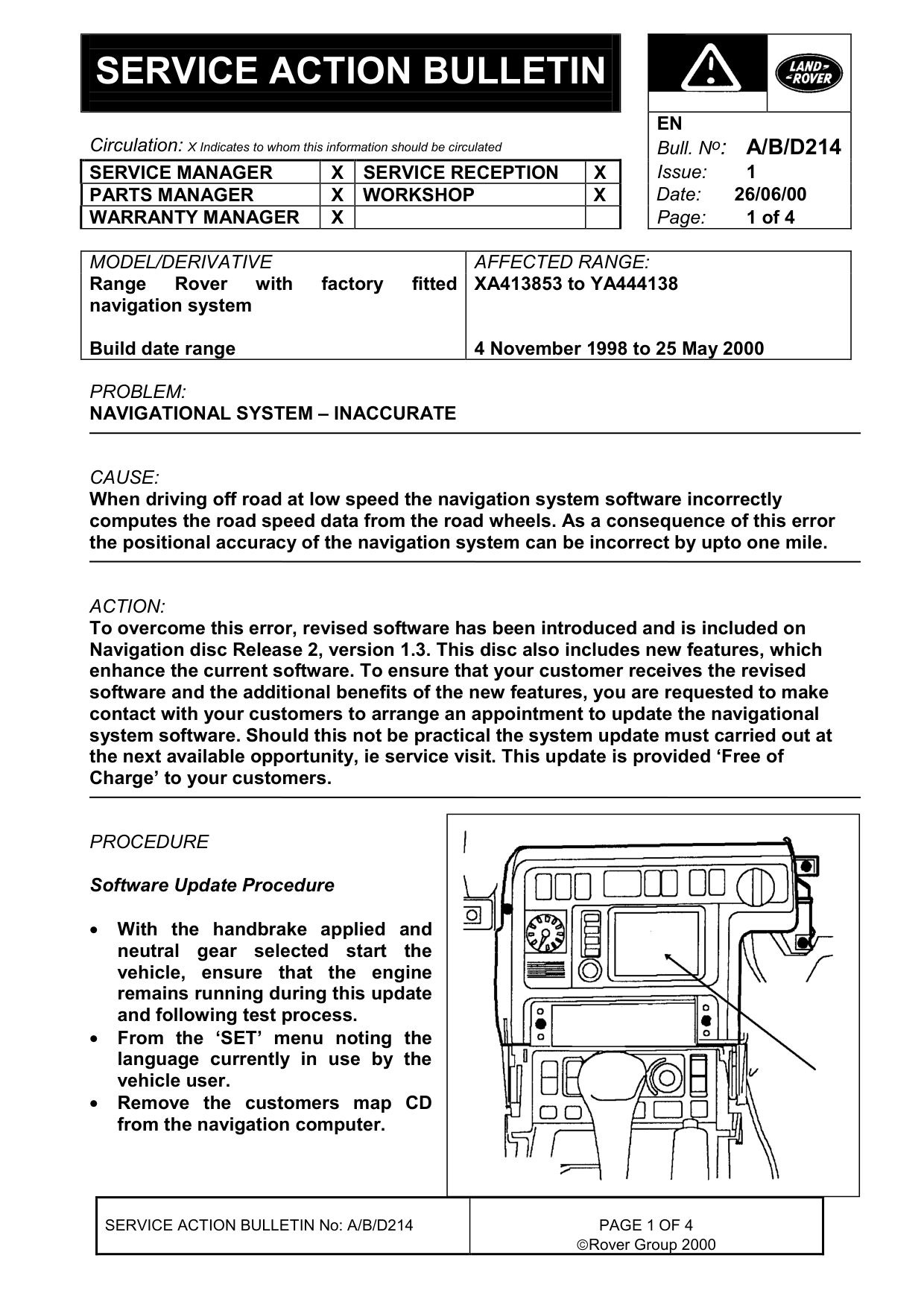

SERVICE ACTION BULLETIN

Circulation: X Indicates to whom this information should be circulated SERVICE MANAGER X SERVICE RECEPTION PARTS MANAGER WARRANTY MANAGER

Range Rover with factory fitted navigation system

Build date range

PROBLEM:

NAVIGATIONAL SYSTEM - INACCURATE

CAUSE:

When driving off road at low speed the navigation system software incorrectly computes the road speed data from the road wheels. As a consequence of this error the positional accuracy of the navigation system can be incorrect by upto one mile.

ACTION:

To overcome this error, revised software has been introduced and is included on Navigation disc Release 2, version 1.3. This disc also includes new features, which enhance the current software. To ensure that your customer receives the revised software and the additional benefits of the new features, you are requested to make contact with your customers to arrange an appointment to update the navigational system software. Should this not be practical the system update must carried out at the next available opportunity, ie service visit. This update is provided ‘Free of Charge’ to your customers.

PROCEDURE

Software Update Procedure

• With the handbrake applied and neutral gear selected start the vehicle, ensure that the engine remains running during this update and following test process. • From the ‘SET’ menu noting the language currently in use by the vehicle user. • Remove the customers map CD from the navigation computer.

SERVICE ACTION BULLETIN No: A/B/D214

EN Bull. N o : A/B/D214

AFFECTED RANGE:

XA413853 to YA444138

4 November 1998 to 25 May 2000

Rover Group 2000

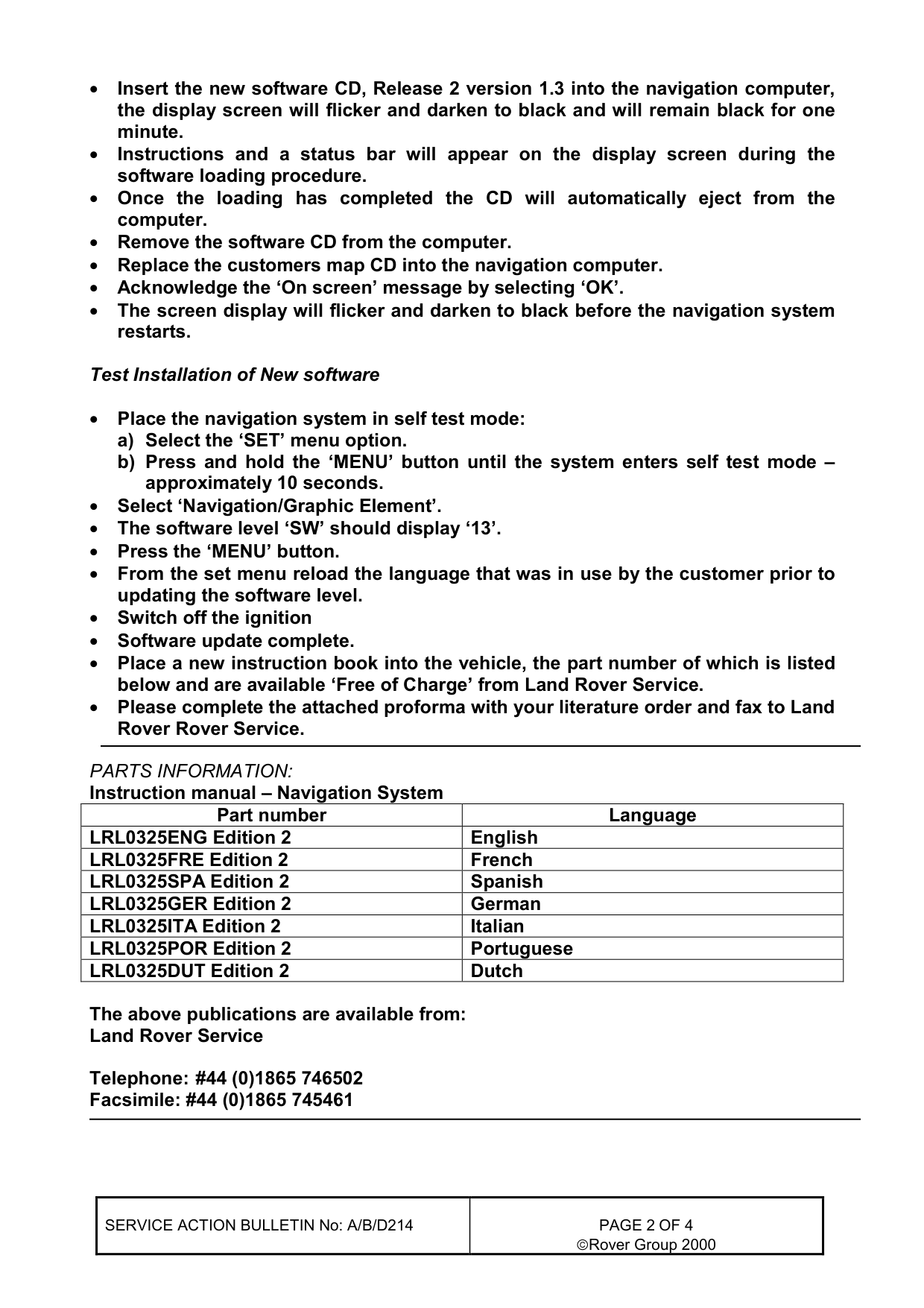

• Insert the new software CD, Release 2 version 1.3 into the navigation computer, the display screen will flicker and darken to black and will remain black for one minute. • Instructions and a status bar will appear on the display screen during the software loading procedure. • Once the loading has completed the CD will automatically eject from the computer. • Remove the software CD from the computer. • Replace the customers map CD into the navigation computer. • Acknowledge the ‘On screen’ message by selecting ‘OK’. • The screen display will flicker and darken to black before the navigation system restarts.

Test Installation of New software

• Place the navigation system in self test mode: a) Select the ‘SET’ menu option. b) Press and hold the ‘MENU’ button until the system enters self test mode - approximately 10 seconds. • Select ‘Navigation/Graphic Element’. • The software level ‘SW’ should display ‘13’. • Press the ‘MENU’ button. • From the set menu reload the language that was in use by the customer prior to updating the software level. • Switch off the ignition • Software update complete. • Place a new instruction book into the vehicle, the part number of which is listed below and are available ‘Free of Charge’ from Land Rover Service. • Please complete the attached proforma with your literature order and fax to Land Rover Rover Service.

PARTS INFORMATION:

Instruction manual - Navigation System Part number LRL0325ENG Edition 2 LRL0325FRE Edition 2 LRL0325SPA Edition 2 LRL0325GER Edition 2 LRL0325ITA Edition 2 LRL0325POR Edition 2 LRL0325DUT Edition 2

The above publications are available from: Land Rover Service

Telephone: #44 (0)1865 746502 Facsimile: #44 (0)1865 745461

SERVICE ACTION BULLETIN No: A/B/D214

Language

French Spanish German Italian Portuguese Dutch

Rover Group 2000

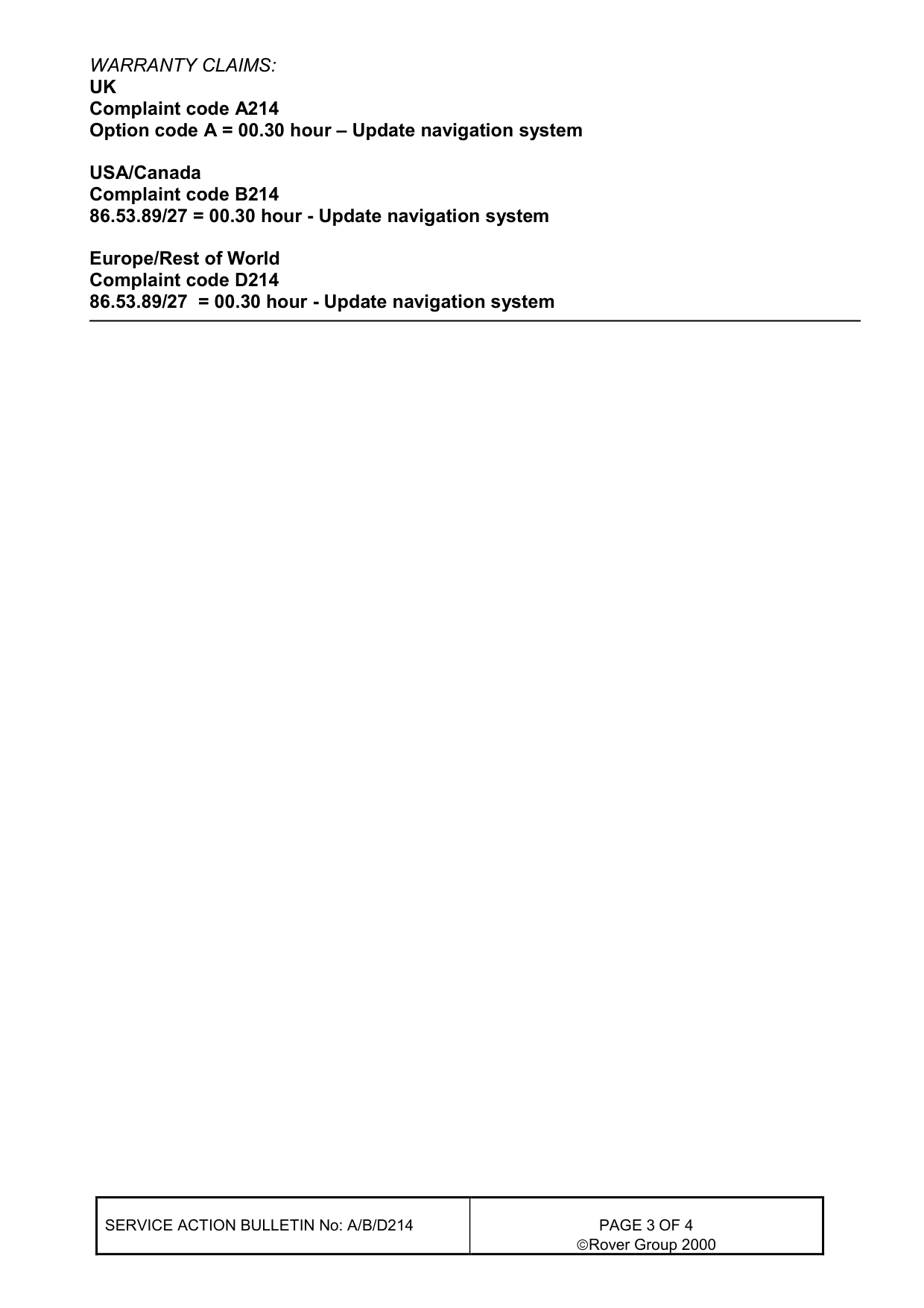

WARRANTY CLAIMS: UK Complaint code A214 Option code A = 00.30 hour - Update navigation system

USA/Canada Complaint code B214 86.53.89/27 = 00.30 hour - Update navigation system

Europe/Rest of World Complaint code D214 86.53.89/27 = 00.30 hour - Update navigation system

SERVICE ACTION BULLETIN No: A/B/D214
Rover Group 2000

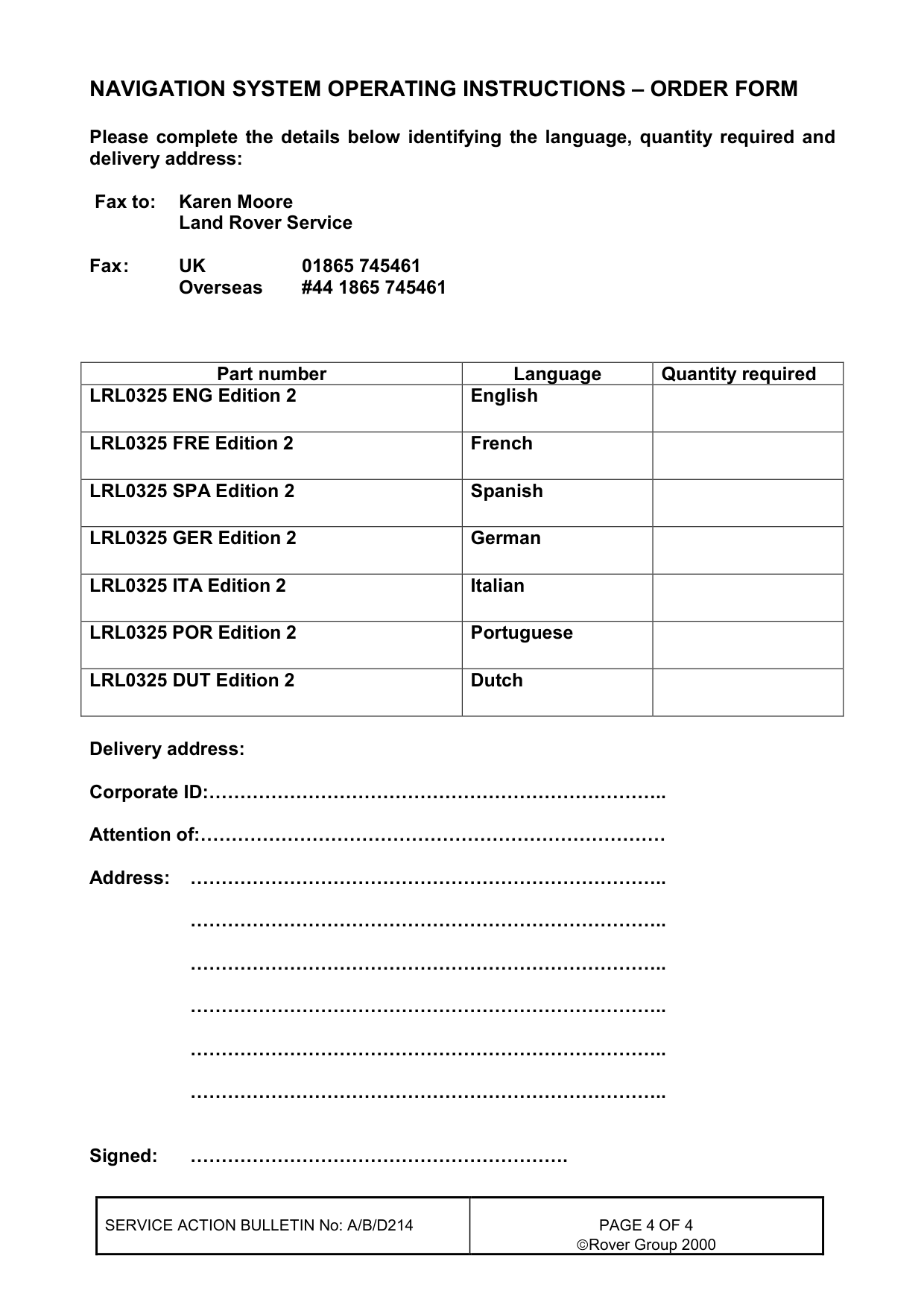

NAVIGATION SYSTEM OPERATING INSTRUCTIONS - ORDER FORM

Please complete the details below identifying the language, quantity required and delivery address:

Fax to: Karen Moore Land Rover Service

Fax : UK 01865 745461 Overseas #44 1865 745461

Part number LRL0325 ENG Edition 2

LRL0325 FRE Edition 2

LRL0325 SPA Edition 2

LRL0325 GER Edition 2

LRL0325 ITA Edition 2

LRL0325 POR Edition 2

LRL0325 DUT Edition 2

Delivery address:

Corporate ID:………………………………………………………………..

Attention of:…………………………………………………………………

Address: …………………………………………………………………..

…………………………………………………………………..

…………………………………………………………………..

…………………………………………………………………..

…………………………………………………………………..

…………………………………………………………………..

Signed: …………………………………………………….

SERVICE ACTION BULLETIN No: A/B/D214

Language Quantity required

French

Spanish

German

Italian

Portuguese

Dutch

Rover Group 2000
