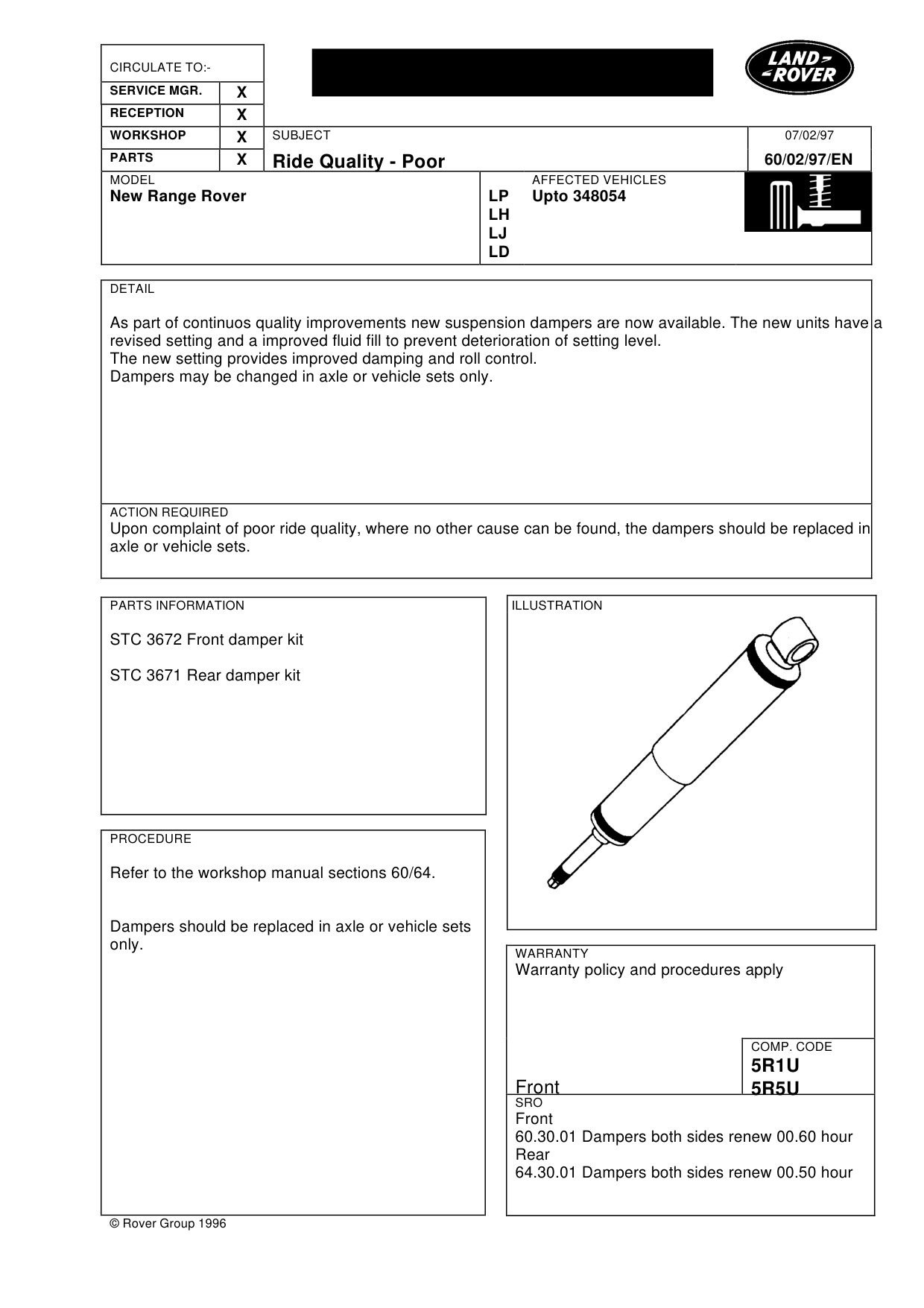

Ride quality poor

RIDE QUALITY POOR

Model

New Range Rover

Affected vehicles

Upto 348054

Date

1997-02-07

Reference

07/02/97

Bulletin text

Ride Quality - Poor

MODEL

New Range Rover

DETAIL

As part of continuos quality improvements new suspension dampers are now available. The new units have a revised setting and a improved fluid fill to prevent deterioration of setting level. The new setting provides improved damping and roll control. Dampers may be changed in axle or vehicle sets only.

ACTION REQUIRED

Upon complaint of poor ride quality, where no other cause can be found, the dampers should be replaced in axle or vehicle sets.

PARTS INFORMATION

STC 3672 Front damper kit

STC 3671 Rear damper kit

PROCEDURE

Refer to the workshop manual sections 60/64.

Dampers should be replaced in axle or vehicle sets only.

© Rover Group 1996

07/02/97

60/02/97/EN

AFFECTED VEHICLES

LP Upto 348054 LH LJ LD

WARRANTY

Warranty policy and procedures apply

COMP. CODE

5R1U Front 5R5U

SRO

Front 60.30.01 Dampers both sides renew 00.60 hour Rear 64.30.01 Dampers both sides renew 00.50 hour
