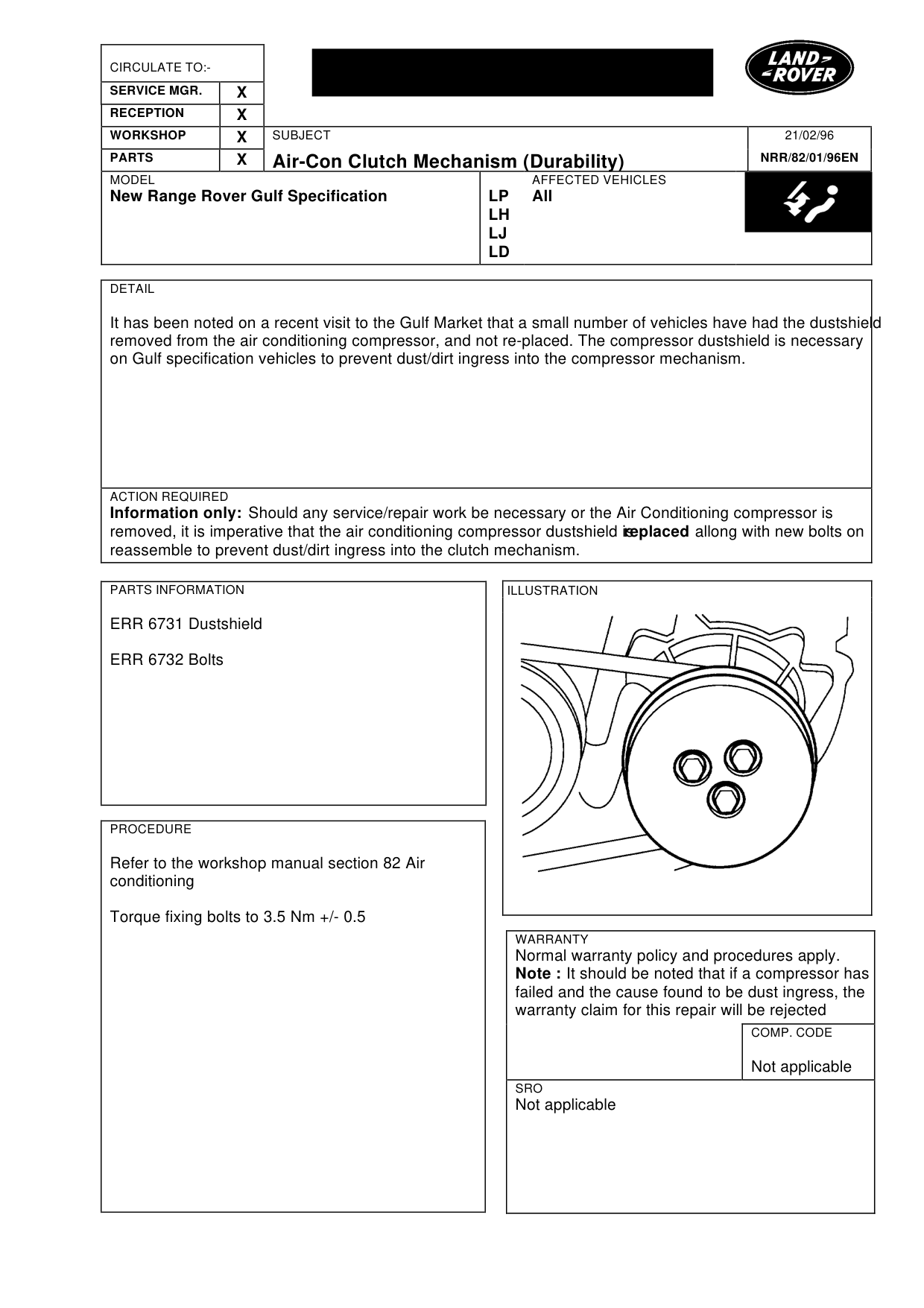

Air -conditioning clutch mechanism (durability)

AIR -CONDITIONING CLUTCH MECHANISM (DURABILITY)

Model

New Range Rover Gulf Specification

Affected vehicles

All

Date

1996-02-21

Reference

21/02/96

Bulletin text

Air-Con Clutch Mechanism (Durability)

MODEL

New Range Rover Gulf Specification

DETAIL

It has been noted on a recent visit to the Gulf Market that a small number of vehicles have had the dustshield removed from the air conditioning compressor, and not re-placed. The compressor dustshield is necessary on Gulf specification vehicles to prevent dust/dirt ingress into the compressor mechanism.

ACTION REQUIRED

Information only: Should any service/repair work be necessary or the Air Conditioning compressor is removed, it is imperative that the air conditioning compressor dustshield is reassemble to prevent dust/dirt ingress into the clutch mechanism.

PARTS INFORMATION

ERR 6731 Dustshield

ERR 6732 Bolts

PROCEDURE

Refer to the workshop manual section 82 Air conditioning

Torque fixing bolts to 3.5 Nm +/- 0.5

21/02/96

NRR/82/01/96EN

AFFECTED VEHICLES

LP All LH LJ LD

replaced allong with new bolts on

WARRANTY

Normal warranty policy and procedures apply. Note : It should be noted that if a compressor has failed and the cause found to be dust ingress, the warranty claim for this repair will be rejected

COMP. CODE

Not applicable

SRO

Not applicable
