Automatic gear selector detent cover cracked

AUTOMATIC GEAR SELECTOR DETENT COVER CRACKED

Model

New Range Rover all Automatic Derivatives

Affected vehicles

All

Date

1995-08-02

Reference

02/08/95

Bulletin text

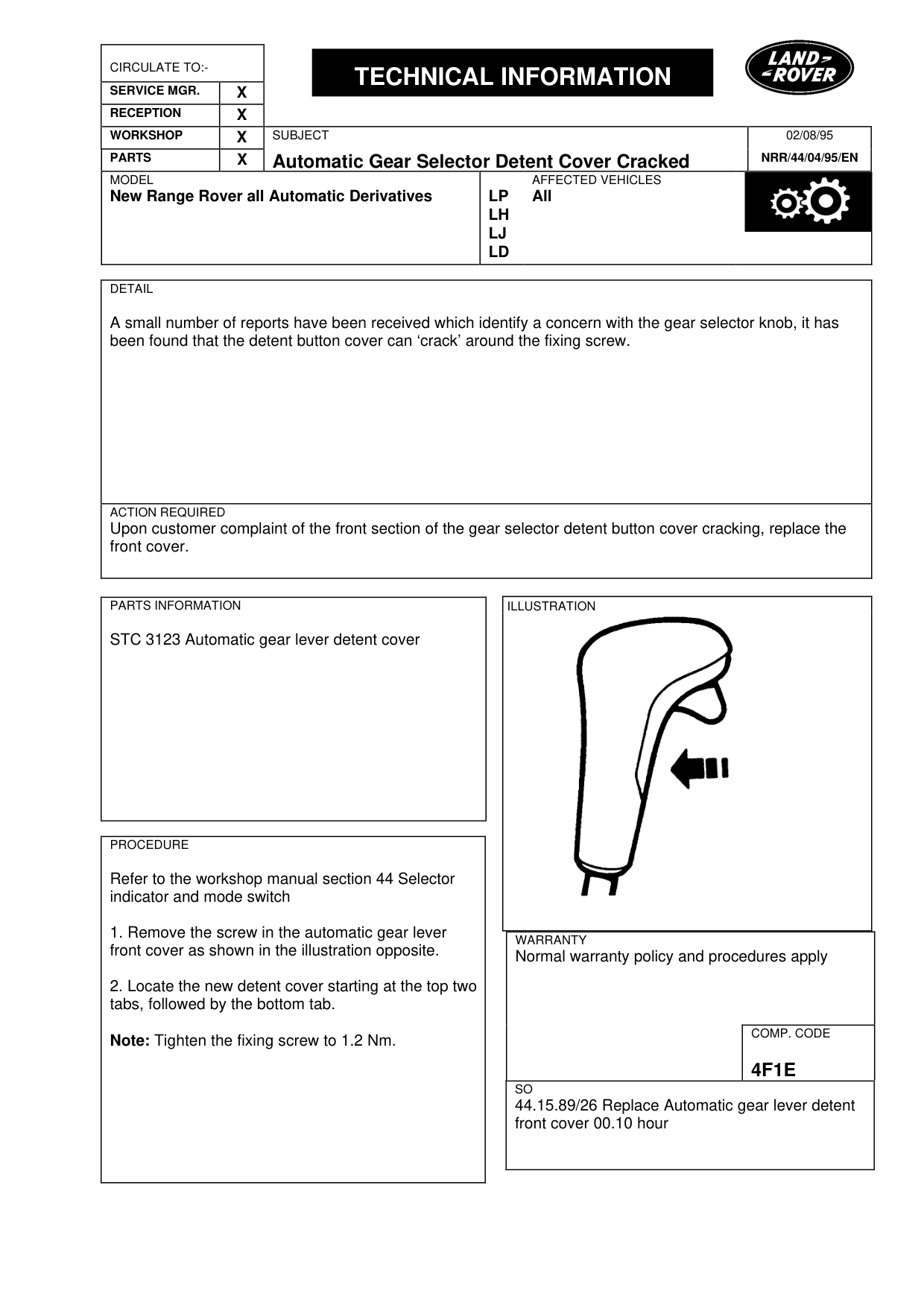

Automatic Gear Selector Detent Cover Cracked

MODEL

New Range Rover all Automatic Derivatives

DETAIL

A small number of reports have been received which identify a concern with the gear selector knob, it has been found that the detent button cover can ‘crack’ around the fixing screw.

ACTION REQUIRED

Upon customer complaint of the front section of the gear selector detent button cover cracking, replace the front cover.

PARTS INFORMATION

STC 3123 Automatic gear lever detent cover

PROCEDURE

Refer to the workshop manual section 44 Selector indicator and mode switch

1. Remove the screw in the automatic gear lever front cover as shown in the illustration opposite.

2. Locate the new detent cover starting at the top two tabs, followed by the bottom tab.

Note: Tighten the fixing screw to 1.2 Nm.

02/08/95 NRR/44/04/95/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

4F1E SO 44.15.89/26 Replace Automatic gear lever detent front cover 00.10 hour
