AUTOMATIC GEARBOX DIAGNOSTIC PROBLEM

Model

New Range Rover All Automatic Derivatives.

Affected vehicles

All

Date

1995-10-05

Reference

05/10/95

Bulletin text

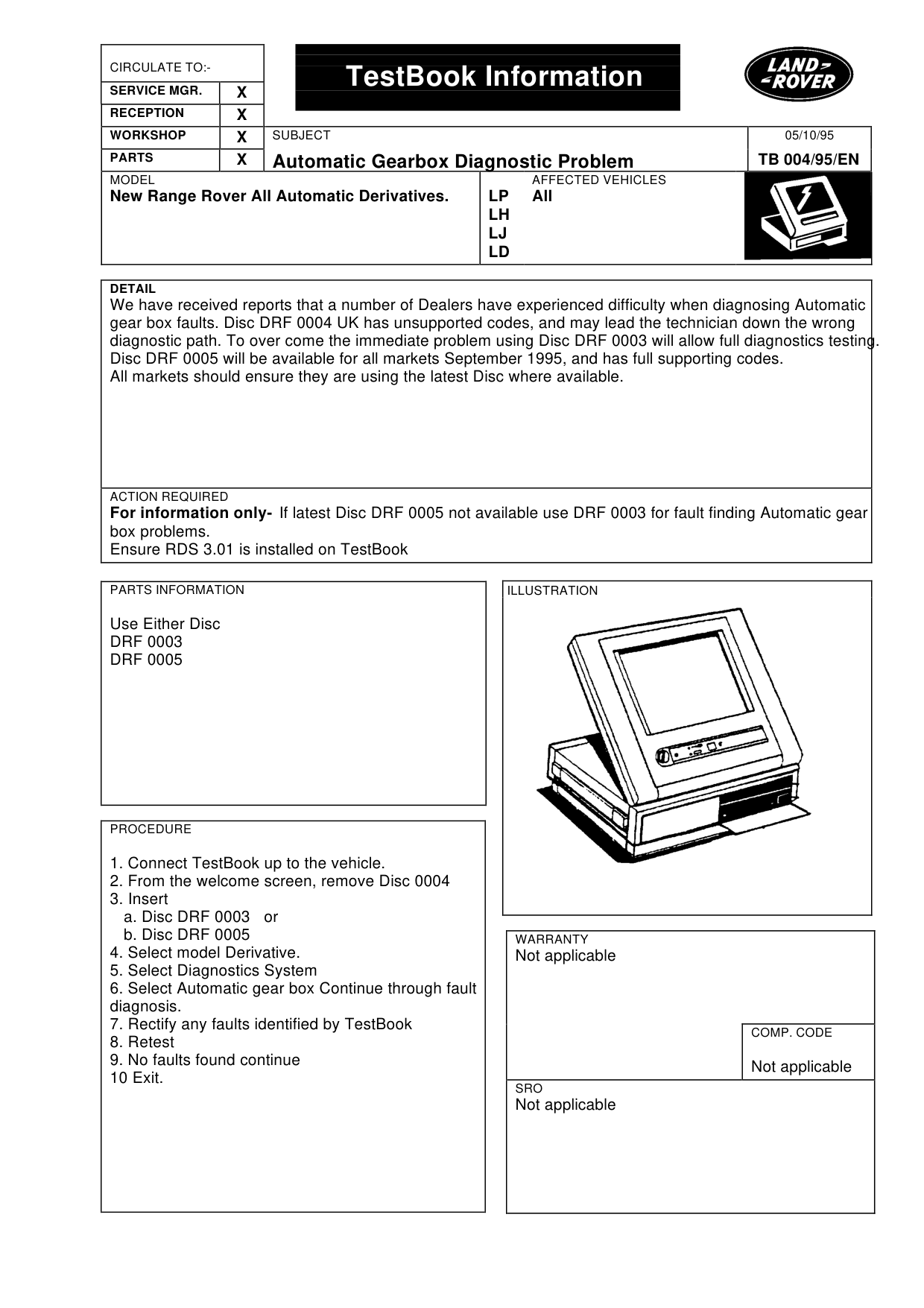

TestBook Information

Automatic Gearbox Diagnostic Problem

MODEL

New Range Rover All Automatic Derivatives.

DETAIL

We have received reports that a number of Dealers have experienced difficulty when diagnosing Automatic gear box faults. Disc DRF 0004 UK has unsupported codes, and may lead the technician down the wrong diagnostic path. To over come the immediate problem using Disc DRF 0003 will allow full diagnostics testing. Disc DRF 0005 will be available for all markets September 1995, and has full supporting codes. All markets should ensure they are using the latest Disc where available.

ACTION REQUIRED

For information only- If latest Disc DRF 0005 not available use DRF 0003 for fault finding Automatic gear box problems. Ensure RDS 3.01 is installed on TestBook

PARTS INFORMATION

Use Either Disc DRF 0003 DRF 0005

PROCEDURE

1. Connect TestBook up to the vehicle. 2. From the welcome screen, remove Disc 0004 3. Insert a. Disc DRF 0003 or b. Disc DRF 0005 4. Select model Derivative. 5. Select Diagnostics System 6. Select Automatic gear box Continue through fault diagnosis. 7. Rectify any faults identified by TestBook 8. Retest 9. No faults found continue 10 Exit.

05/10/95

TB 004/95/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
