Gearbox - overheat message

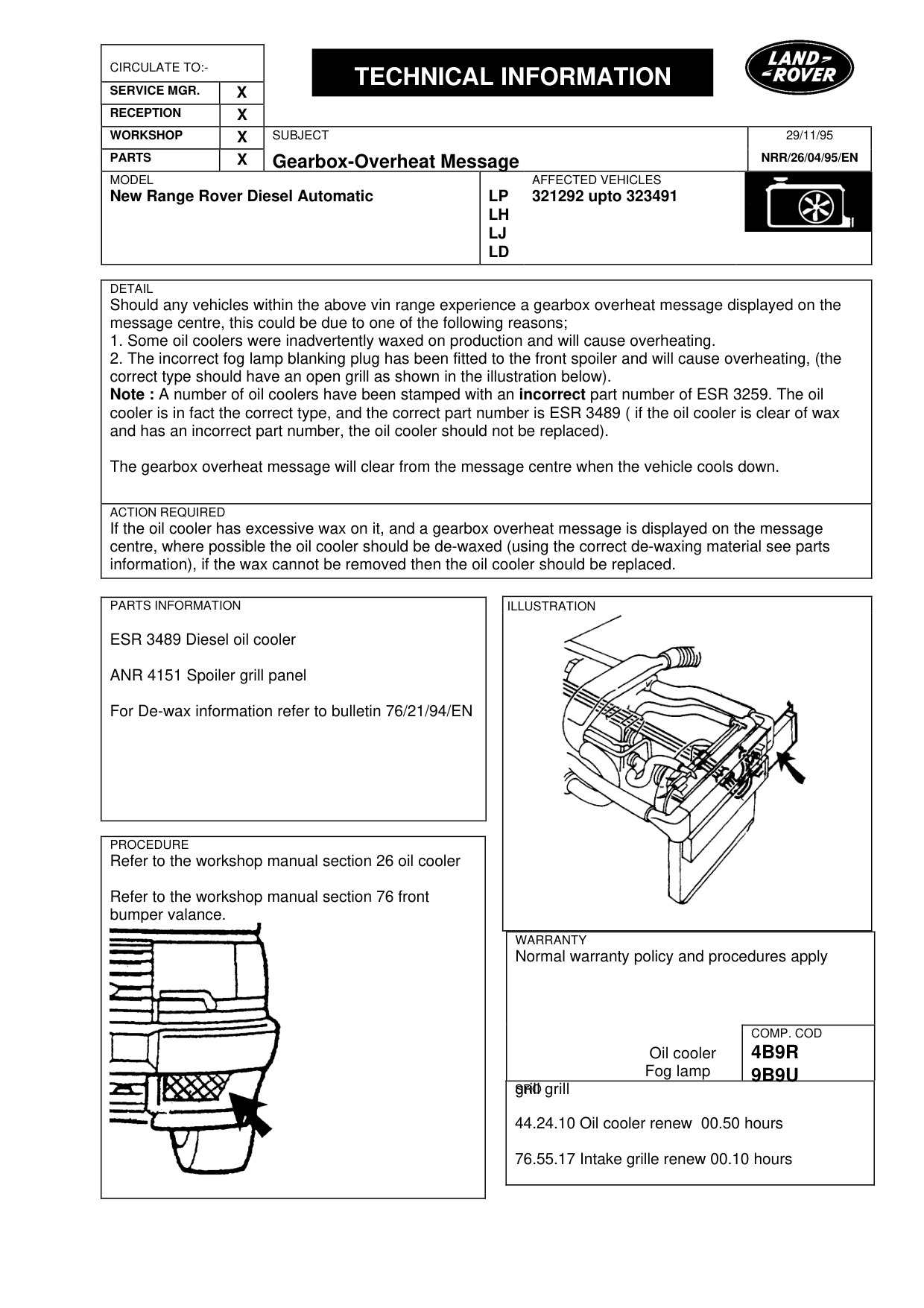

GEARBOX - OVERHEAT MESSAGE

Model

New Range Rover Diesel Automatic

Affected vehicles

321292 upto 323491

Date

1995-11-29

Reference

29/11/95

Bulletin text

Gearbox-Overheat Message

MODEL

New Range Rover Diesel Automatic

DETAIL

Should any vehicles within the above vin range experience a gearbox overheat message displayed on the message centre, this could be due to one of the following reasons; 1. Some oil coolers were inadvertently waxed on production and will cause overheating. 2. The incorrect fog lamp blanking plug has been fitted to the front spoiler and will cause overheating, (the correct type should have an open grill as shown in the illustration below). Note : A number of oil coolers have been stamped with an incorrect part number of ESR 3259. The oil cooler is in fact the correct type, and the correct part number is ESR 3489 ( if the oil cooler is clear of wax and has an incorrect part number, the oil cooler should not be replaced).

The gearbox overheat message will clear from the message centre when the vehicle cools down.

ACTION REQUIRED

If the oil cooler has excessive wax on it, and a gearbox overheat message is displayed on the message centre, where possible the oil cooler should be de-waxed (using the correct de-waxing material see parts information), if the wax cannot be removed then the oil cooler should be replaced.

PARTS INFORMATION

ESR 3489 Diesel oil cooler

ANR 4151 Spoiler grill panel

For De-wax information refer to bulletin 76/21/94/EN

PROCEDURE

Refer to the workshop manual section 26 oil cooler

Refer to the workshop manual section 76 front bumper valance.

29/11/95 NRR/26/04/95/EN

AFFECTED VEHICLES

LP 321292 upto 323491 LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. COD 4B9R Oil cooler Fog lamp 9B9U grill grill

SRO

44.24.10 Oil cooler renew 00.50 hours

76.55.17 Intake grille renew 00.10 hours
