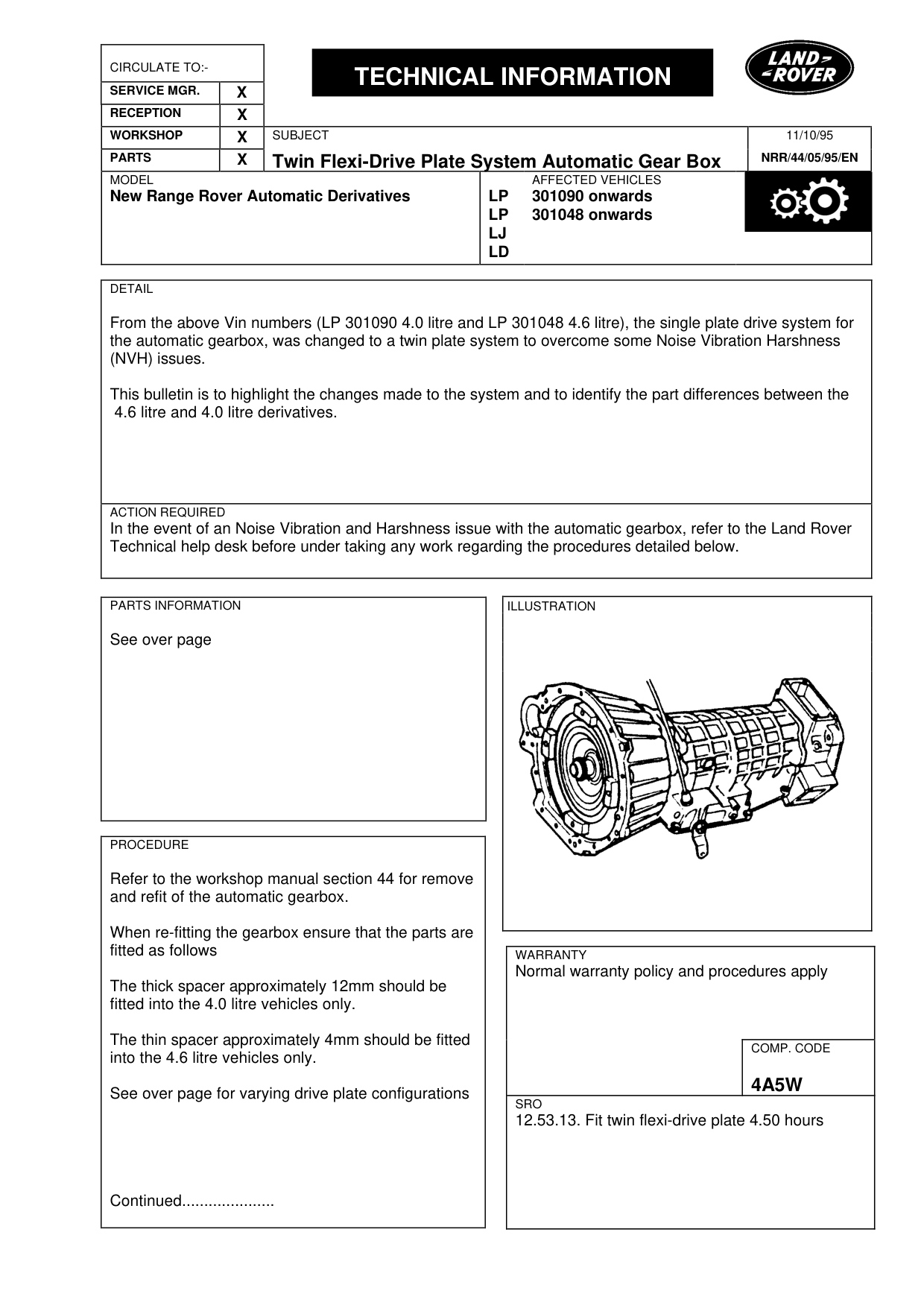

Twin flexi-drive plate system automatic gearbox

TWIN FLEXI-DRIVE PLATE SYSTEM AUTOMATIC GEARBOX

Model

New Range Rover Automatic Derivatives

Affected vehicles

301090 onwards 301048 onwards

Date

1995-10-11

Reference

11/10/95

Bulletin text

Twin Flexi-Drive Plate System Automatic Gear Box

MODEL

New Range Rover Automatic Derivatives

DETAIL

From the above Vin numbers (LP 301090 4.0 litre and LP 301048 4.6 litre), the single plate drive system for the automatic gearbox, was changed to a twin plate system to overcome some Noise Vibration Harshness (NVH) issues.

This bulletin is to highlight the changes made to the system and to identify the part differences between the 4.6 litre and 4.0 litre derivatives.

ACTION REQUIRED

In the event of an Noise Vibration and Harshness issue with the automatic gearbox, refer to the Land Rover Technical help desk before under taking any work regarding the procedures detailed below.

PARTS INFORMATION

See over page

PROCEDURE

Refer to the workshop manual section 44 for remove and refit of the automatic gearbox.

When re-fitting the gearbox ensure that the parts are fitted as follows

The thick spacer approximately 12mm should be fitted into the 4.0 litre vehicles only.

The thin spacer approximately 4mm should be fitted into the 4.6 litre vehicles only.

See over page for varying drive plate configurations

Continued.....................

11/10/95 NRR/44/05/95/EN

AFFECTED VEHICLES

LP 301090 onwards LP 301048 onwards LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

4A5W

SRO

12.53.13. Fit twin flexi-drive plate 4.50 hours

Twin Flexi-Drive Plate System Automatic Gearbox

MODEL

New Range Rover Automatic Derivatives

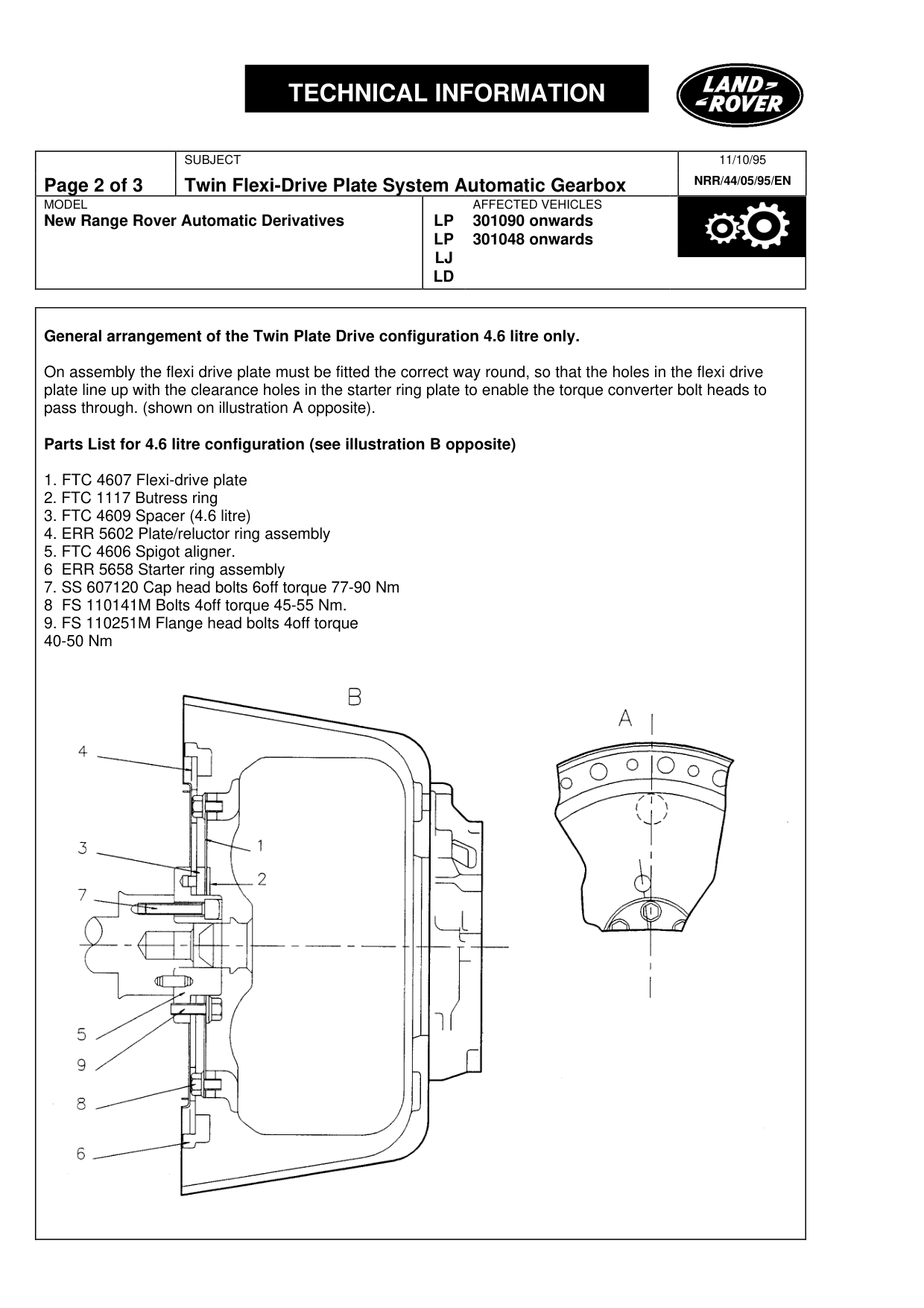

General arrangement of the Twin Plate Drive configuration 4.6 litre only.

On assembly the flexi drive plate must be fitted the correct way round, so that the holes in the flexi drive plate line up with the clearance holes in the starter ring plate to enable the torque converter bolt heads to pass through. (shown on illustration A opposite).

Parts List for 4.6 litre configuration (see illustration B opposite)

1. FTC 4607 Flexi-drive plate 2. FTC 1117 Butress ring 3. FTC 4609 Spacer (4.6 litre) 4. ERR 5602 Plate/reluctor ring assembly 5. FTC 4606 Spigot aligner. 6 ERR 5658 Starter ring assembly 7. SS 607120 Cap head bolts 6off torque 77-90 Nm 8 FS 110141M Bolts 4off torque 45-55 Nm. 9. FS 110251M Flange head bolts 4off torque 40-50 Nm

11/10/95 NRR/44/05/95/EN

AFFECTED VEHICLES

LP 301090 onwards LP 301048 onwards LJ LD

Twin Flexi-Drive Plate System Automatic Gearbox

MODEL

New Range Rover Automatic Derivatives

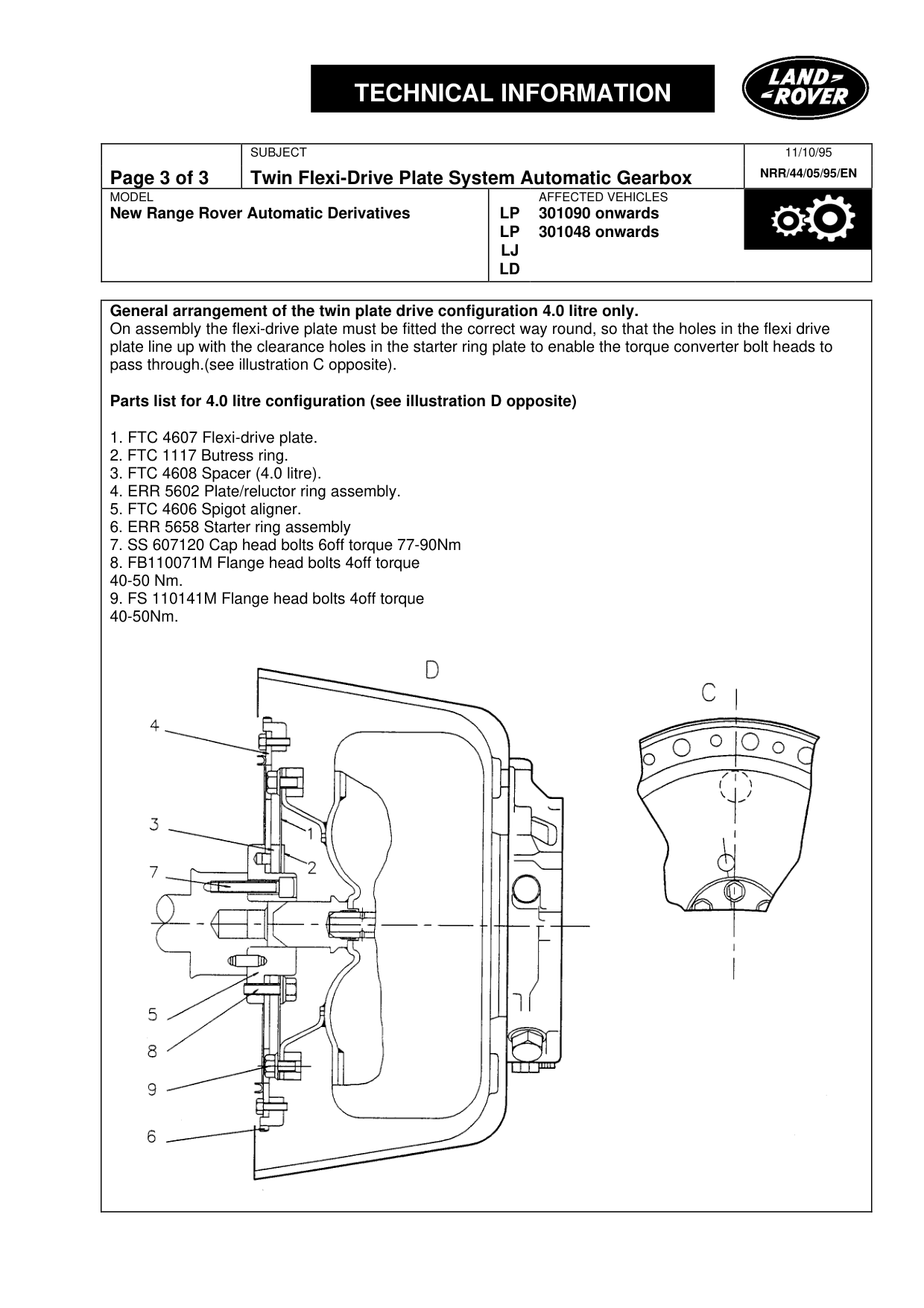

General arrangement of the twin plate drive configuration 4.0 litre only. On assembly the flexi-drive plate must be fitted the correct way round, so that the holes in the flexi drive plate line up with the clearance holes in the starter ring plate to enable the torque converter bolt heads to pass through.(see illustration C opposite).

Parts list for 4.0 litre configuration (see illustration D opposite)

1. FTC 4607 Flexi-drive plate. 2. FTC 1117 Butress ring. 3. FTC 4608 Spacer (4.0 litre). 4. ERR 5602 Plate/reluctor ring assembly. 5. FTC 4606 Spigot aligner. 6. ERR 5658 Starter ring assembly 7. SS 607120 Cap head bolts 6off torque 77-90Nm 8. FB110071M Flange head bolts 4off torque 40-50 Nm. 9. FS 110141M Flange head bolts 4off torque 40-50Nm.

11/10/95 NRR/44/05/95/EN

AFFECTED VEHICLES

LP 301090 onwards LP 301048 onwards LJ LD
