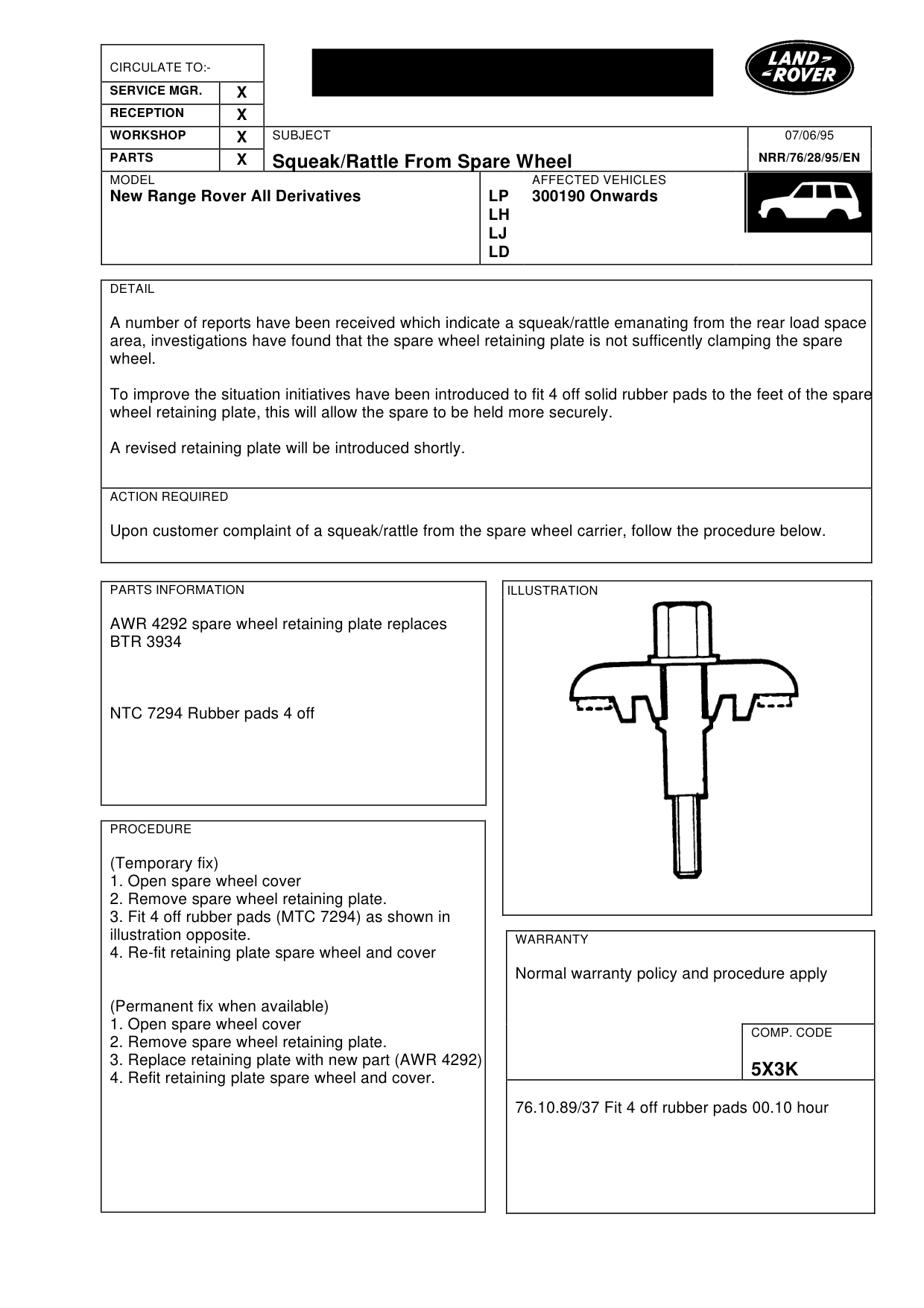

Squeak/rattle from spare wheel

SQUEAK/RATTLE FROM SPARE WHEEL

Model

New Range Rover All Derivatives

Affected vehicles

300190 Onwards

Date

1995-06-07

Reference

07/06/95

Bulletin text

Squeak/Rattle From Spare Wheel

MODEL

New Range Rover All Derivatives

DETAIL

A number of reports have been received which indicate a squeak/rattle emanating from the rear load space area, investigations have found that the spare wheel retaining plate is not sufficently clamping the spare wheel.

To improve the situation initiatives have been introduced to fit 4 off solid rubber pads to the feet of the spare wheel retaining plate, this will allow the spare to be held more securely.

A revised retaining plate will be introduced shortly.

ACTION REQUIRED

Upon customer complaint of a squeak/rattle from the spare wheel carrier, follow the procedure below.

PARTS INFORMATION

AWR 4292 spare wheel retaining plate replaces BTR 3934

NTC 7294 Rubber pads 4 off

PROCEDURE

(Temporary fix) 1. Open spare wheel cover 2. Remove spare wheel retaining plate. 3. Fit 4 off rubber pads (MTC 7294) as shown in illustration opposite. 4. Re-fit retaining plate spare wheel and cover

(Permanent fix when available) 1. Open spare wheel cover 2. Remove spare wheel retaining plate. 3. Replace retaining plate with new part (AWR 4292) 4. Refit retaining plate spare wheel and cover.

07/06/95

NRR/76/28/95/EN

AFFECTED VEHICLES

LP 300190 Onwards LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

5X3K

76.10.89/37 Fit 4 off rubber pads 00.10 hour
