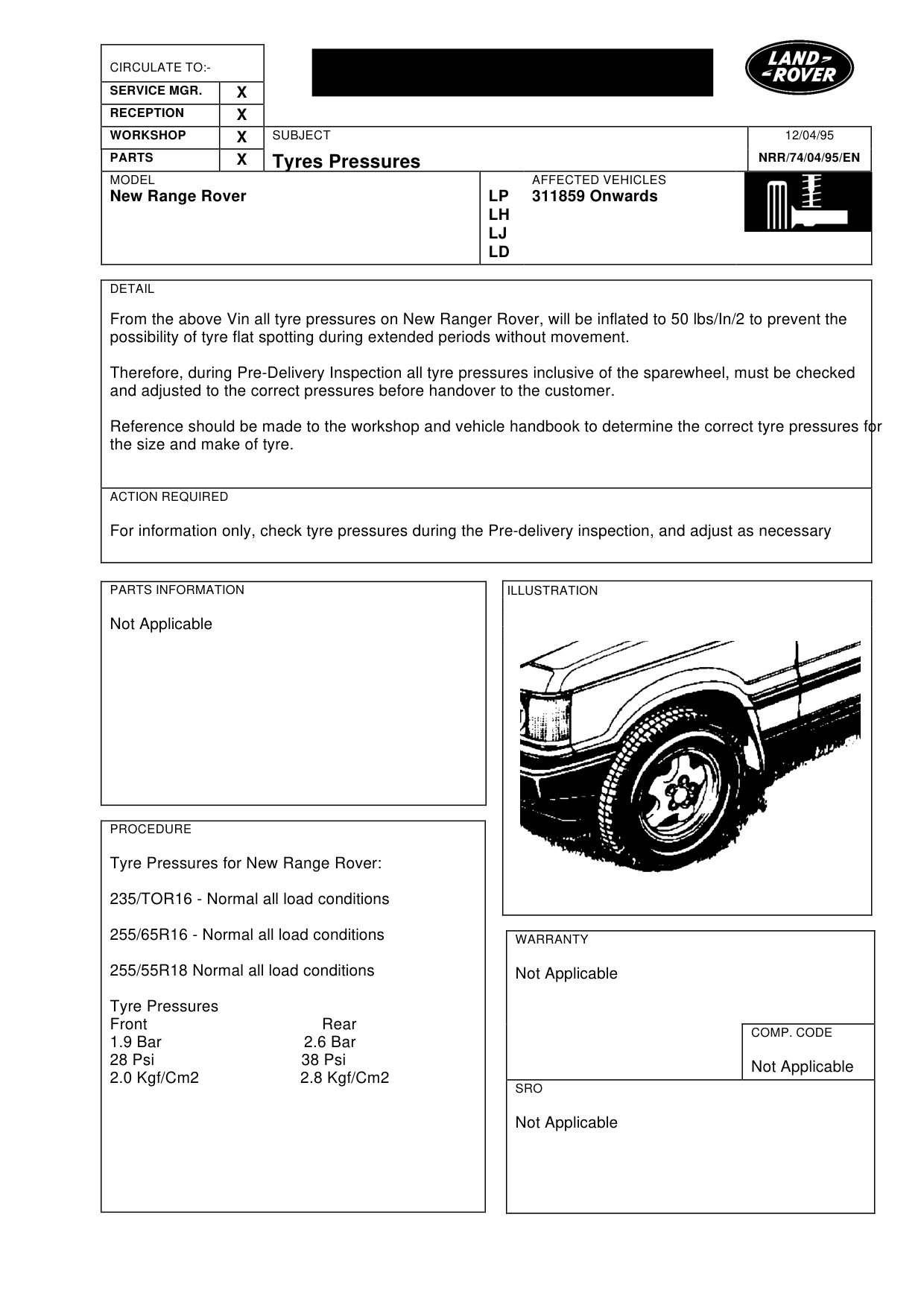

Tyre pressures

TYRE PRESSURES

Model

New Range Rover

Affected vehicles

311859 Onwards

Date

1995-04-12

Reference

12/04/95

Bulletin text

Tyres Pressures

MODEL

New Range Rover

DETAIL

From the above Vin all tyre pressures on New Ranger Rover, will be inflated to 50 lbs/In/2 to prevent the possibility of tyre flat spotting during extended periods without movement.

Therefore, during Pre-Delivery Inspection all tyre pressures inclusive of the sparewheel, must be checked and adjusted to the correct pressures before handover to the customer.

Reference should be made to the workshop and vehicle handbook to determine the correct tyre pressures for the size and make of tyre.

ACTION REQUIRED

For information only, check tyre pressures during the Pre-delivery inspection, and adjust as necessary

PARTS INFORMATION

Not Applicable

PROCEDURE

Tyre Pressures for New Range Rover:

235/TOR16 - Normal all load conditions

255/65R16 - Normal all load conditions

255/55R18 Normal all load conditions

Tyre Pressures Front Rear 1.9 Bar 2.6 Bar 28 Psi 38 Psi 2.0 Kgf/Cm2 2.8 Kgf/Cm2

12/04/95

NRR/74/04/95/EN

AFFECTED VEHICLES

LP 311859 Onwards LH LJ LD

WARRANTY

Not Applicable

COMP. CODE

Not Applicable

SRO

Not Applicable
