Range Rover (LH) V8-3.5L (1987)
/v8-3.5l/Page-194001.png)

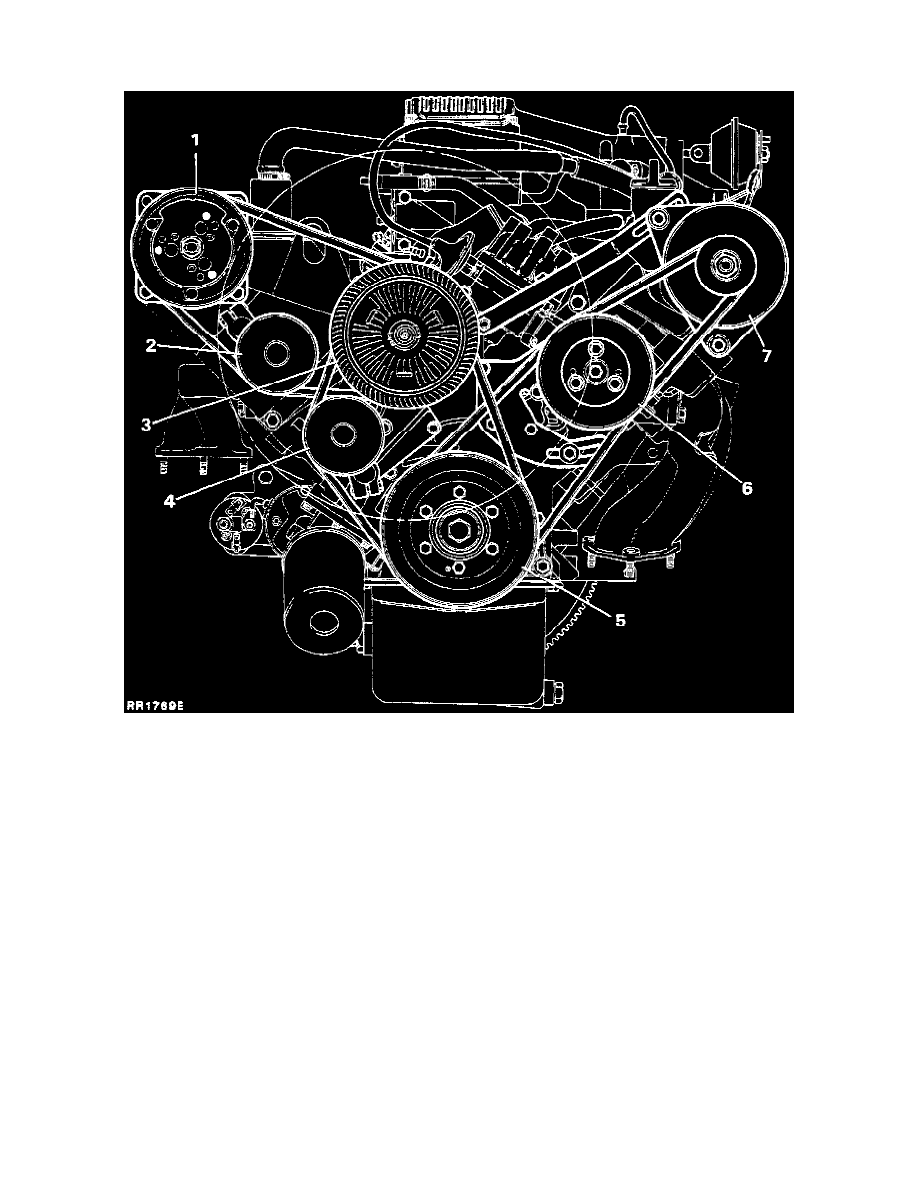

Drive Belt: Diagrams
WARNING: Disconnect the battery negative terminal before adjusting drive belts to avoid the possibility of the vehicle being started.
Drive Belts
1. Air conditioning compressor
2. Idler pulley
3. Viscous fan-water pump unit
4. Idler pulley
5. Crankshaft
6. Power steering pump
7. Alternator
