ES 330 V6-3.3L (3MZ-FE) (2004)
/Page-287001.png)
Drive Belt: Testing and Inspection
INSPECT V-RIBBED BELT

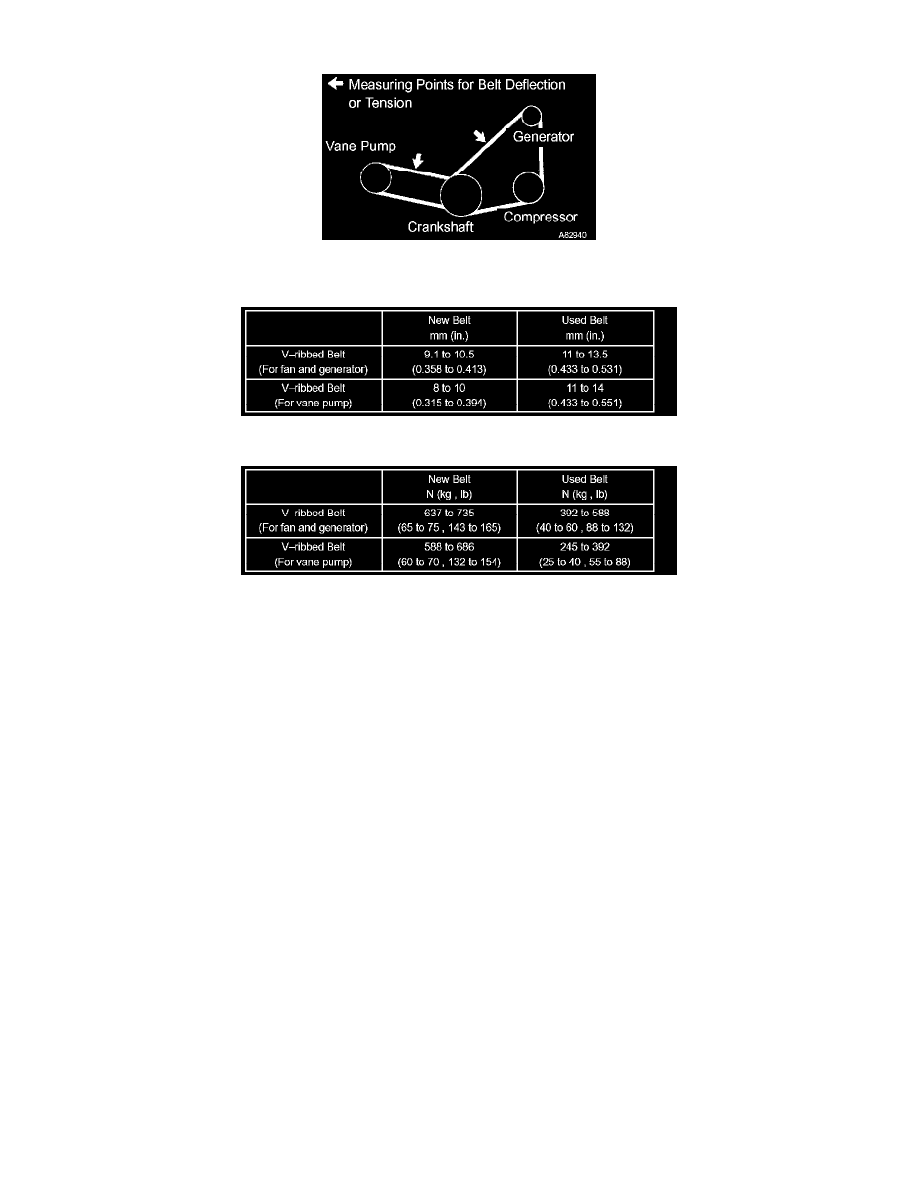

a. Belt deflection
Pressing force: 98 N (10 kgf, 22 lbs.)
b. Belt tension
NOTICE:
^
Check the drive belt deflection at the specified point.
^
When installing a new belt, set its tension value as specified. When inspecting a belt which is used for over 5 minutes, apply the
specification of "Used belt".
^
When reinstalling a belt which is used for over 5 minutes, adjust its belt deflection and tension to the inter mediate value of each
specification in "Used belt".
^
The V-ribbed belt tension and deflection value should be checked after 2 revolutions of engine cranking.
^
When using a belt tension gauge, confirm the accuracy first by using a master gauge.
