ES 330 V6-3.3L (3MZ-FE) (2004)

  • Restraint Systems
  • Relays and Modules - Restraint Systems
  • Air Bag Control Module
  • Component Information
  • Locations

Page 1
background image

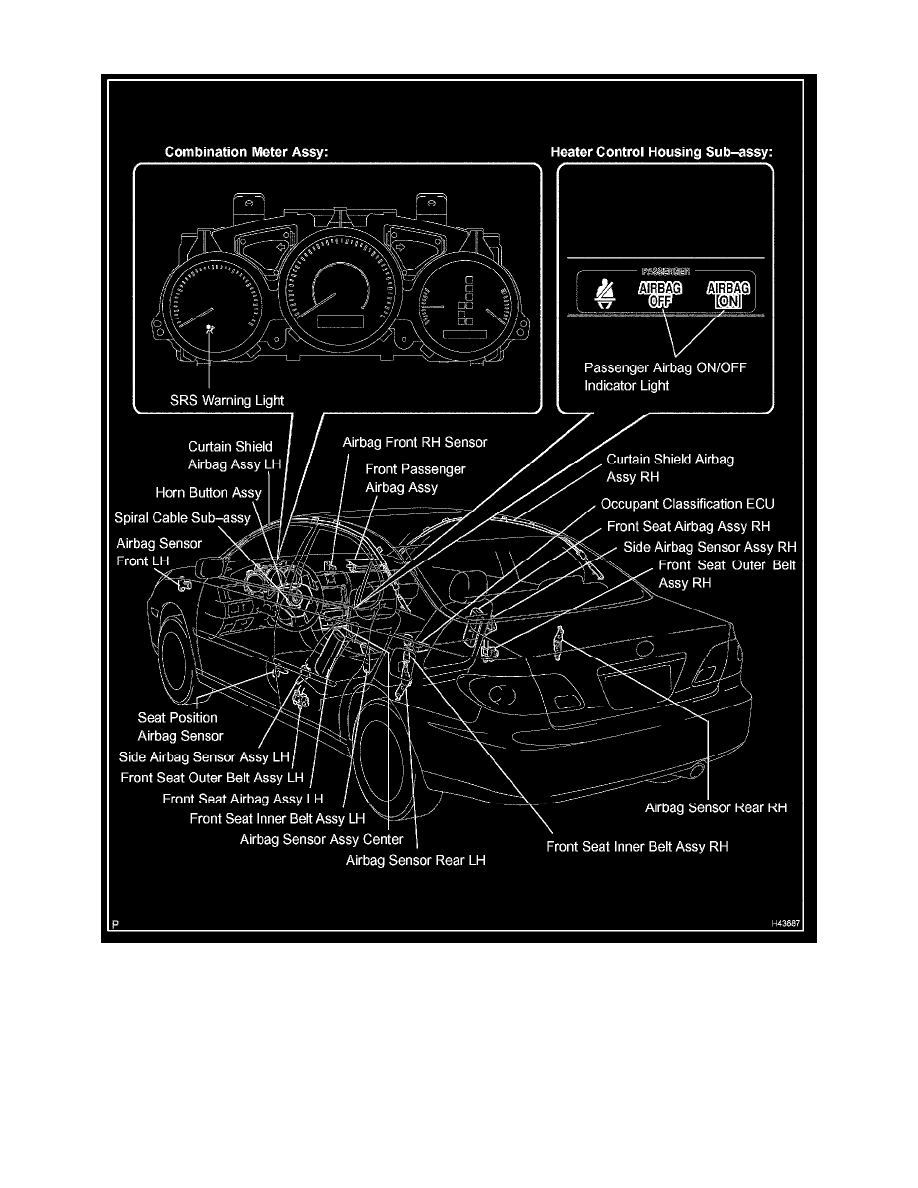

Air Bag Control Module: Locations

Supplemental Restraint System

  • Restraint Systems
  • Relays and Modules - Restraint Systems
  • Air Bag Control Module
  • Component Information
  • Locations
