Information Bus: Description and Operation
System Diagram

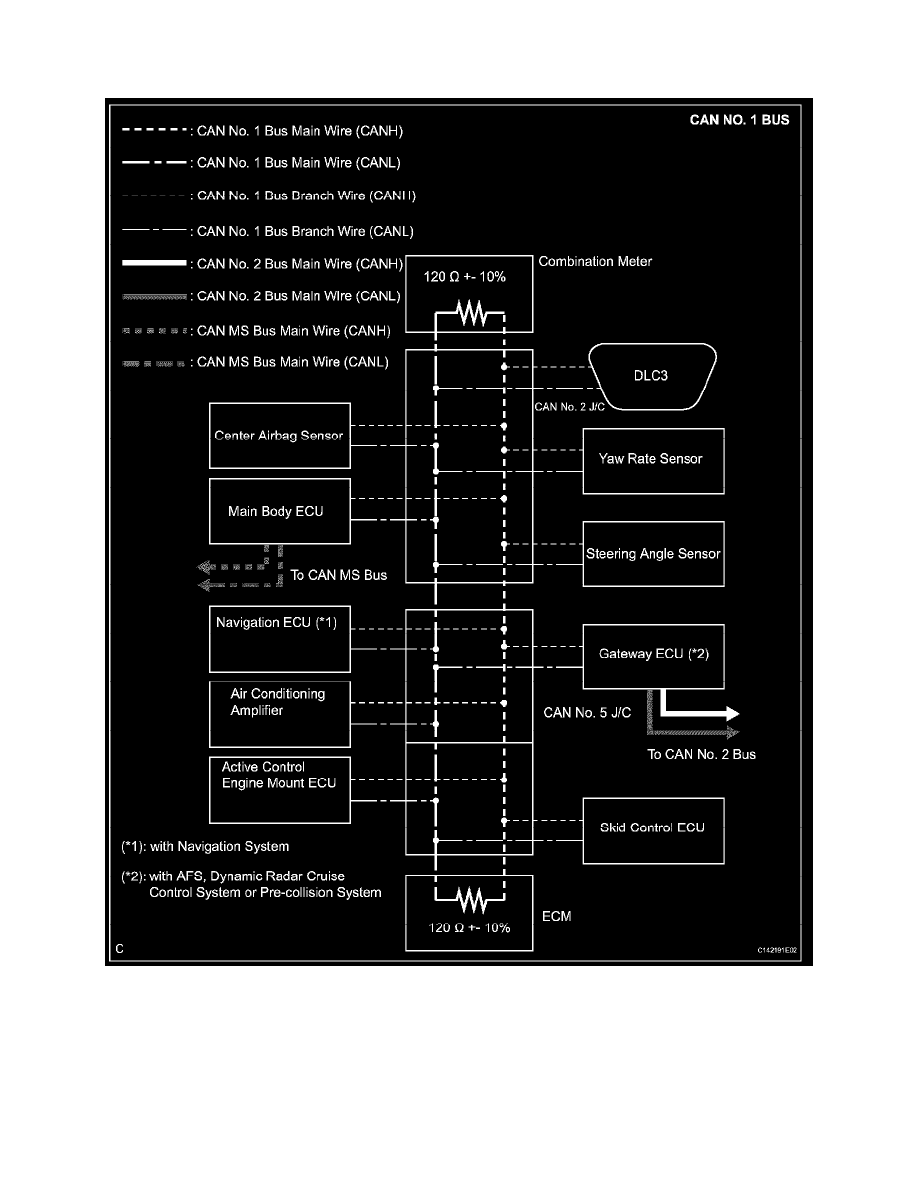

System Diagram (Part 1)

Powertrain Management
Computers and Control Systems
Information Bus / Component Information
Description and Operation
System Diagram
