GS 300 L6-3.0L (2JZ-GE) (1993)

Page 1
background image

Traction Control Module: Specifications

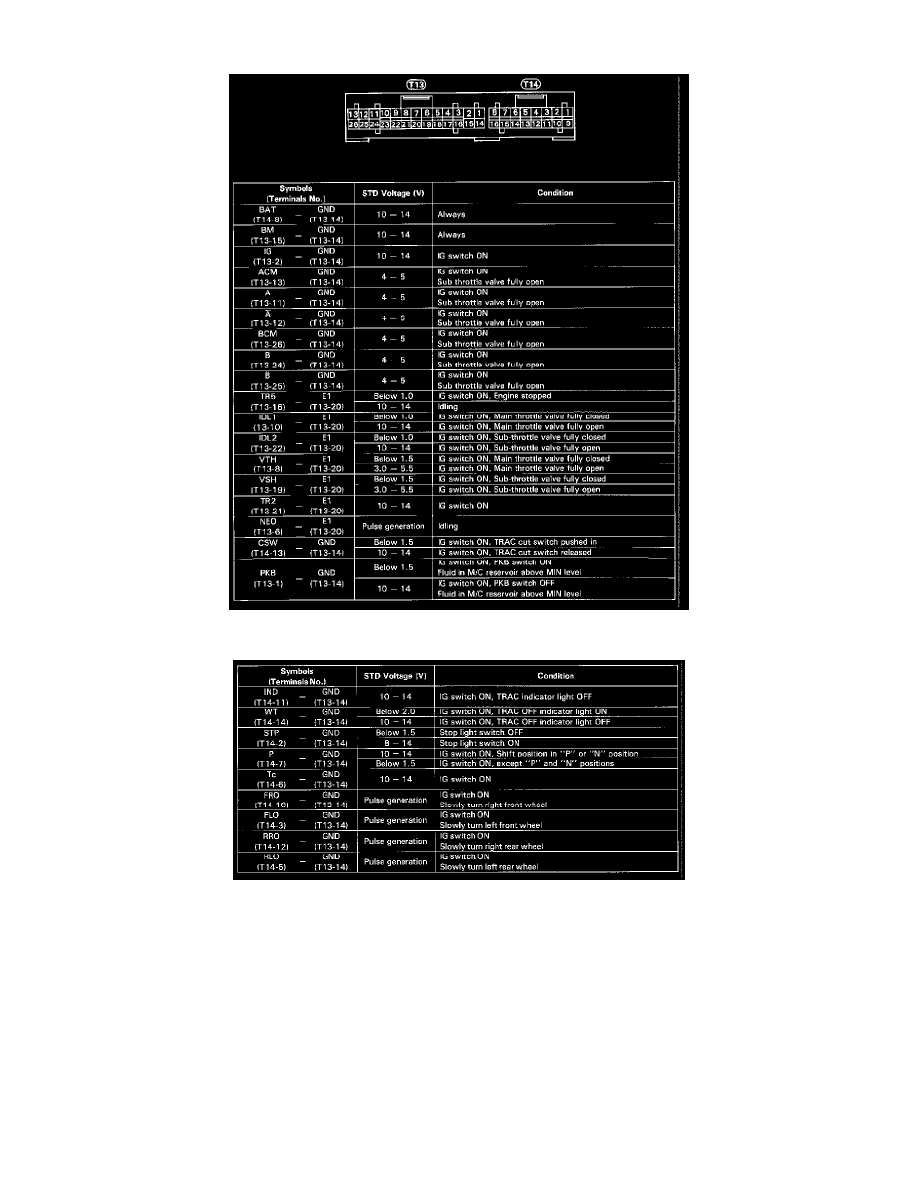

Fig. 28 TRAC ECU Terminal Values (Part 1 Of 2)

Fig. 28 TRAC ECU Terminal Values (Part 2 Of 2)
