Circuit Breaker: Technical Service Bulletins
Wiper Motor - Circuit Breaker Inspection
ELECTRICAL
EL95-004
APRIL 14, 1995
ALL MODELS
Title: WIPER MOTOR CIRCUIT BREAKER-INSPECTION PROCEDURE
To eliminate the possibility of wiper motor damage, wiper motors have internal circuit breaker protection. The circuit breaker is a thermal limiting type
and will reset automatically after the wiper motor current load returns to normal.

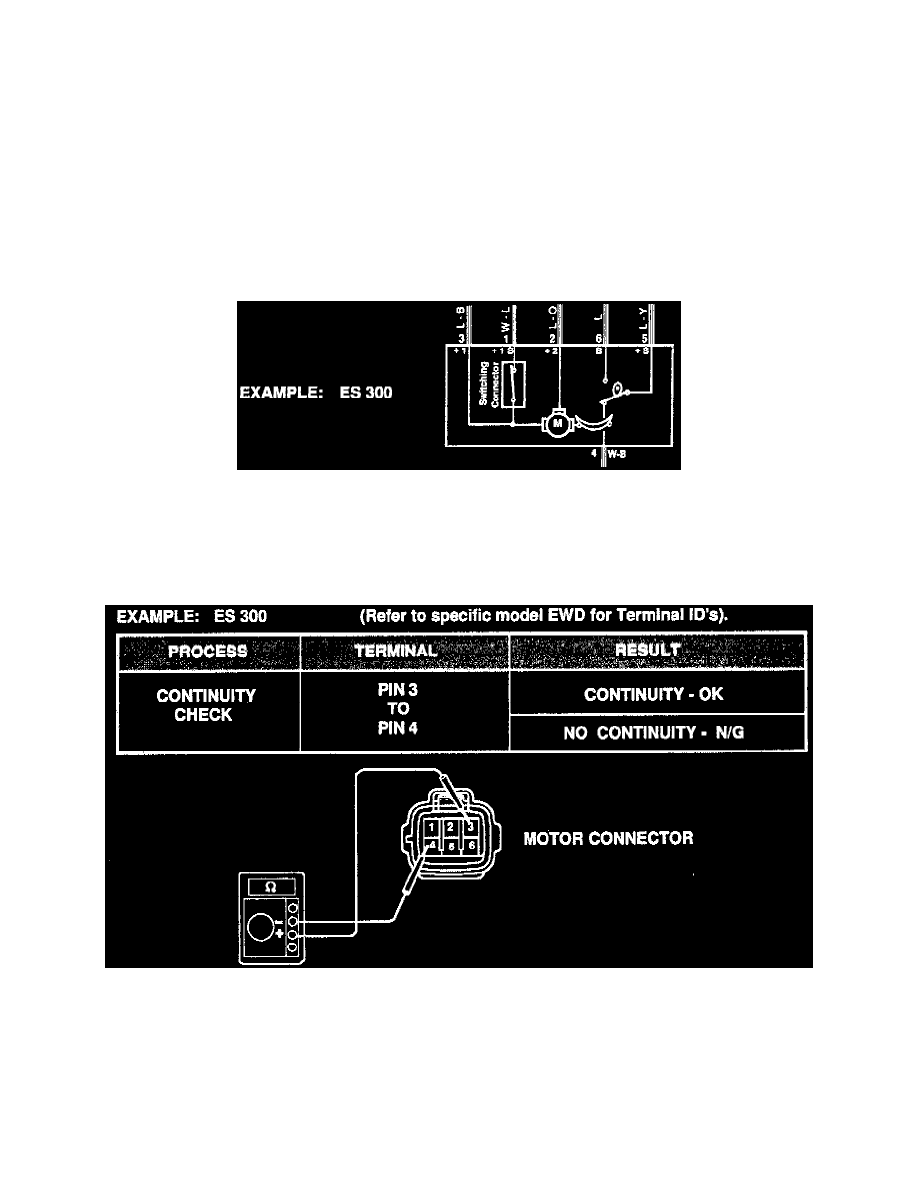

LOCATION OF CIRCUIT BREAKER:
If the wiper motor is inoperative, the following checks should be included in your diagnosis to confirm circuit breaker operation:
^
Disconnect the wiper motor connector.
^
Wait five minutes before checking continuity.
Check continuity of wiper motor with an ohmmeter as shown.
