Timing Belt: Diagrams (page 5 of 19)
- Make
- Lexus
- Model
- GS 400
- Engine
- V8-4.0L (1UZ-FE)
- Year
- 1999
- Section
- Timing Belt

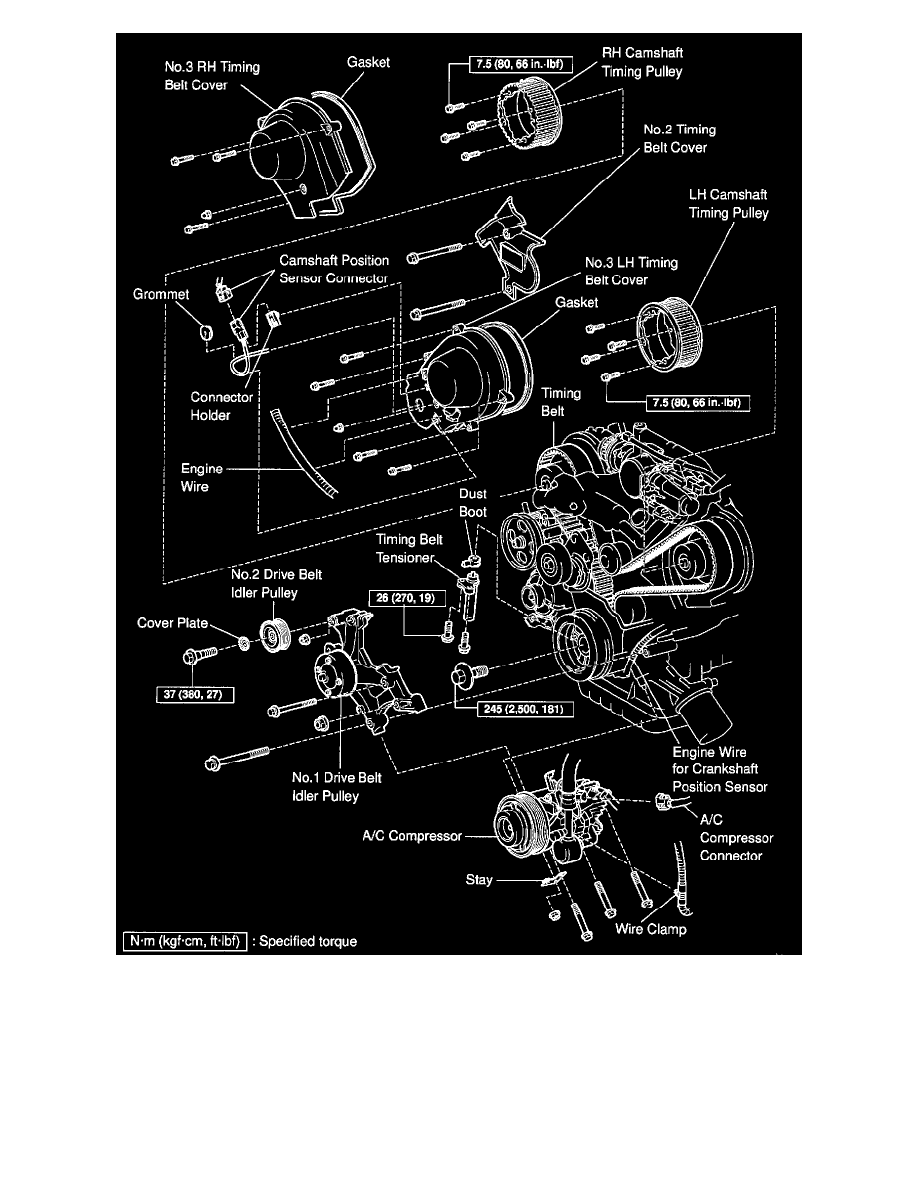

MaintenanceDiagrams · page 5 of 19
/Page-427002.png)
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
