GS 400 V8-4.0L (1UZ-FE) (1999)

Page 1
background image

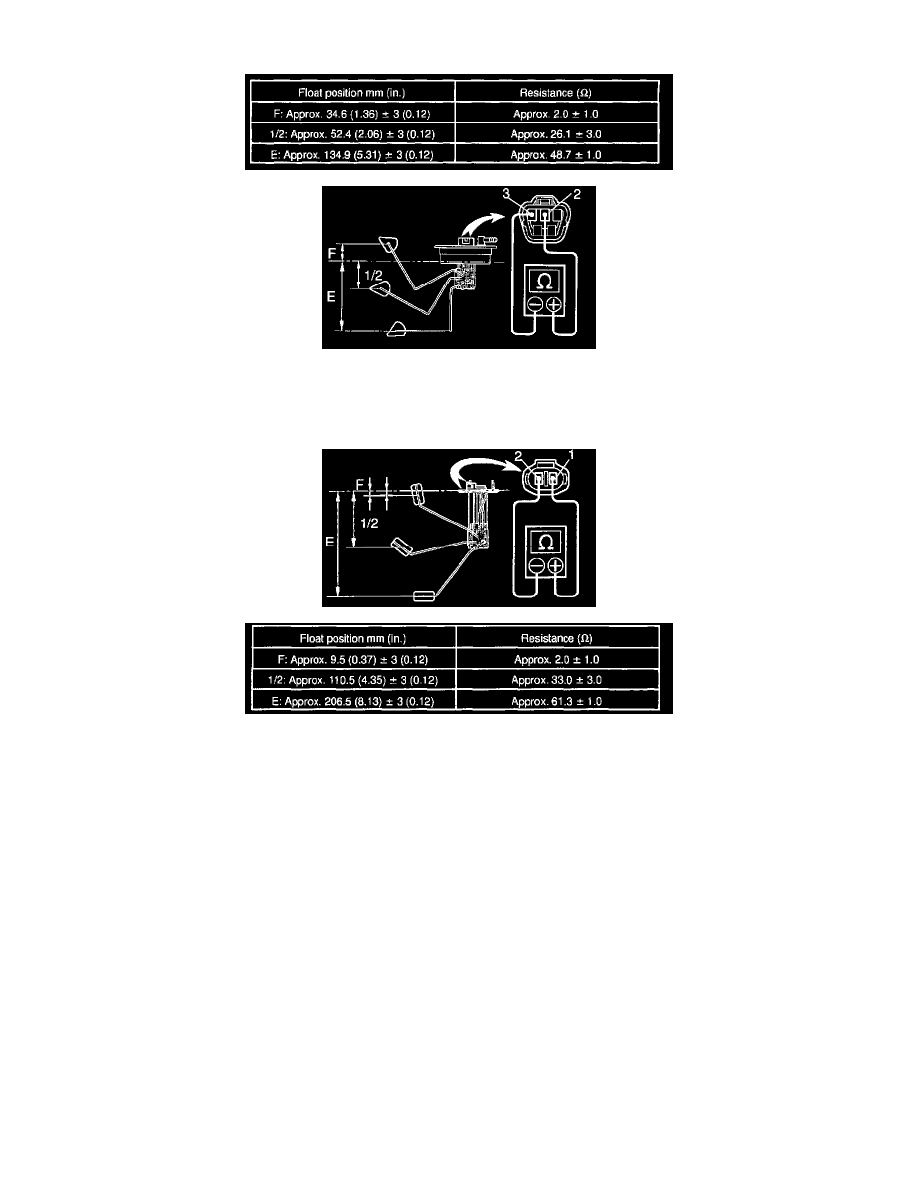

Fuel Gauge Sender: Testing and Inspection

INSPECT FUEL MAIN SENDER GAUGE RESISTANCE

Measure the resistance between terminals 1 and 2 for each float position.
If resistance value is not as specified, replace the main sender gauge.

INSPECT FUEL SUB SENDER GAUGE RESISTANCE

Measure the resistance between terminals 1 and 2 for each float position.
If resistance value is not as specified, replace the sub sender gauge.
