GS 450h V6-3.5L (2GR-FSE) Hybrid (2007)
_hybrid/Page-2099001.png)
Center Mounted Brake Lamp: Testing and Inspection
ON-VEHICLE INSPECTION
1. CHECK HIGH MOUNTED STOP LIGHT ASSEMBLY

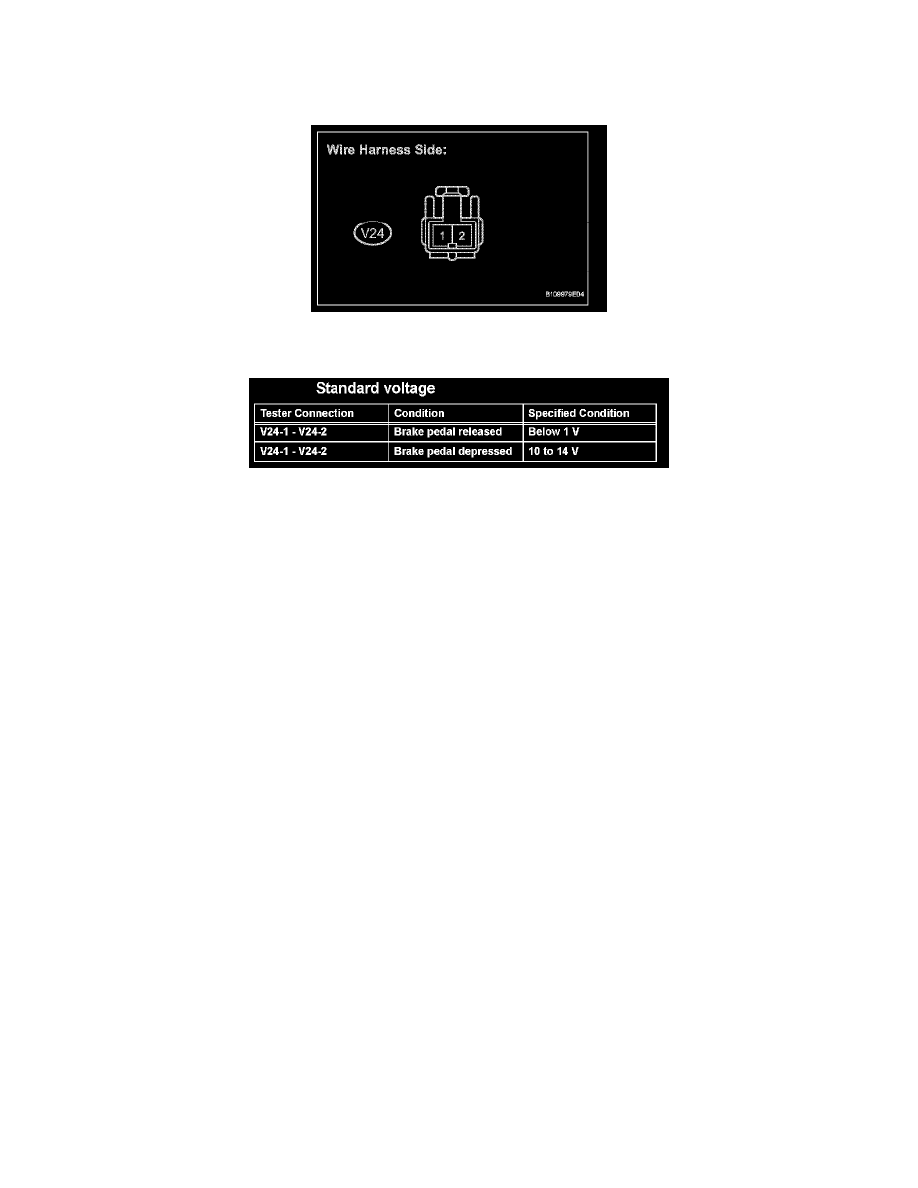

a. Disconnect the V24 connector.
b. Connect the voltmeter's positive (+) lead to terminal 1 and the negative (-) lead to terminal 2.
c. Measure the voltage of the connector.
If the result is not as specified, replace the light assembly.
