GX 470 V8-4.7L (2UZ-FE) (2004)
/Page-1433001.png)
Global Positioning System Antenna: Service and Repair
REPLACEMENT
HINT: The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.
1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/DEFROSTER NOZZLE DUCT

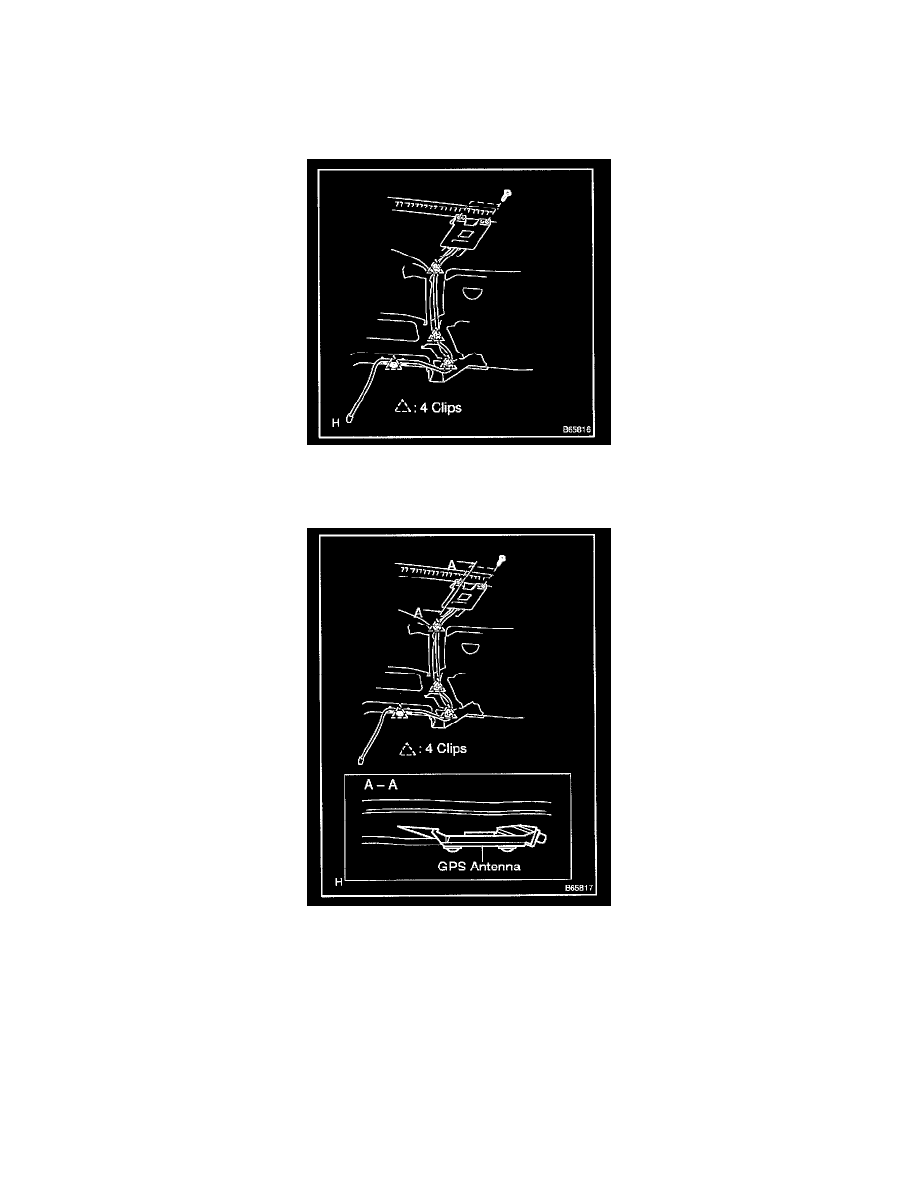

2. REMOVE GPS ANTENNA
a. Disengage the 4 clips.
b. Remove the 2 screws and GPS antenna.
3. INSTALL GPS ANTENNA
a. Install the GPS antenna with the 2 screws.
b. Install the 4 clips.
