LS 430 V8-4.3L (3UZ-FE) (2002)
/Page-1722001.png)
Headlamp Alignment Actuator: Testing and Inspection

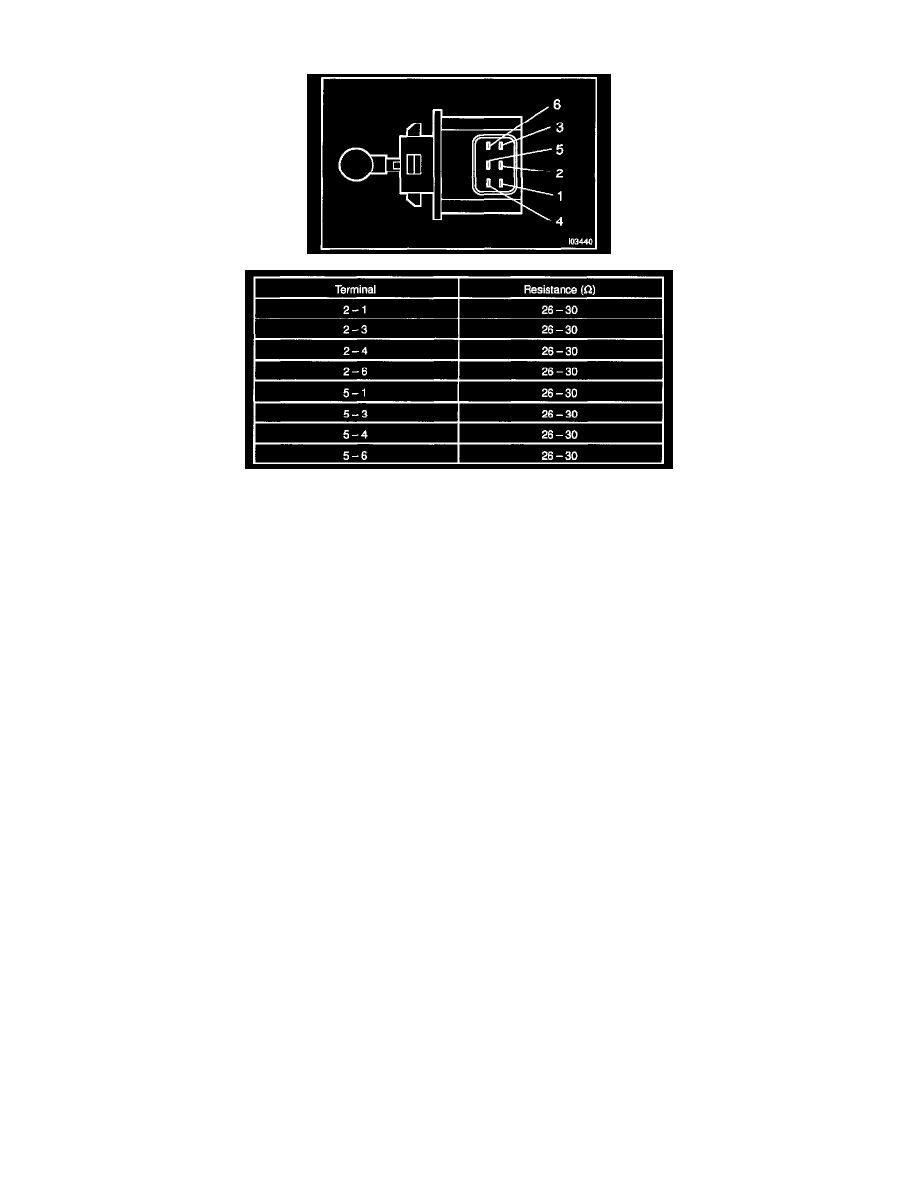

INSPECT HEADLIGHT BEAM LEVEL CONTROL ACTUATOR RESISTANCE
a. Check that continuity exists between terminal 2 and 5.
b. Check that resistance exists between terminal, as shown in the chart.
If resistance value is not as specified, replace the actuator.
