LS 430 V8-4.3L (3UZ-FE) (2002)
/Page-1363001.png)
Seat Belt Reminder Lamp: Testing and Inspection

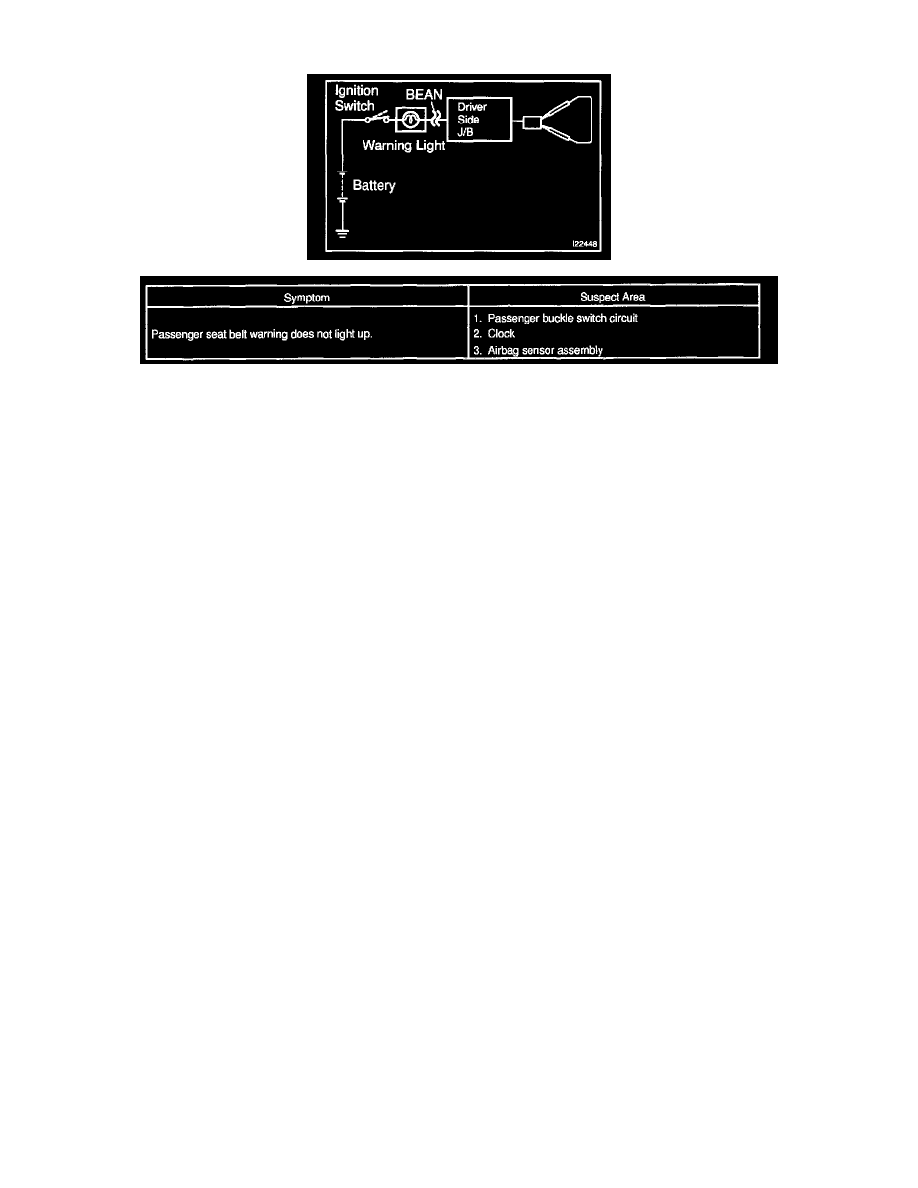

Problem Symptoms Table - Passenger Seat Belt Warning System
INSPECT SEAT BELT WARNING LIGHT
a. Disconnect the connector from the buckle switch terminal 1 and 2 on the wire harness side connector.
b. Turn the ignition switch ON and check that the warning light lights up.
If the warning light does not light up, inspect the LED or wire harness.
