Brake Fluid Pump Relay: Locations

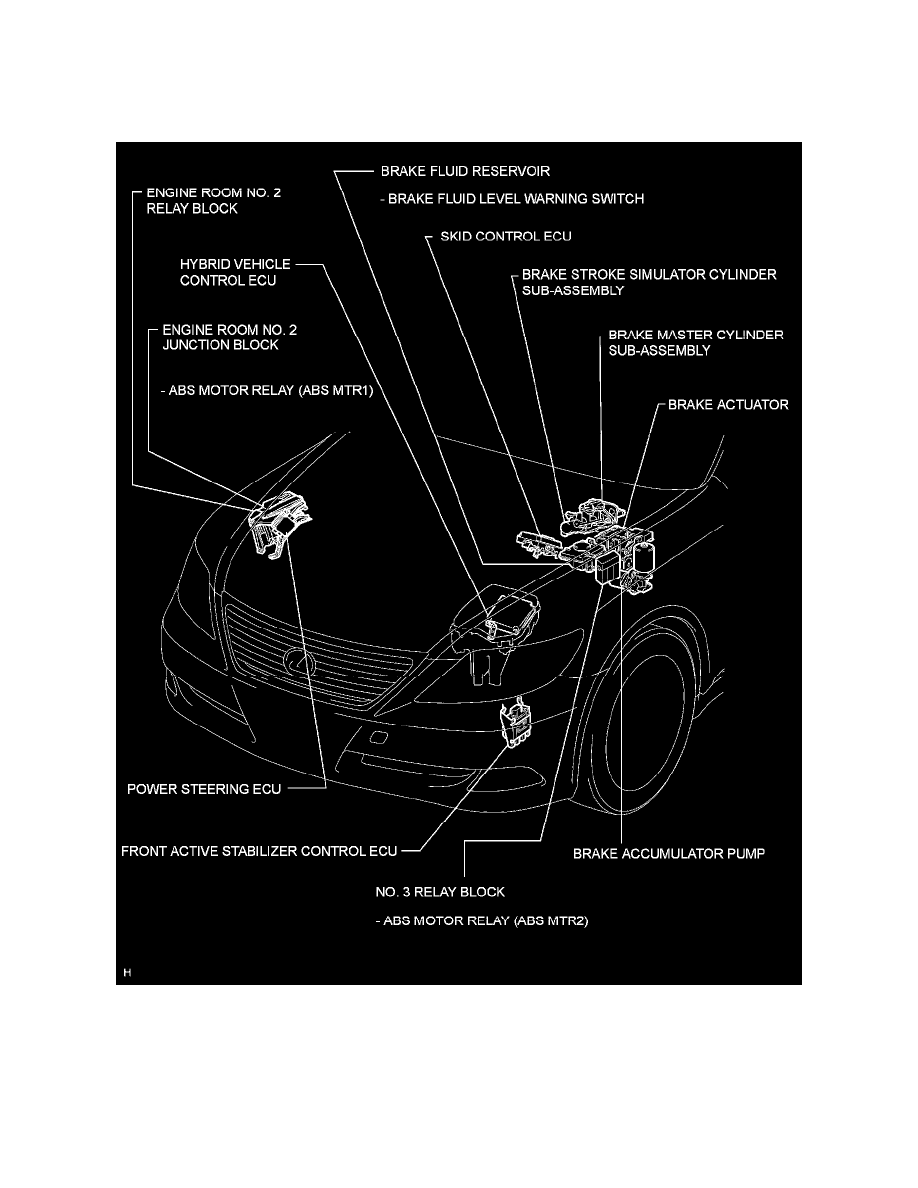

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: PARTS LOCATION

PARTS LOCATION

Brakes and Traction Control
Relays and Modules - Brakes and Traction Control
Brake Fluid Pump Relay
Component Information
Locations
