LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)

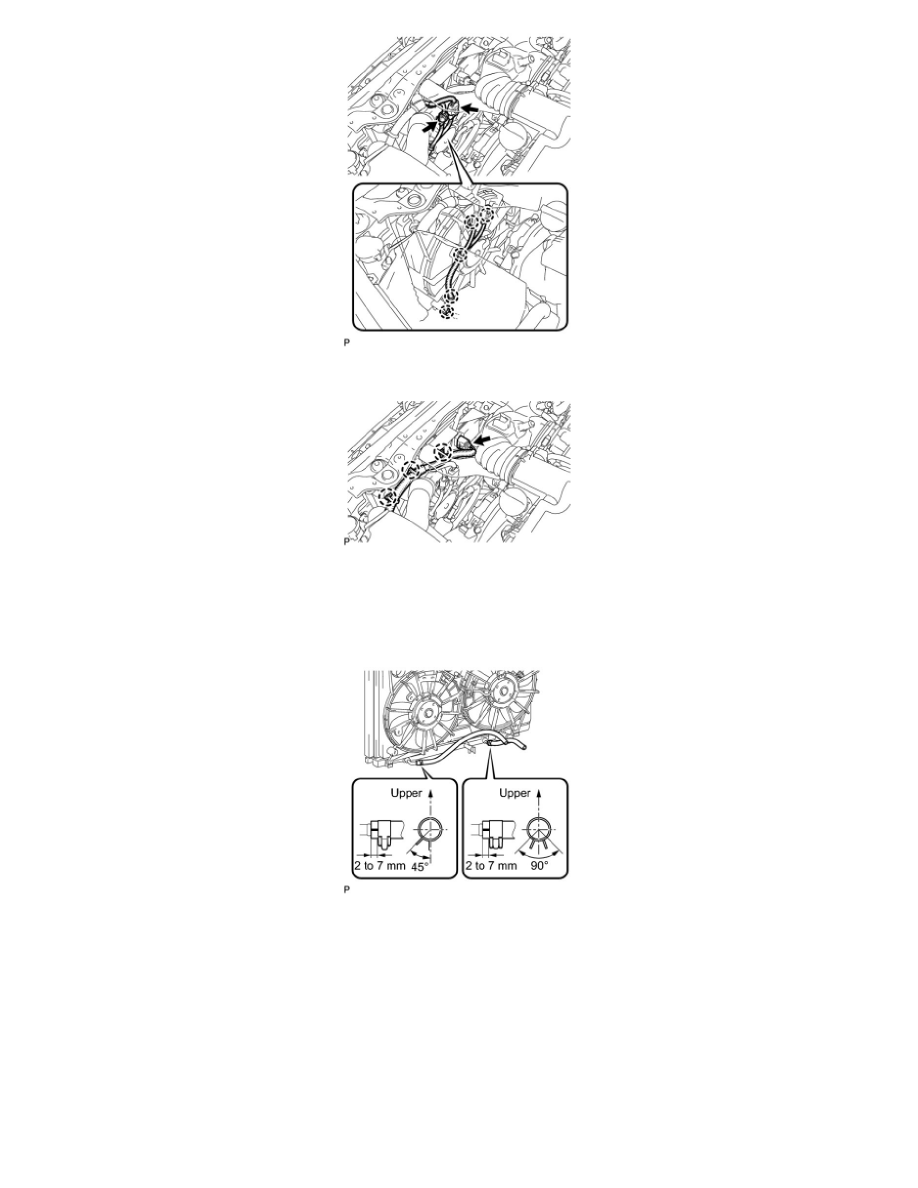

(a) Attach the 5 clamps and connect the 2 connectors.
(b) Attach the 3 clamps and connect the ECU connector.
14. INSTALL OUTLET ENGINE ROOM ECU DUCT See: Engine/Service and Repair/Removal and Replacement/Engine Assembly/Installation
15. CONNECT OUTLET OIL COOLER HOSE
(a) Connect the hose to the radiator.
-
The direction of the hose clamp is indicated in the illustration.
-
Insert the cooler hose into the stopper. Set the hose clamp so that the clearance between the hose clamp and stopper is within 2 to 7 mm
(0.0787 to 0.276 in.).
16. CONNECT INLET OIL COOLER HOSE
(a) Connect the hose to the radiator.
HINT:
-
The direction of the hose clamp is indicated in the illustration.
-
Insert the cooler hose into the stopper. Set the hose clamp so that the clearance between the hose clamp and stopper is within 2 to 7 mm
(0.0787 to 0.276 in.).
17. INSTALL NO. 2 RADIATOR HOSE
