LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-1067003.png)
^

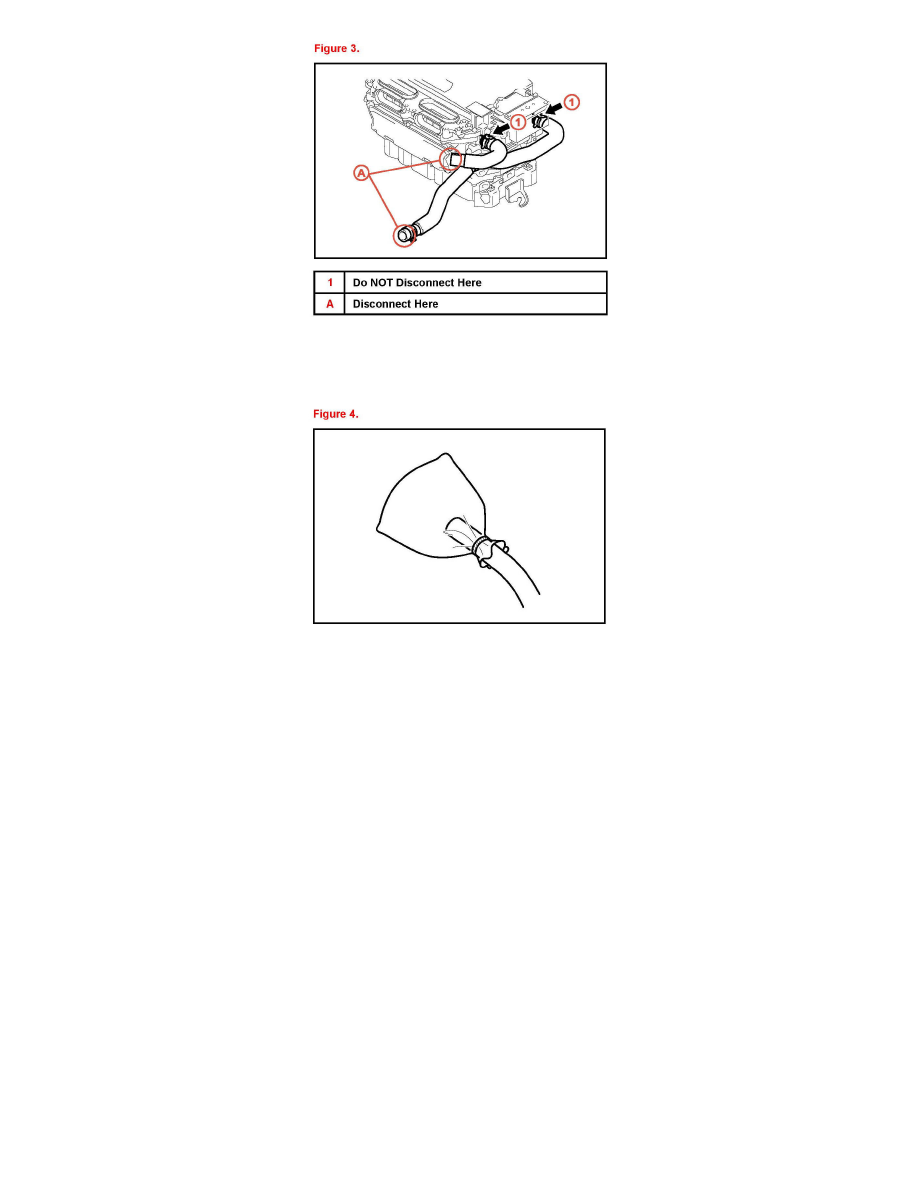

Disconnect the coolant hoses at the reservoir tank and coolant pipe locations (A) shown in Figure 3.
Replacement inverter assemblies are shipped with these hoses pre-installed so removal of the inverter side of the hose is NOT necessary.
^
Place and secure plastic bags around the ends of the hoses (A) to prevent coolant from spilling.
NOTE
Refer to the Technical Information System (TIS), applicable model year LS 600h Repair Manual for complete disassembly and reassembly
procedures.
