LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-3461001.png)
Dome Lamp: Testing and Inspection
LIGHTING: REAR ROOM LIGHT ASSEMBLY: INSPECTION
INSPECTION

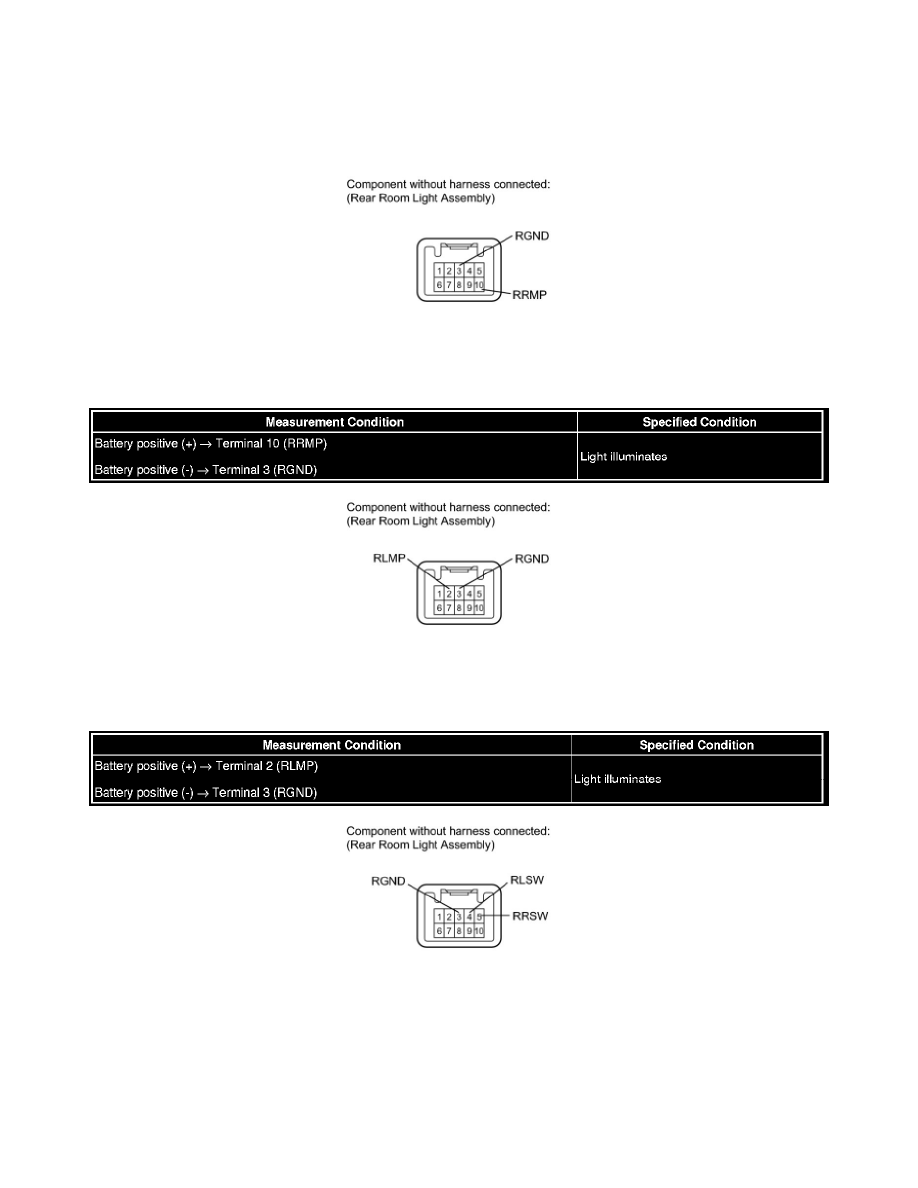

1. INSPECT REAR ROOM LIGHT ASSEMBLY
(a) Inspection the rear room light RH.
(1) Apply battery voltage to the connector, and check the LED illumination condition.
OK:
(b) Inspection the rear room light LH.
(1) Apply battery voltage to the connector, and check the LED illumination condition.
OK:
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
