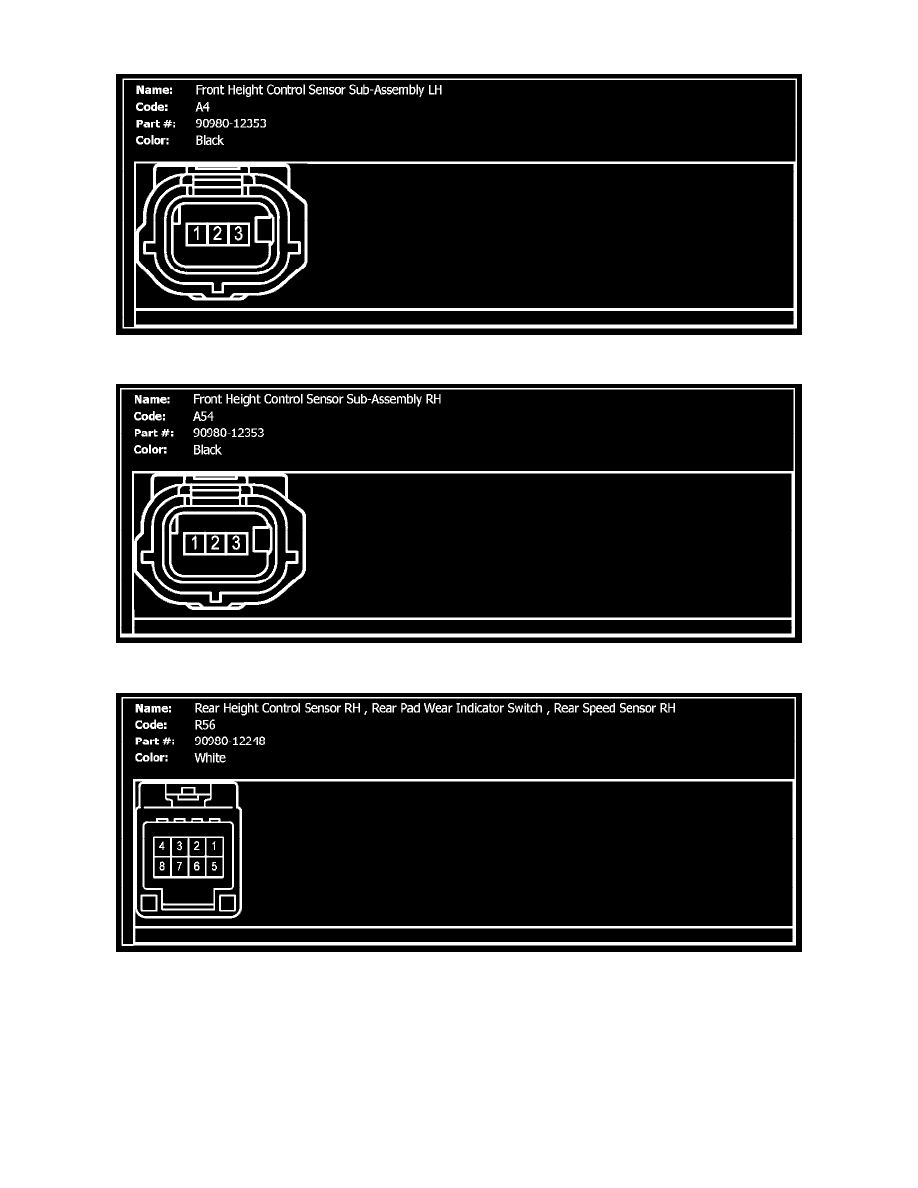

Headlamp Alignment Sensor: Diagrams

A4 (Front Height Control Sensor Sub-Assembly LH)

A54 (Front Height Control Sensor Sub-Assembly RH)

R56 (Rear Height Control Sensor RH, Rear Pad Wear Indicator Switch, Rear Speed Sensor RH)
