LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-3527001.png)
Map Light: Testing and Inspection
LIGHTING: MAP LIGHT ASSEMBLY: ON-VEHICLE INSPECTION
ON-VEHICLE INSPECTION

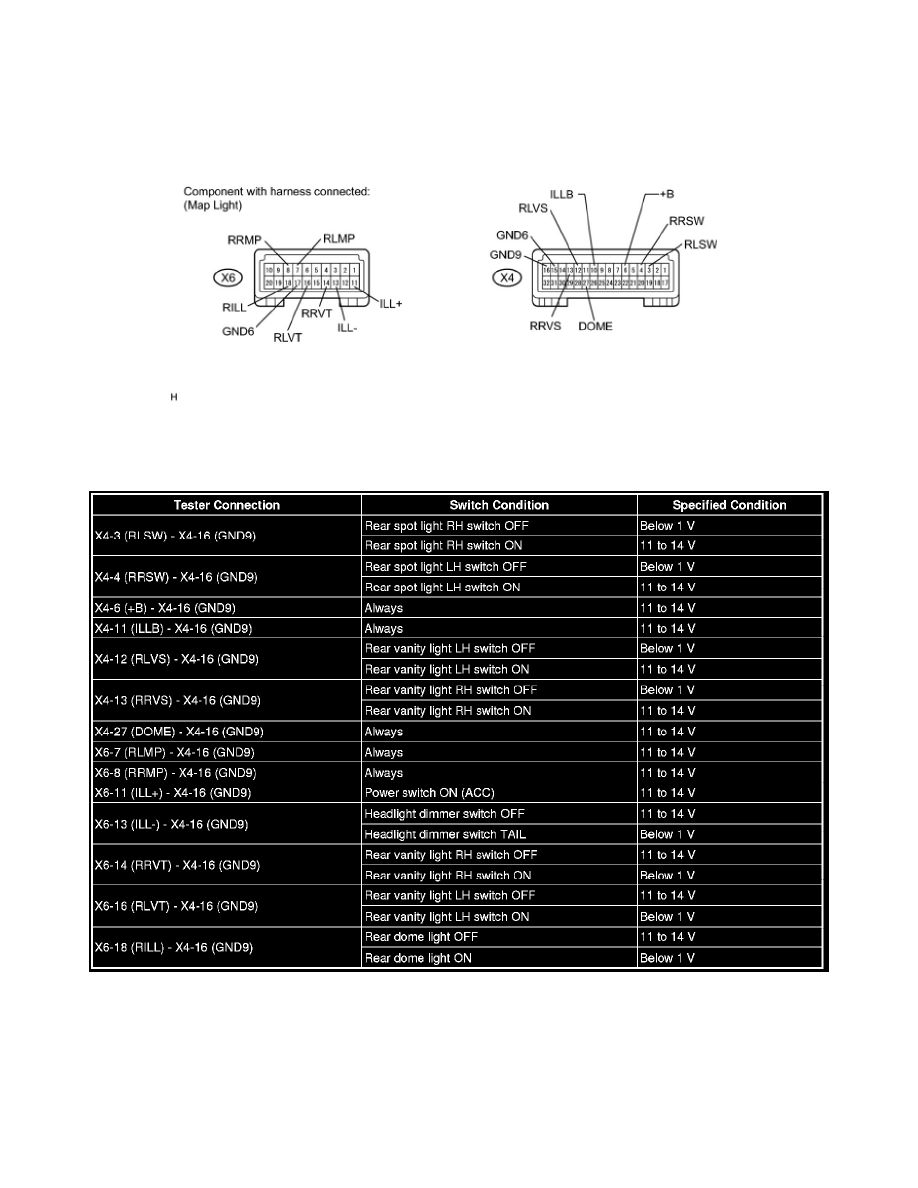

1. INSPECT MAP LIGHT ASSEMBLY
(a) Remove the map light with connecting connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
