LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-1462001.png)
Fuel Injector: Electrical Specifications
Measure the resistance according to the value(s) in the table below.
Standard resistance:
Note
If the resistance is not as specified, replace the injector.

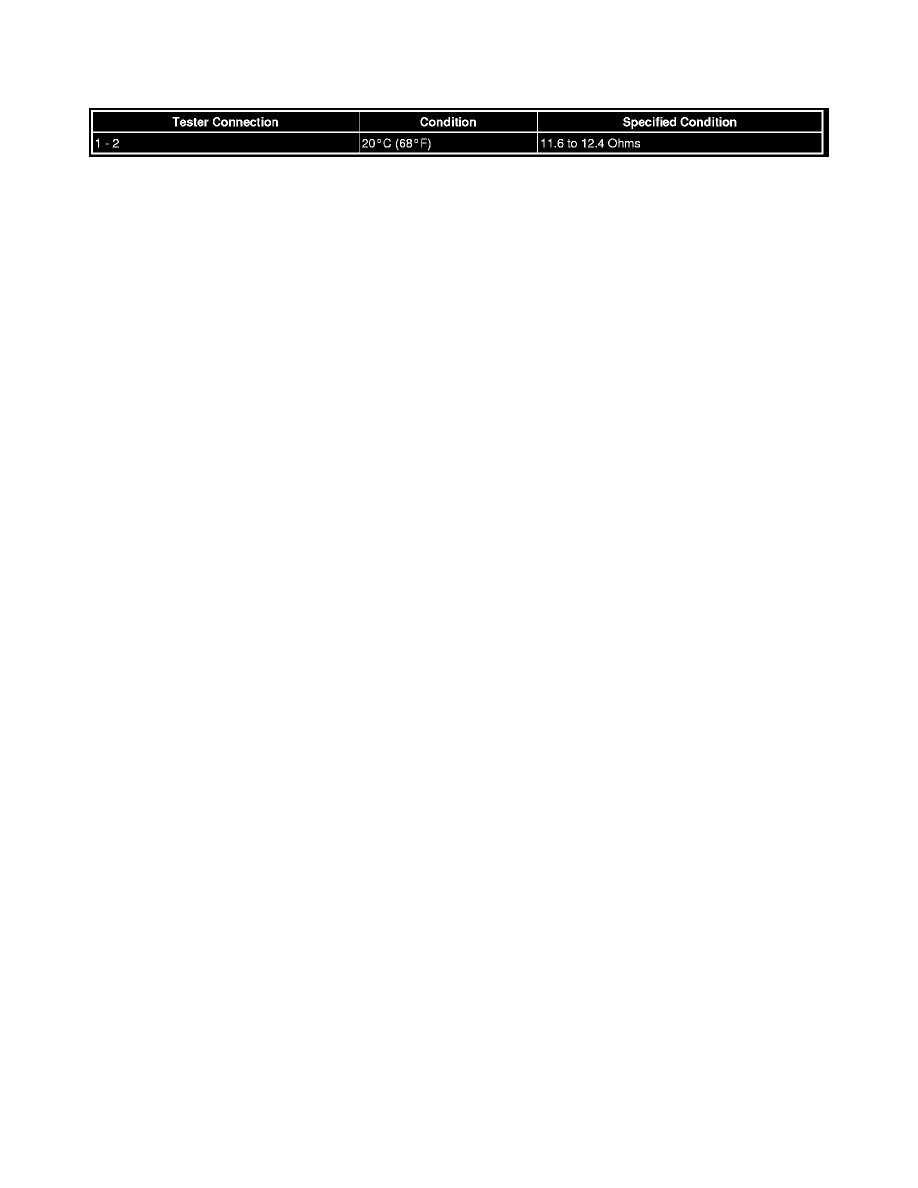

Fuel Injector (for port injection)
Standard resistance
Tester Connection
Condition ............................................................................................................................................................................................. Specified Condition
1 - 2
20°C (68°F) ........................................................................................................................................................................................... 11.6 to 12.4 Ohms
Fuel Injector (for Direct injection)
Standard resistance
Tester Connection
Condition ............................................................................................................................................................................................. Specified Condition
1 - 2
20°C (68°F) ........................................................................................................................................................................................... 2.01 to 2.31 Ohms
