LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-2619027.png)

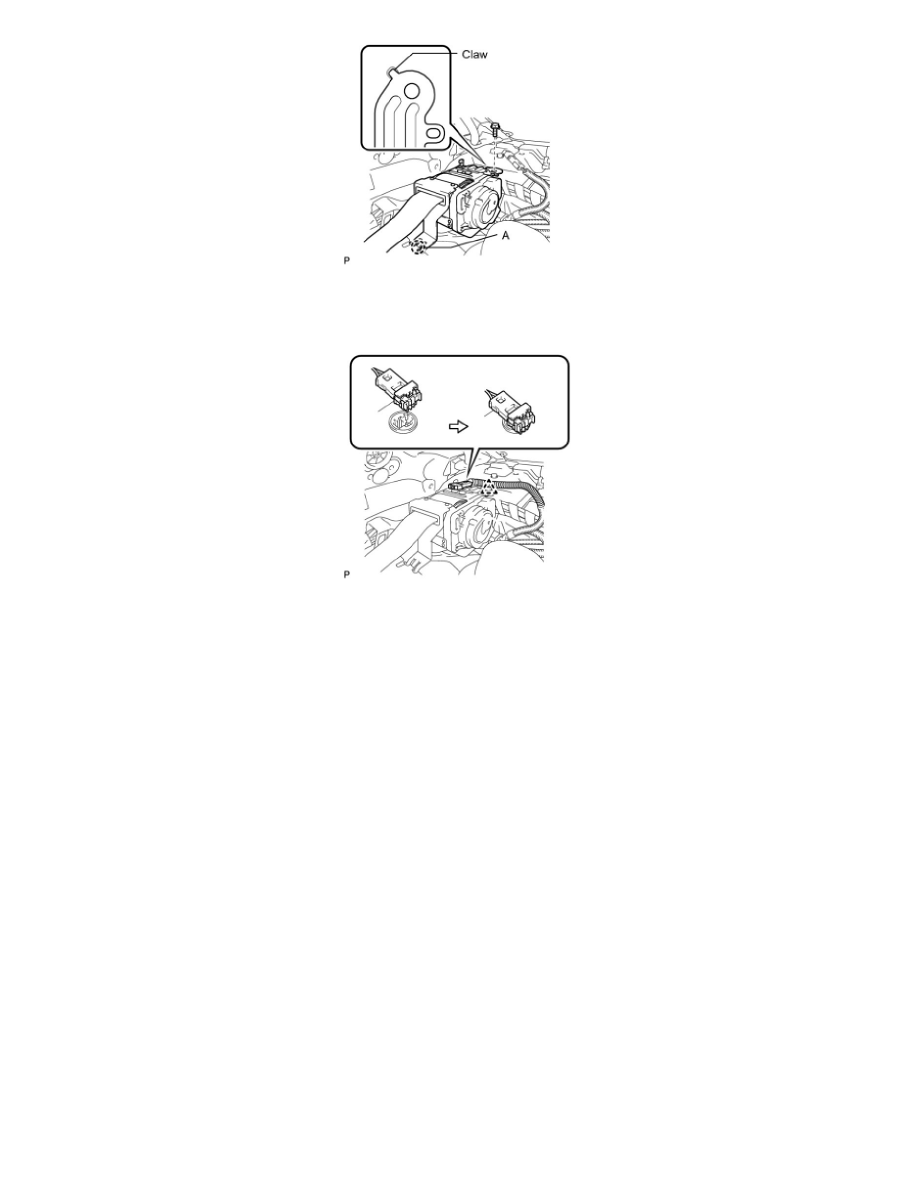

(a) Insert the claw of the retractor (a) into the hole.
(b) Align the seat belt positioning hole with the claw and install the retractor of the seat belt with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
(c) Connect the pretensioner connector, as shown in the illustration.
4. INSTALL REAR NO. 4 AIR DUCT (w/ Rear Cooler) See: Heating and Air Conditioning/Housing Assembly HVAC/Service and Repair/Air
Conditioning Unit (for Rear Side)/Installation
5. INSTALL REAR NO. 5 AIR DUCT (w/ Rear Cooler) See: Heating and Air Conditioning/Housing Assembly HVAC/Service and Repair/Air
Conditioning Unit (for Rear Side)/Installation
6. INSTALL ROOF SIDE NO. 2 AIR DUCT LH (w/ Rear Cooler) See: Heating and Air Conditioning/Housing Assembly HVAC/Service and
Repair/Air Conditioning Unit (for Rear Side)/Installation
7. INSTALL ROOF SIDE NO. 2 AIR DUCT RH (w/ Rear Cooler) See: Heating and Air Conditioning/Housing Assembly HVAC/Service and
Repair/Air Conditioning Unit (for Rear Side)/Installation
8. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY See: Windows and Glass/Windows/Window Shade/Service and Repair/Rear Sunshade
Assembly/Installation
9. INSTALL INNER ROOF SIDE GARNISH LH See: Body and Frame/Interior Moulding / Trim/Headliner/Service and Repair/Installation
10. INSTALL INNER ROOF SIDE GARNISH RH See: Body and Frame/Interior Moulding / Trim/Headliner/Service and Repair/Installation
11. INSTALL REAR SEAT SIDE GARNISH LH See: Body and Frame/Interior Moulding / Trim/Headliner/Service and Repair/Installation
12. INSTALL REAR SEAT SIDE GARNISH RH See: Body and Frame/Interior Moulding / Trim/Headliner/Service and Repair/Installation
