LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
2. INSTALL HEIGHT ADJUSTABLE ANCHOR MOTOR

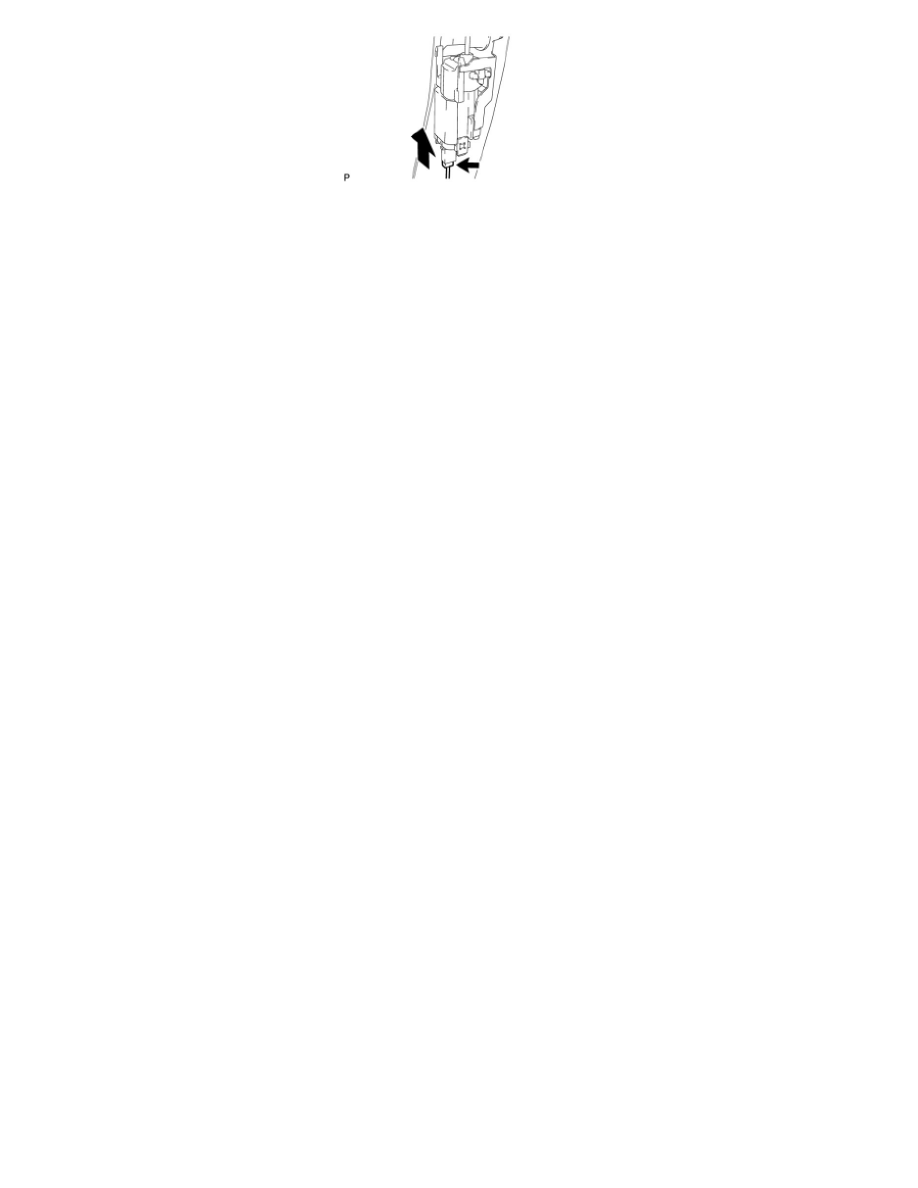

(a) Insert the motor into the adjuster as shown in the illustration.
(b) Install the connector.
3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY
(a) Install the front seat outer belt See: Front Seat Outer Belt Assembly/Installation.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected See: Testing and
Inspection/Programming and Relearning/Repair Instruction - Initialization.
5. INSTALL BATTERY SERVICE HOLE COVER LH See: Starting and Charging/Battery
6. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Components
SEAT BELT: SHOULDER BELT ANCHORAGE SWITCH: COMPONENTS
COMPONENTS
