LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-619003.png)

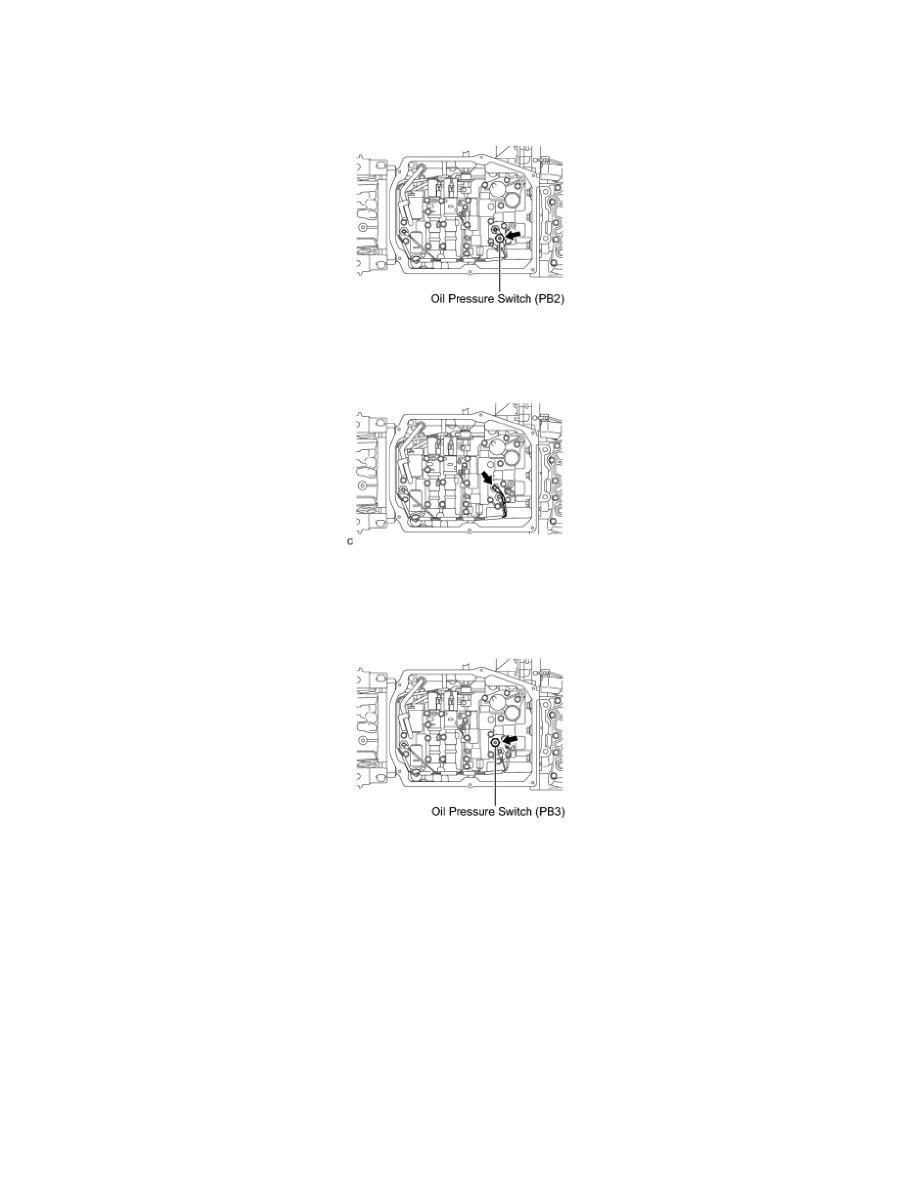

(1) Disconnect the oil pressure switch connector.
NOTE: When disconnecting the oil pressure switch connector, do not bend the terminals.
(2) Remove the oil pressure switch (PB2) from the valve body.
(c) Remove the oil pressure switch (PB3).
(1) Disconnect the oil pressure switch connector.
NOTE: When disconnecting the oil pressure switch connector, do not bend the terminals.
(2) Remove the oil pressure switch (PB3) from the valve body.
