LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)
_hybrid/Page-2024009.png)

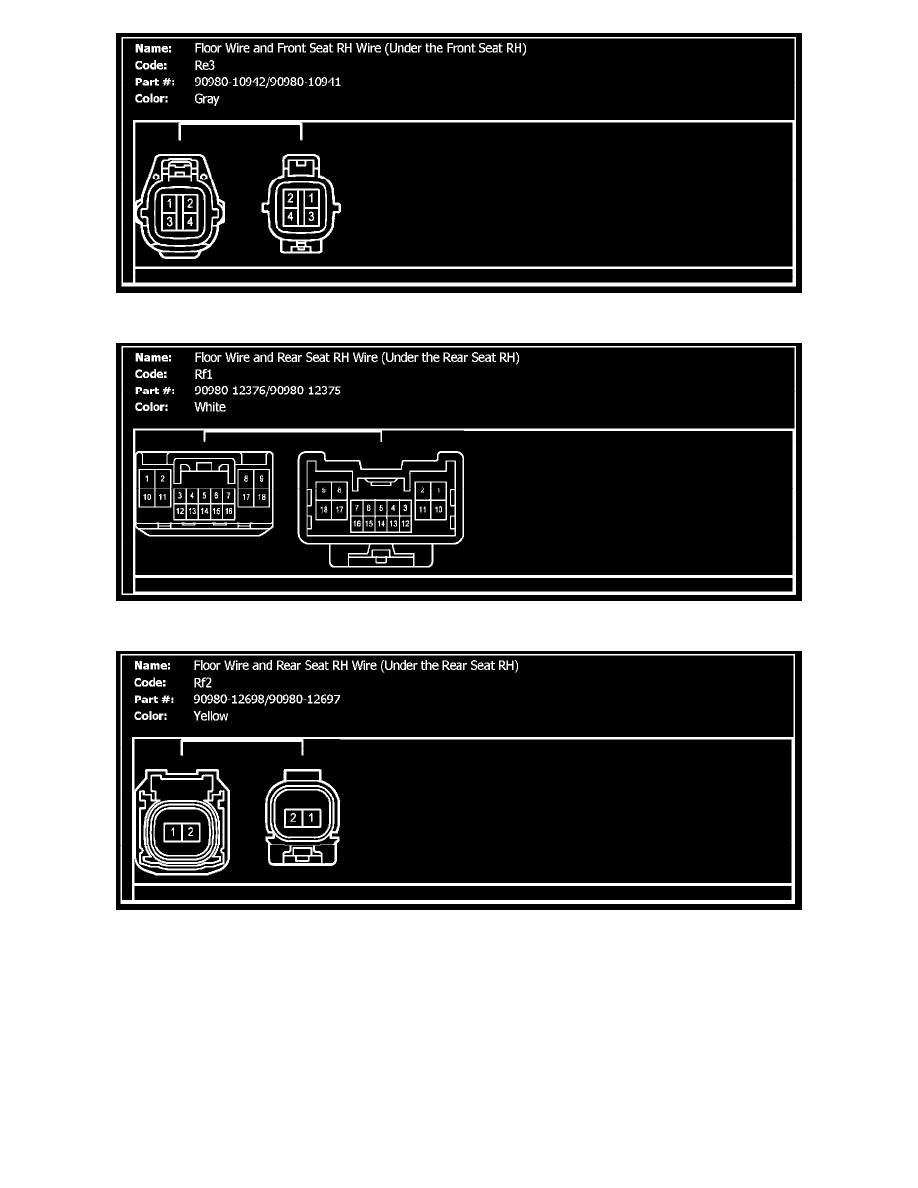

Re3 (Floor Wire And Front Seat RH Wire (Under The Front Seat RH))
Rf1 (Floor Wire And Rear Seat RH Wire (Under The Rear Seat RH))
Rf2 (Floor Wire And Rear Seat RH Wire (Under The Rear Seat RH))
Lexus Workshop Service and Repair Manuals
Door Rear Wire|Page 8491 >
< Door Rear Wire|Page 8489
Page 9
