Page 38

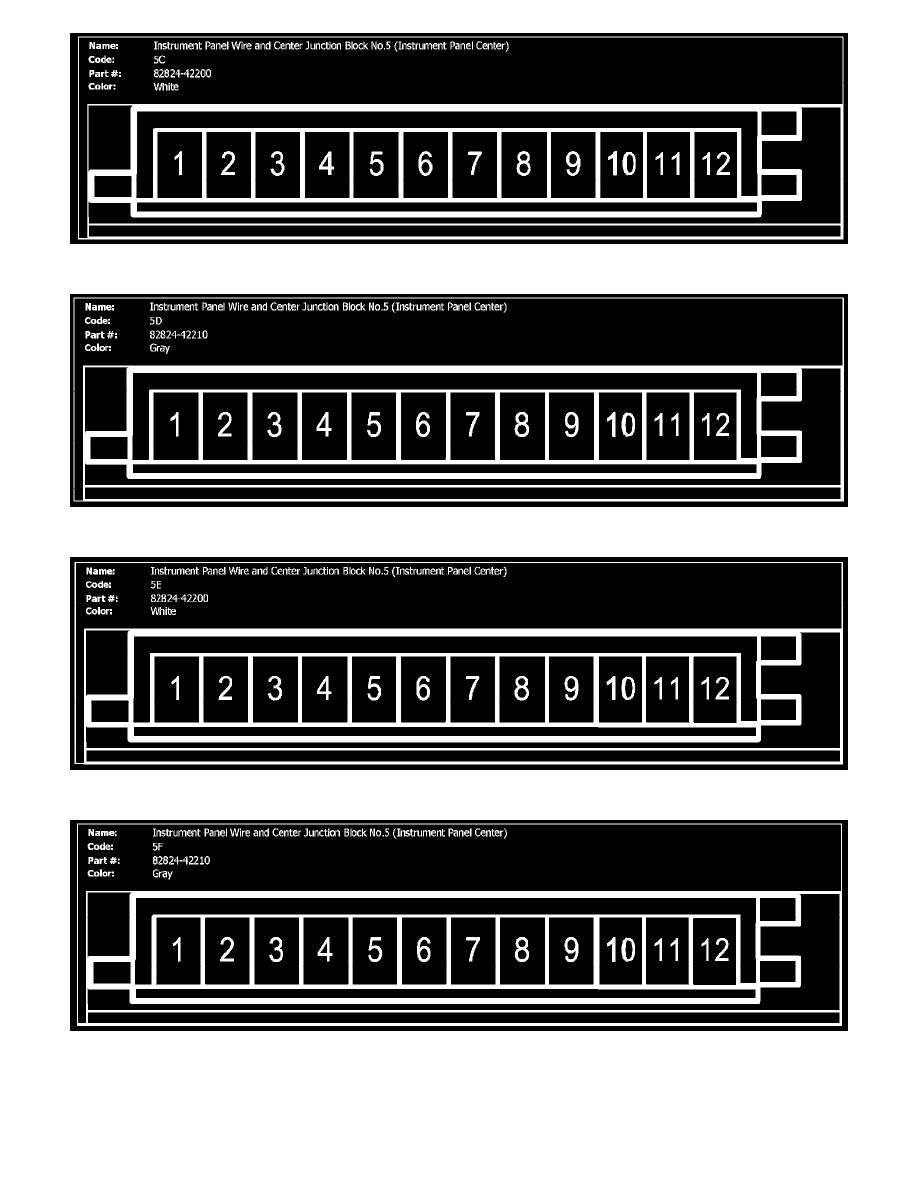

5C (Instrument Panel Wire And Center Junction Block No.5 (Instrument Panel Center))

5D (Instrument Panel Wire And Center Junction Block No.5 (Instrument Panel Center))

5E (Instrument Panel Wire And Center Junction Block No.5 (Instrument Panel Center))

5F (Instrument Panel Wire And Center Junction Block No.5 (Instrument Panel Center))
