Propeller Shaft Assembly|Page 6908 > < Propeller Shaft Assembly|Page 6906

LS 600h V8-5.0L (2UR-FSE) Hybrid (2008)

Page 4
background image

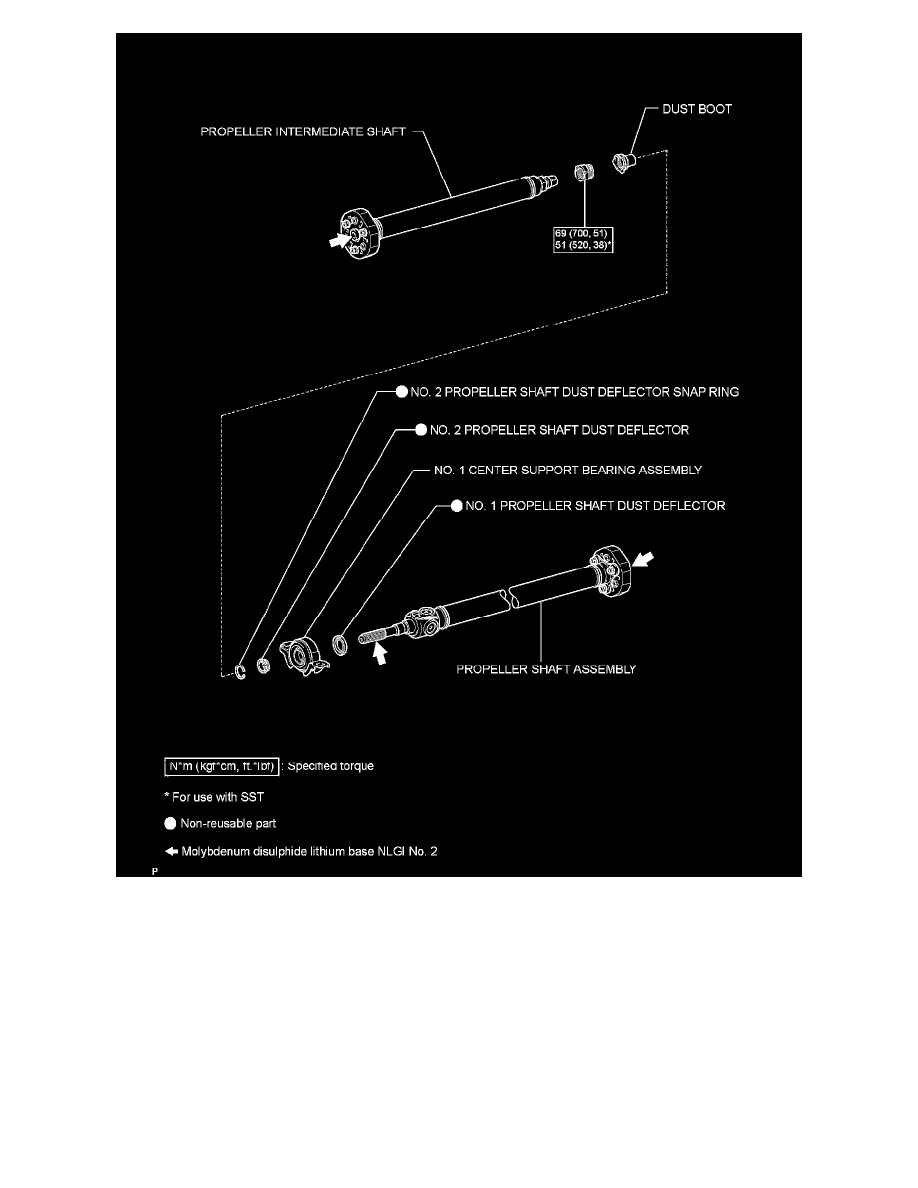

Removal

PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE FRONT EXHAUST PIPE ASSEMBLY

(a) Remove the exhaust pipe See: Engine, Cooling and Exhaust/Exhaust System/Exhaust Pipe/Service and Repair/Removal.

2. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR

Propeller Shaft Assembly|Page 6908 > < Propeller Shaft Assembly|Page 6906
