LX 470 V8-4.7L (2UZ-FE) (1999)
/Page-475001.png)
Power Window Switch: Testing and Inspection

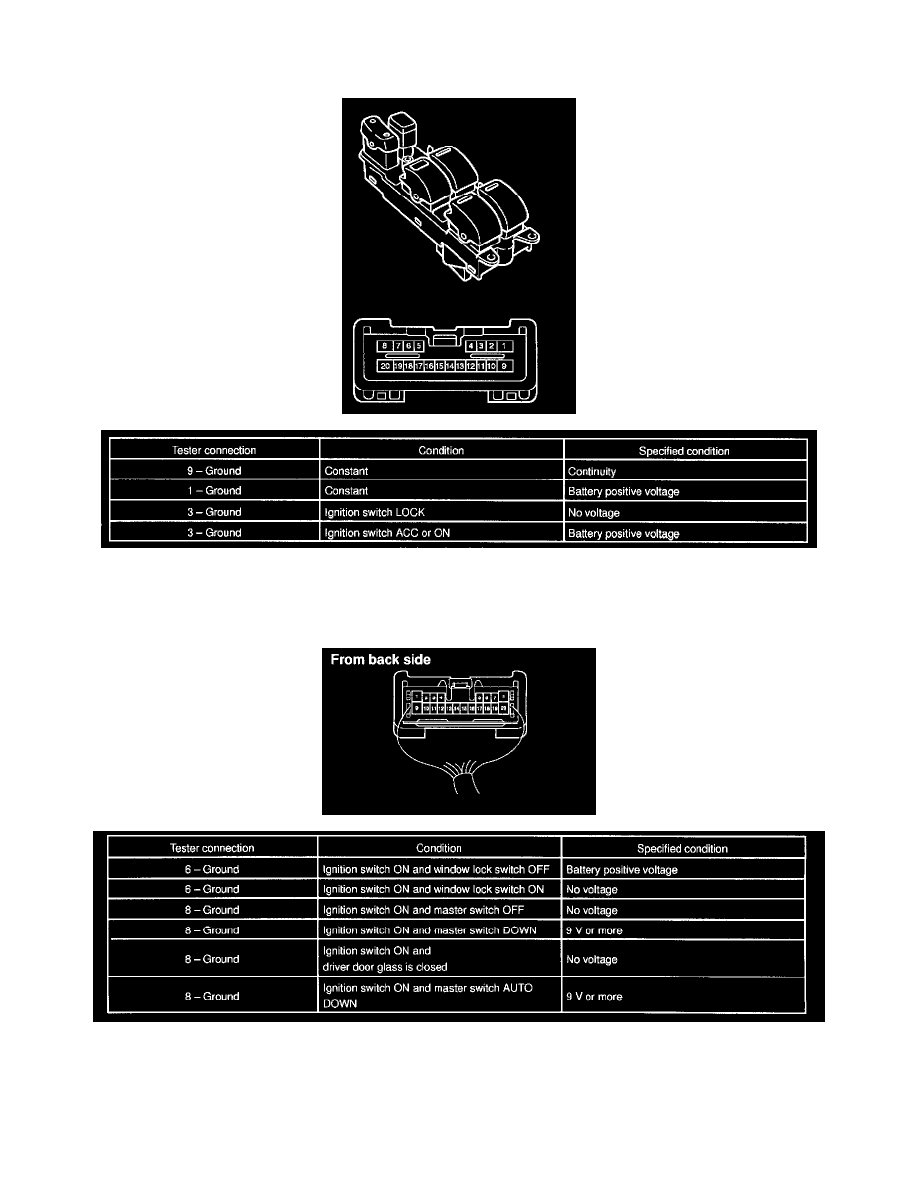

Power Window Switch (Master Switch)
INSPECT POWER WINDOW MASTER SWITCH CIRCUIT
Connector disconnected:
Disconnect the connectors from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.
