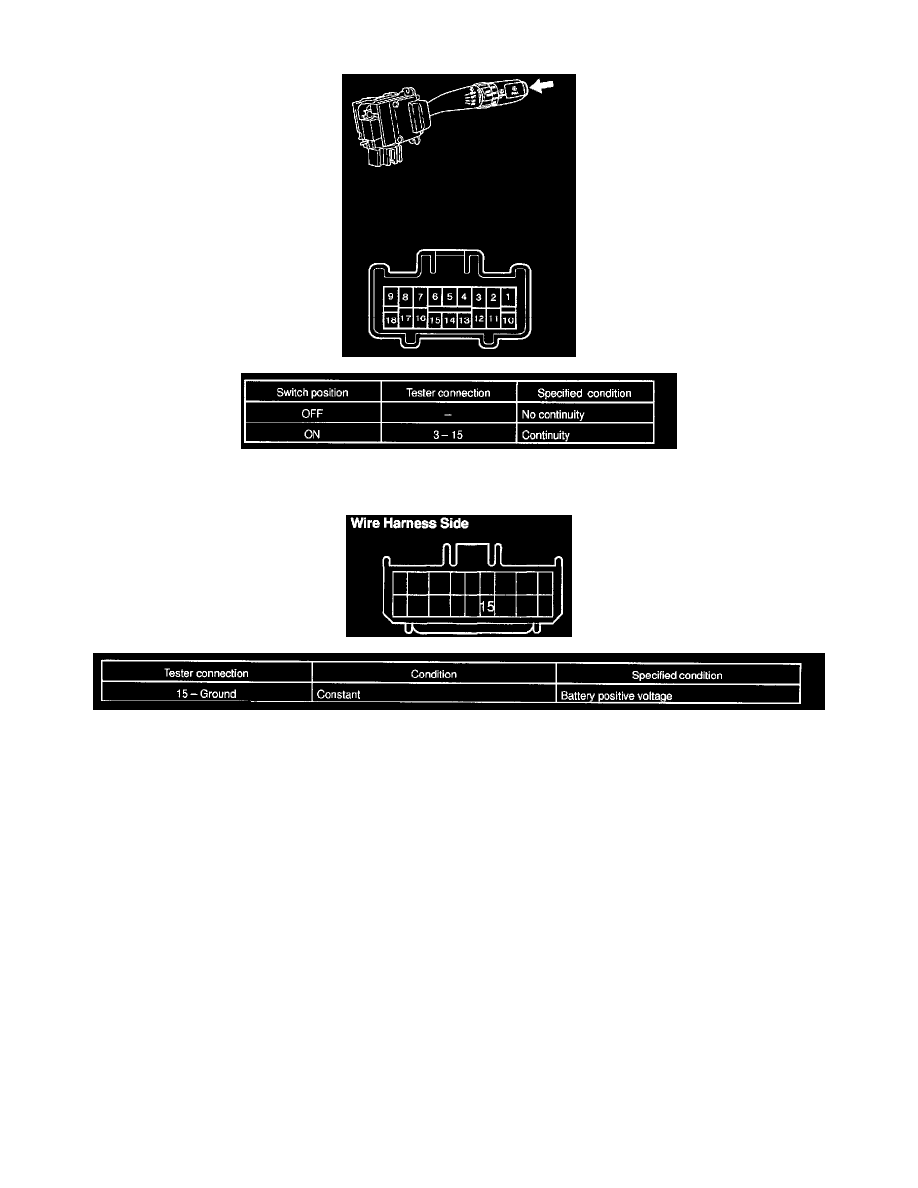

Headlamp Washer Switch: Testing and Inspection

INSPECT HEADLIGHT CLEANER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

INSPECT HEADLIGHT CLEANER SWITCH CIRCUIT
Disconnect the switch connector and inspect the connector on wire harness side.
If circuit is not as specified, inspect the circuits connected to other parts.
