LX 570 V8-5.7L (3UR-FE) (2010)

  • Heating and Air Conditioning
  • Air Door, HVAC
  • Air Door Actuator / Motor, HVAC
  • Component Information
  • Locations

Page 1
background image

Air Door Actuator / Motor: Locations

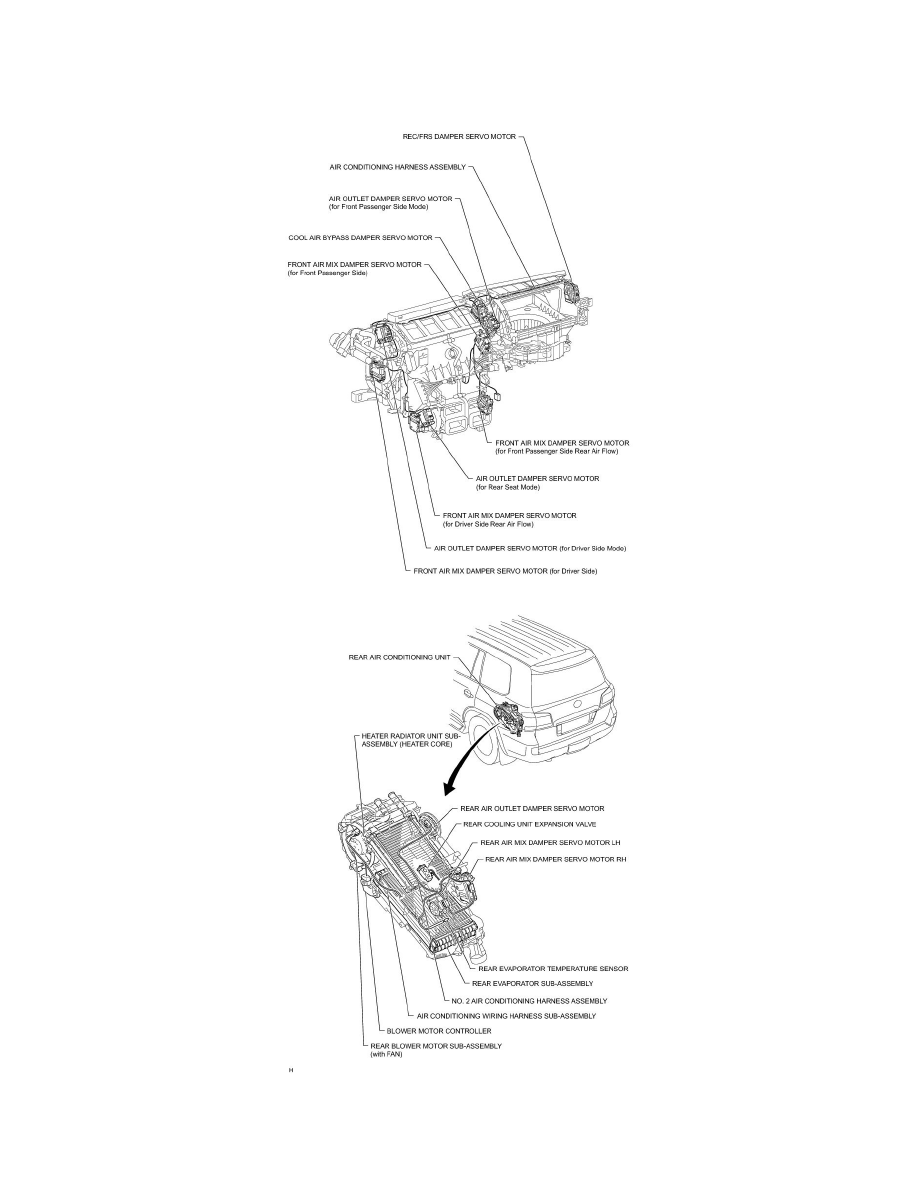

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: PARTS LOCATION
