LX 570 V8-5.7L (3UR-FE) (2010)

  • Transmission and Drivetrain
  • Actuators and Solenoids - Transmission and Drivetrain
  • Actuators and Solenoids - A/T
  • Shift Solenoid, A/T
  • Component Information
  • Locations

Page 1
background image

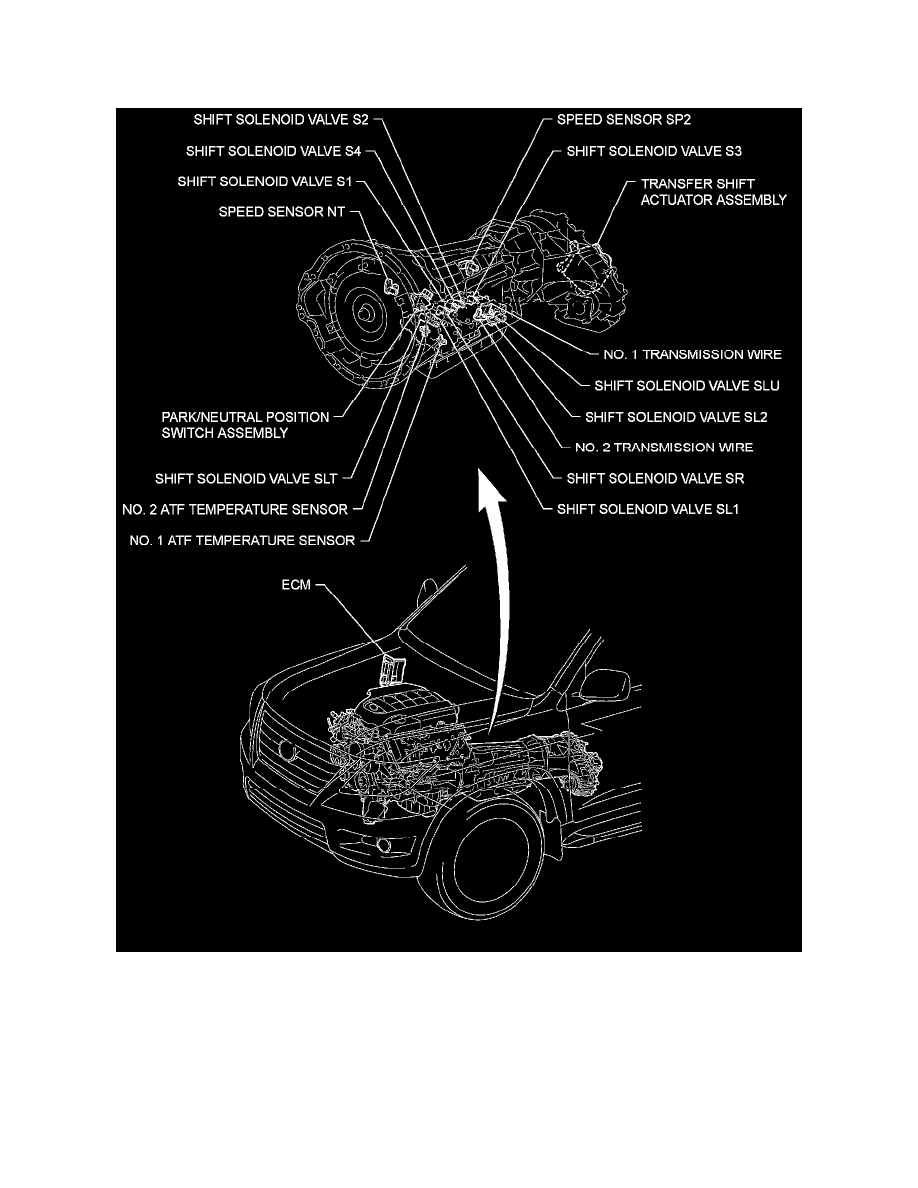

Shift Solenoid: Locations

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION

  • Transmission and Drivetrain
  • Actuators and Solenoids - Transmission and Drivetrain
  • Actuators and Solenoids - A/T
  • Shift Solenoid, A/T
  • Component Information
  • Locations
