Fuse: Locations

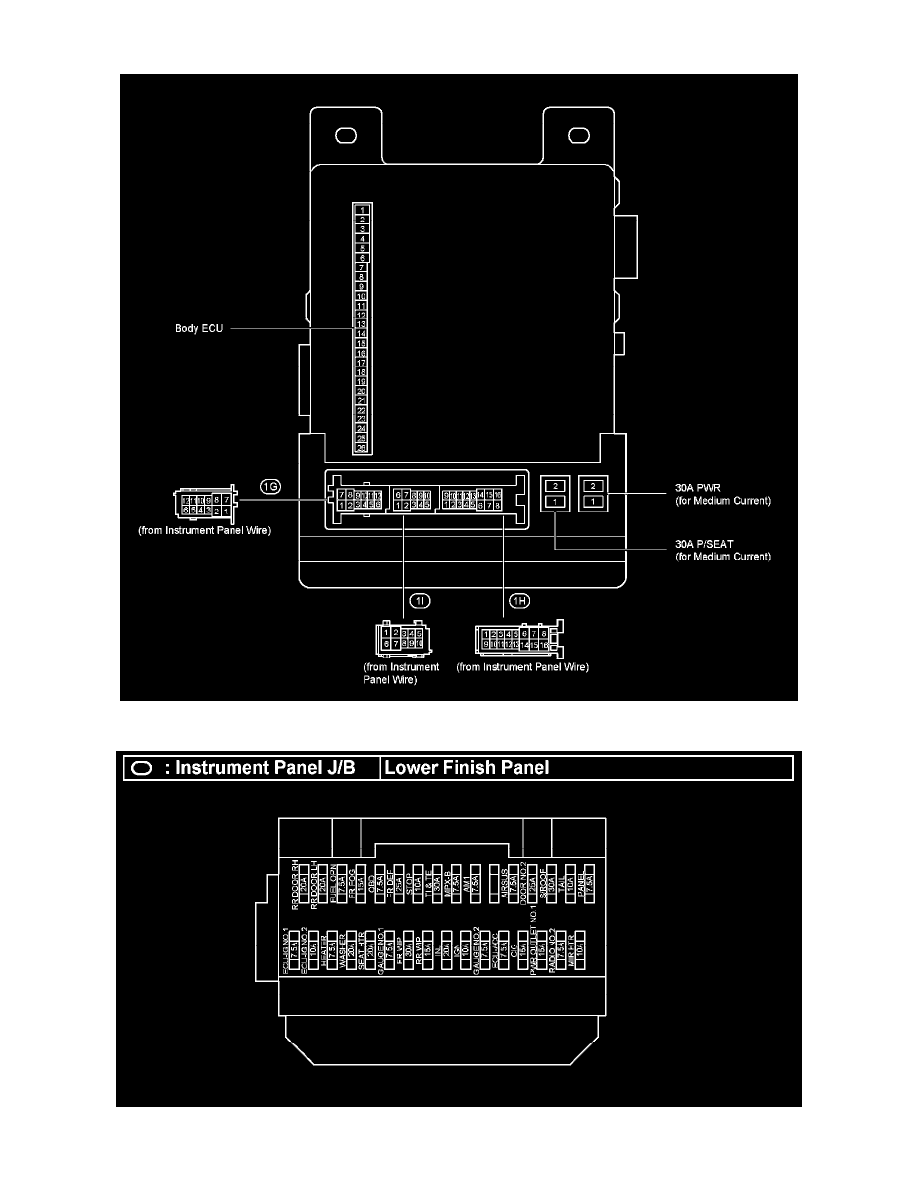

Instrument Panel J/B - Lower Finish Panel

Instrument Panel J/B - Lower Finish Panel
