Brake Pad: Technical Service Bulletins
Brakes - MIL On/DTCs C1341-C1344 After Pad Replacement
BRAKES
BR006-06
Title:
M.I.L. "ON" DTC C1341, C1342,
C1343, OR C1344 AFTER BRAKE
PAD REPLACEMENT
Models:
'06 - '07 GS 430 & RX 400h & '07 GS 450h
December 14, 2006
Introduction
When replacing the brake pads on an ECB (Electronically Controlled Brake) system equipped vehicle, retracting the caliper's piston and installing new
brake pads may cause Diagnostic Trouble Codes (DTCs) to set the next time the brake pedal is depressed.
Use the procedure in this TSIB to check for DTCs after brake pad replacement.
Applicable Vehicles
^
2006 - 2007 model year GS 430 and RX 400h vehicles.
^
2007 model year GS 450h vehicles.

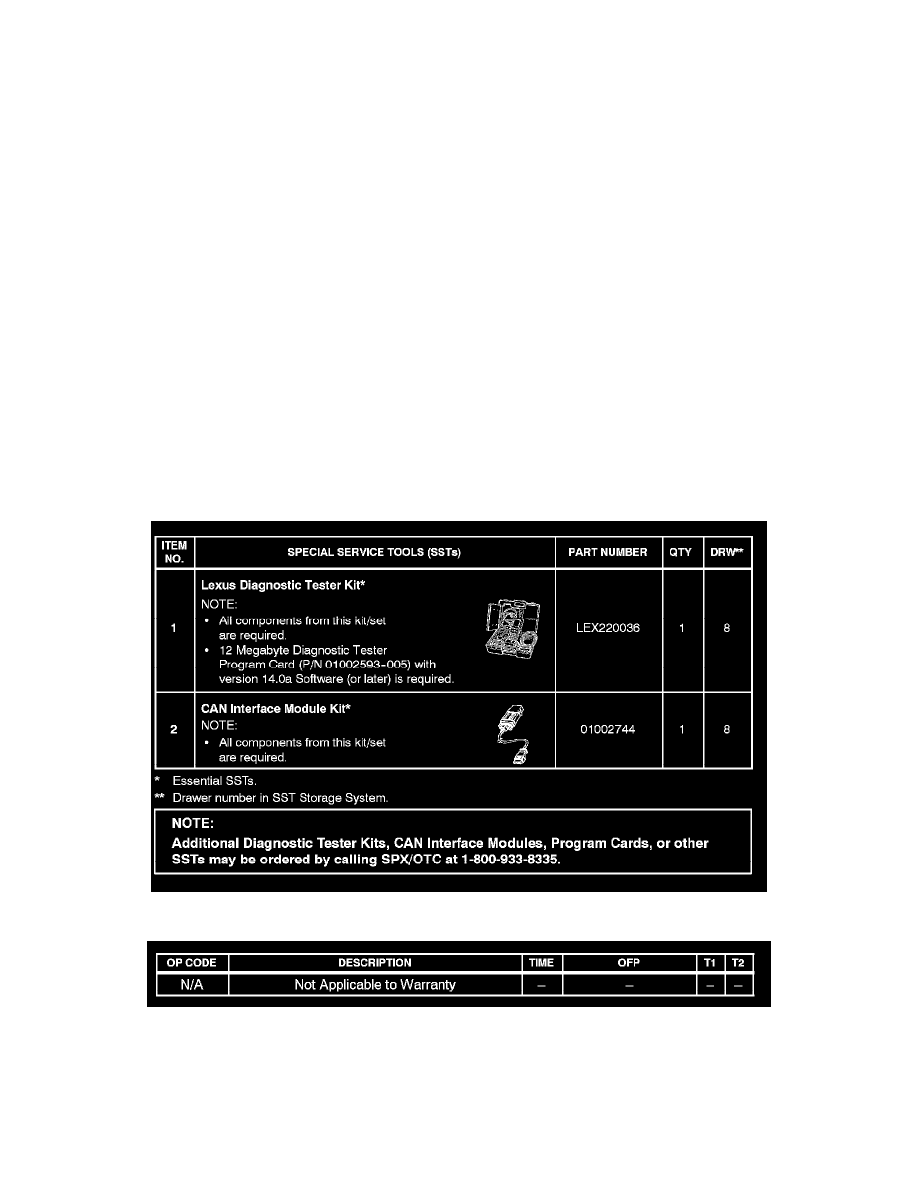

Required SSTs
Warranty Information
