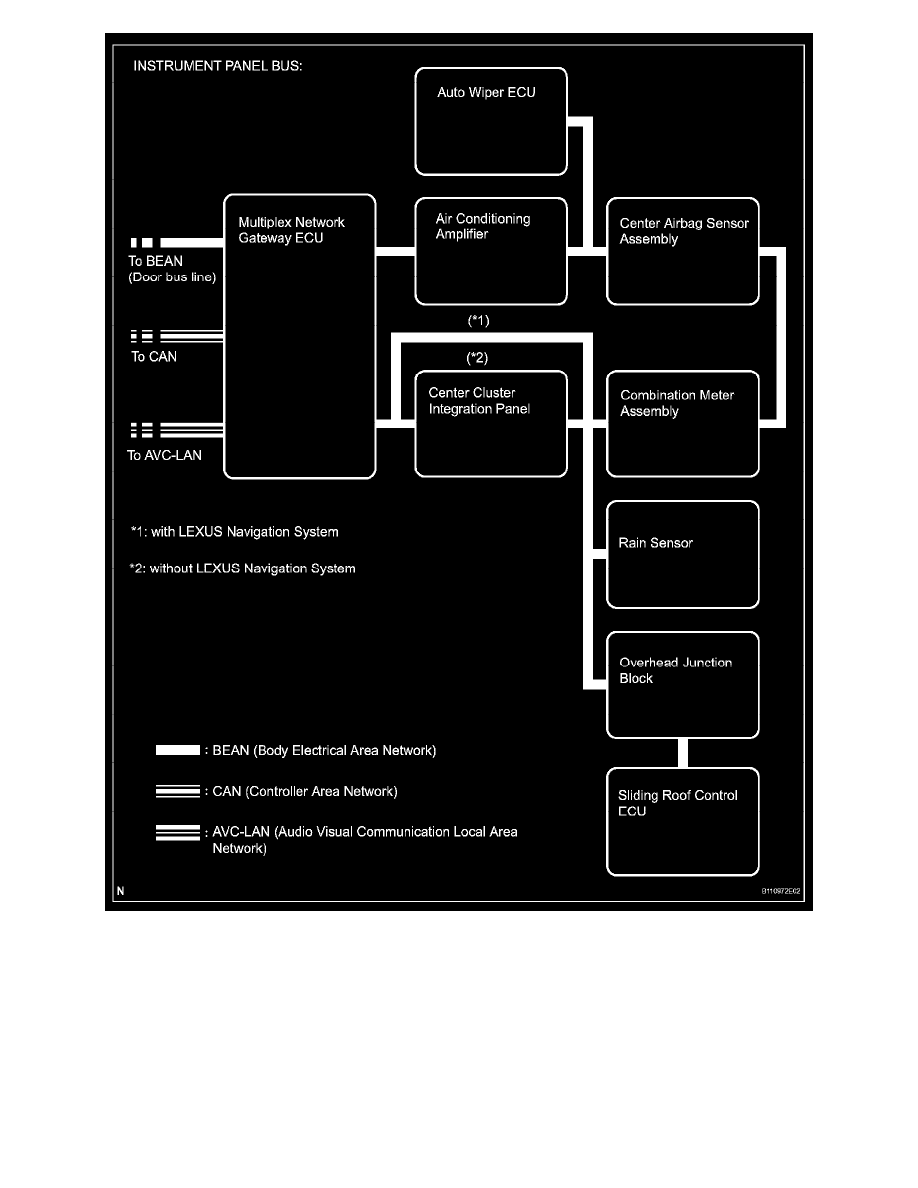

System Diagram (Part 2)

Powertrain Management
Computers and Control Systems
Information Bus / Component Information
Description and Operation / Multiplex Communication System Basics
