Backup Lamp Relay|Locations|Page 12999 > < Diagram Information and Instructions|Page 12994

RX 450h FWD V6-3.5L (2GR-FXE) Hybrid (2010)

  • Lighting and Horns
  • Relays and Modules - Lighting and Horns
  • Backup Lamp Relay
  • Component Information
  • Locations

Page 1
background image

Backup Lamp Relay: Locations

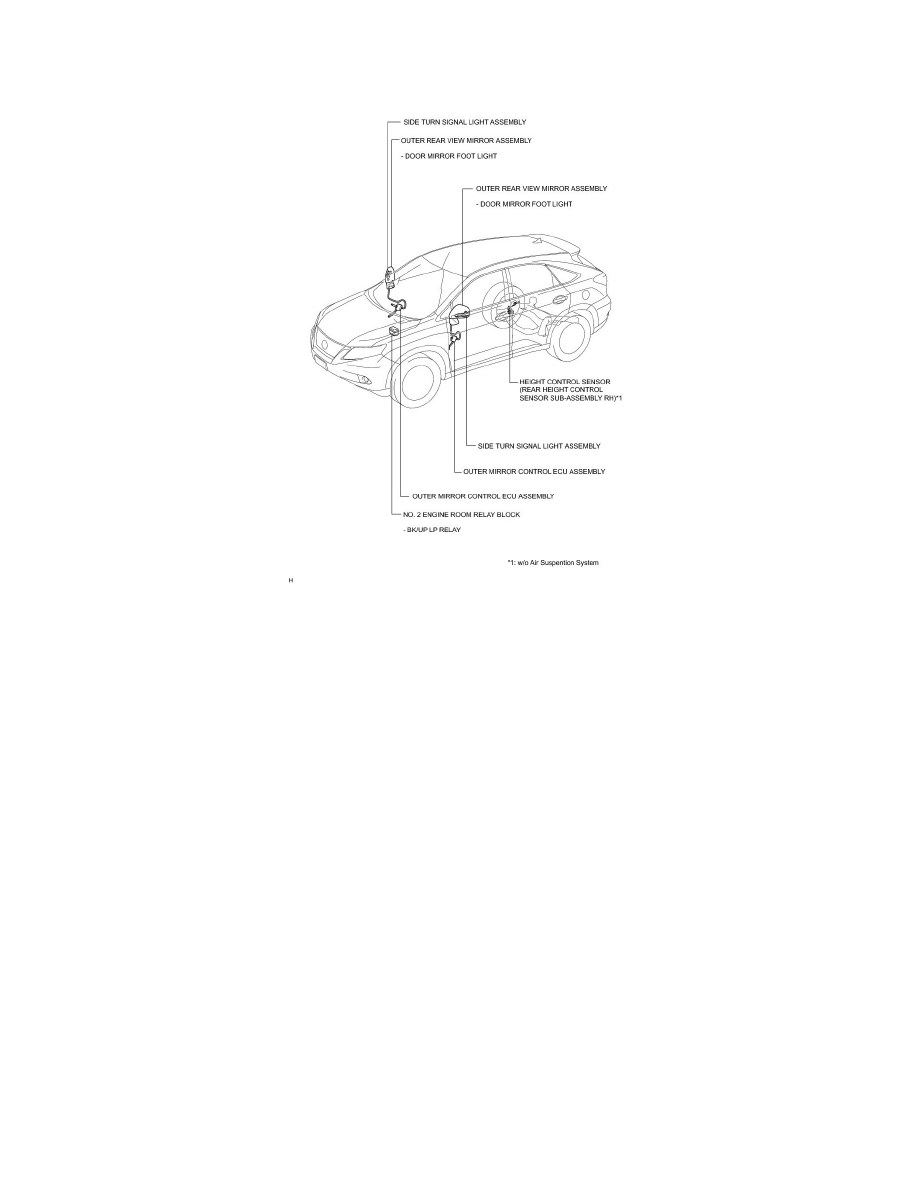

LIGHTING (EXT): LIGHTING SYSTEM: PARTS LOCATION

  • Lighting and Horns
  • Relays and Modules - Lighting and Horns
  • Backup Lamp Relay
  • Component Information
  • Locations

Backup Lamp Relay|Locations|Page 12999 > < Diagram Information and Instructions|Page 12994
