RX 450h FWD V6-3.5L (2GR-FXE) Hybrid (2010)
_hybrid/Page-3601001.png)
Trailer Lighting Relay: Testing and Inspection
Up to 08/2009
POWER OUTLETS (EXT): TOWING CONVERTER RELAY: ON-VEHICLE INSPECTION
1. INSPECT TOWING CONVERTER RELAY
HINT
Remove interior parts so that the towing converter relay can be seen.

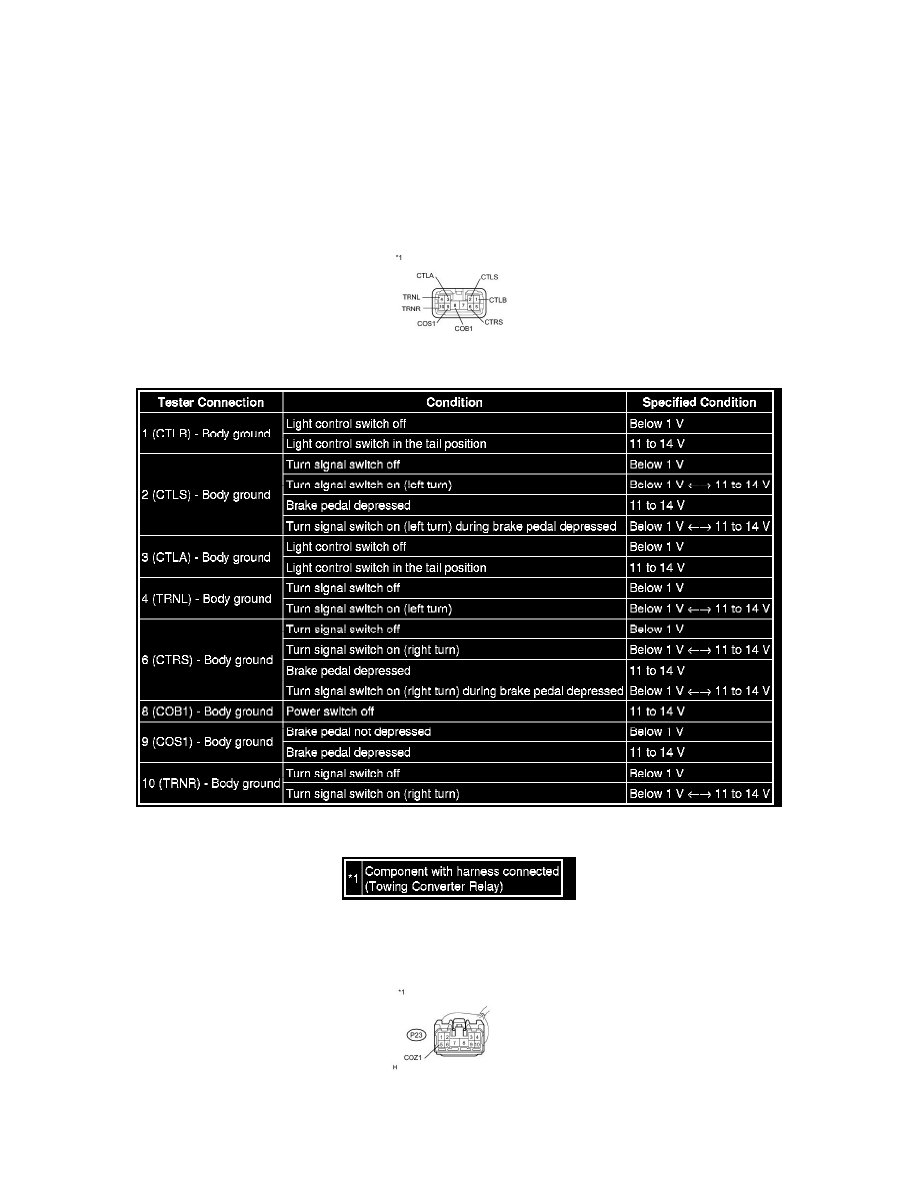

(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Text in Illustration
(b) If the result is not as specified, repair or replace the harness or connector.
(c) Disconnect the towing converter relay connector.
(d) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
