Flex Plate: Specifications
- Make
- Lincoln
- Model
- LS
- Engine
- V8-3.9L VIN A
- Year
- 2003
- Section
- Flex Plate › Specifications
Flex Plate: Specifications

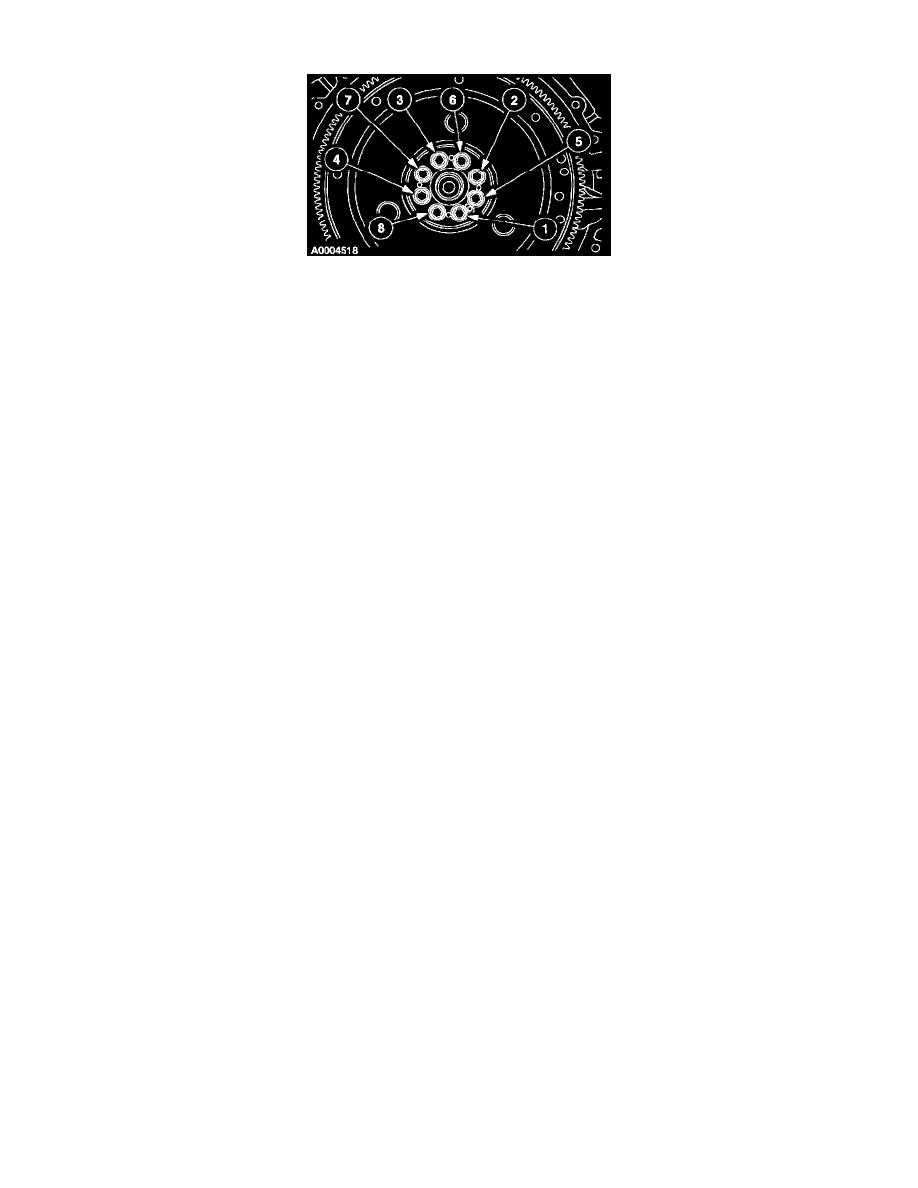

Flex Plate bolts.
Stage 1 .................................................................................................................................................................................................. 15 Nm (11 ft. lbs.)
Stage 2 ................................................................................................................................................................................................ 110 Nm (81 ft. lbs.)
Flexplate spacer nuts ................................................................................................................................................................................ 38 Nm (28 ft. lbs.)
